Produkte > SAMTEC > HTST-117-01-L-DV
HTST-117-01-L-DV

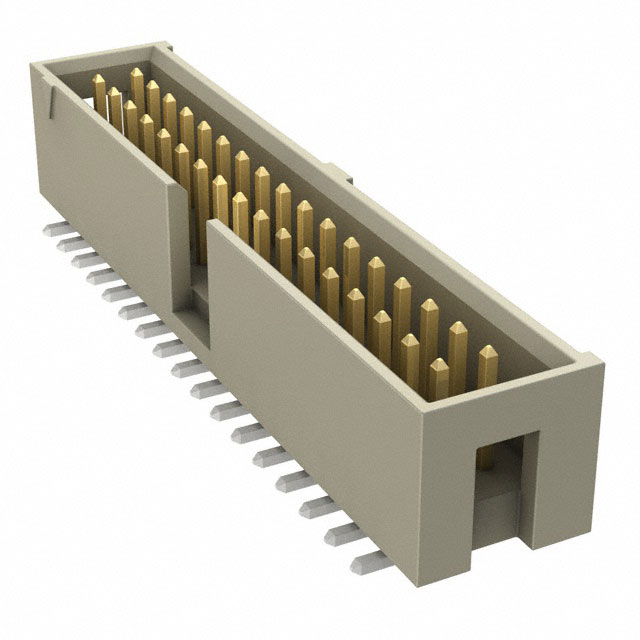

HTST-117-01-L-DV Samtec

htst-2854338.pdf Hersteller: Samtec
Headers & Wire Housings .100" High-Temp Shrouded Terminal Strip, Cable Mate
auf Bestellung 38 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+7.32 EUR
55+6.16 EUR
110+5.86 EUR
506+5.67 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details HTST-117-01-L-DV Samtec

Description: CONN HEADER SMD 34POS 2.54MM, Features: Keying Slot, Packaging: Tube, Connector Type: Header, Current Rating (Amps): 3.4A per Contact, Mounting Type: Surface Mount, Number of Positions: 34, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Natural, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.350" (8.89mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.250" (6.35mm).

Weitere Produktangebote HTST-117-01-L-DV nach Preis ab 6.69 EUR bis 10.07 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
HTST-117-01-L-DV HTST-117-01-L-DV Hersteller : Samtec Inc. htst-1xx-01-xx-dv-xx-x-xx-mkt.pdf Description: CONN HEADER SMD 34POS 2.54MM
Features: Keying Slot
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 3.4A per Contact
Mounting Type: Surface Mount
Number of Positions: 34
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.350" (8.89mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.250" (6.35mm)
auf Bestellung 239 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
2+10.07 EUR
10+8.20 EUR
100+6.69 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
