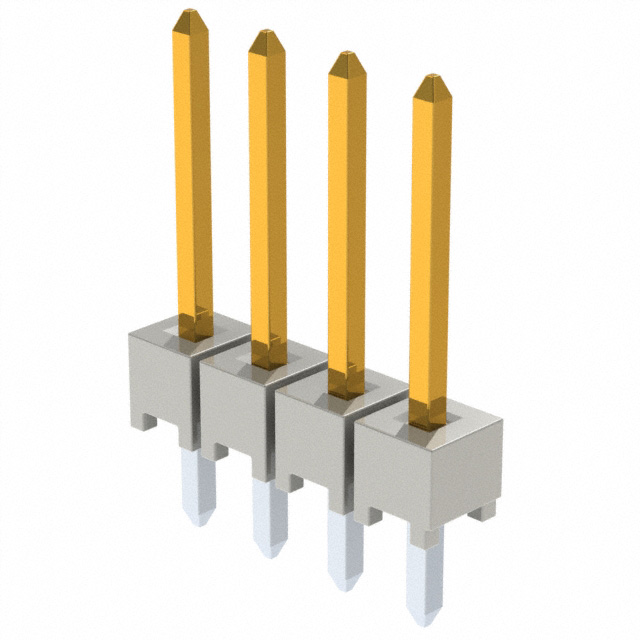

HTSW-104-14-L-S Samtec

Description: CONN HEADER VERT 4POS 2.54MM, Packaging: Bag, Connector Type: Header, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Through Hole, Number of Positions: 4, Number of Rows: 1, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Natural, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Contact Shape: Square, Contact Length - Post: 0.110" (2.79mm), Insulation Height: 0.100" (2.54mm), Shrouding: Unshrouded, Overall Contact Length: 0.530" (13.46mm), Insulation Material: Liquid Crystal Polymer (LCP), Contact Length - Mating: 0.320" (8.13mm).
