Produkte > AMPHENOL ANYTEK > HW0270500000G
HW0270500000G

HW0270500000G Amphenol Anytek


_R3pGdB5Tu40-1379144.pdf Hersteller: Amphenol Anytek
Pluggable Terminal Blocks
auf Bestellung 1835 Stücke:

Lieferzeit 10-14 Tag (e)
Anzahl Preis
2+1.57 EUR
10+1.15 EUR
25+1 EUR
50+0.9 EUR
100+0.89 EUR
250+0.75 EUR
500+0.71 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details HW0270500000G Amphenol Anytek

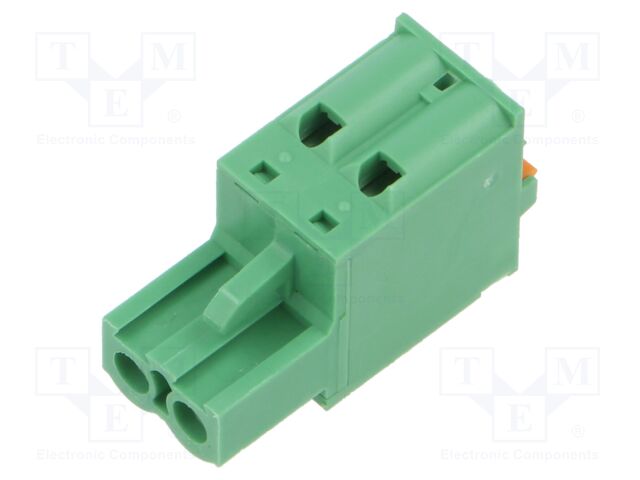

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; HW; 10A; 300V, Spatial orientation: straight, Contact material: phosphor bronze, Kind of connector: female, Mechanical mounting: for cable, Locking system: friction lock, Body colour: green, Manufacturer series: HW, Type of connector: pluggable terminal block, Connector: plug, Body material: thermoplastic, Electrical mounting: spring clamp, Contact plating: tinned, Flammability rating: UL94V-0, Contacts pitch: 5mm, Number of pins: 2, Current rating: 10A, Rated voltage: 300V.

Weitere Produktangebote HW0270500000G nach Preis ab 0.46 EUR bis 1.2 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
HW0270500000G Hersteller : AMPHENOL ANYTEK pVersion=0046&contRep=ZT&docId=005056AB281E1FD0908E57ADE35160DF&compId=HW.pdf?ci_sign=f49013fbb235e41a3facf51cf972e233d7fedae3 pVersion=0046&contRep=ZT&docId=005056AB281E1FD0908E22F2B062E0DF&compId=HW0270000000G.pdf?ci_sign=0634602a5a515bf77229c63651440a4e8096d4ae Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; HW; 10A; 300V
Spatial orientation: straight
Contact material: phosphor bronze
Kind of connector: female
Mechanical mounting: for cable
Locking system: friction lock
Body colour: green
Manufacturer series: HW
Type of connector: pluggable terminal block
Connector: plug
Body material: thermoplastic
Electrical mounting: spring clamp
Contact plating: tinned
Flammability rating: UL94V-0
Contacts pitch: 5mm
Number of pins: 2
Current rating: 10A
Rated voltage: 300V
auf Bestellung 250 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
60+1.2 EUR
81+0.88 EUR
98+0.74 EUR
146+0.49 EUR
155+0.46 EUR
Mindestbestellmenge: 60
Im Einkaufswagen  Stück im Wert von  UAH
HW0270500000G HW0270500000G Hersteller : Amphenol Conn Terminal Block F 2 POS 5mm Push-In Spring ST Cable Mount 10A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
HW0270500000G HW0270500000G Hersteller : Amphenol Anytek Description: TERM BLOCK PLUG 2POS STR 5MM
Packaging: Bulk
Features: Retention Latches (Non-Wire Side)
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 2
Pitch: 0.197" (5.00mm)
Type: Plug, Female Sockets
Operating Temperature: -40°C ~ 115°C
Termination Style: Screwless - Leg Spring, Push-In Spring
Number of Levels: 1
Wire Gauge or Range - AWG: 12-26 AWG
Wire Gauge or Range - mm²: 2.5mm²
Positions Per Level: 2
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Part Status: Active
Current - UL: 10 A
Voltage - UL: 300 V
Produkt ist nicht verfügbar
