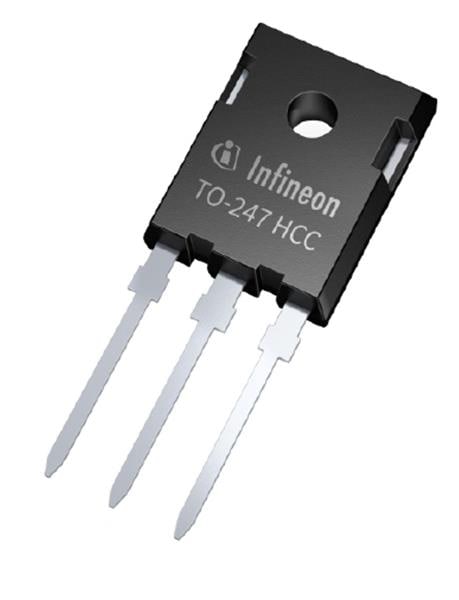

IKWH100N75EH7XKSA1 Infineon Technologies
Hersteller: Infineon TechnologiesDescription: INDUSTRY 14
Packaging: Tube
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 175°C (TJ)
Input Type: Standard
Reverse Recovery Time (trr): 105 ns
Vce(on) (Max) @ Vge, Ic: 1.75V @ 15V, 100A
Supplier Device Package: PG-TO247-3-32
IGBT Type: Trench Field Stop
Td (on/off) @ 25°C: 31ns/237ns
Switching Energy: 3.2mJ (on), 1.8mJ (off)
Test Condition: 400V, 100A, 10Ohm, 15V
Gate Charge: 205 nC
Current - Collector (Ic) (Max): 140 A
Voltage - Collector Emitter Breakdown (Max): 750 V
Current - Collector Pulsed (Icm): 400 A
Power - Max: 429 W
auf Bestellung 232 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 2+ | 12.16 EUR |
| 10+ | 8.29 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details IKWH100N75EH7XKSA1 Infineon Technologies
Description: INDUSTRY 14, Packaging: Tube, Package / Case: TO-247-3, Mounting Type: Through Hole, Operating Temperature: -40°C ~ 175°C (TJ), Input Type: Standard, Reverse Recovery Time (trr): 105 ns, Vce(on) (Max) @ Vge, Ic: 1.75V @ 15V, 100A, Supplier Device Package: PG-TO247-3-32, IGBT Type: Trench Field Stop, Td (on/off) @ 25°C: 31ns/237ns, Switching Energy: 3.2mJ (on), 1.8mJ (off), Test Condition: 400V, 100A, 10Ohm, 15V, Gate Charge: 205 nC, Current - Collector (Ic) (Max): 140 A, Voltage - Collector Emitter Breakdown (Max): 750 V, Current - Collector Pulsed (Icm): 400 A, Power - Max: 429 W.
Weitere Produktangebote IKWH100N75EH7XKSA1 nach Preis ab 5.56 EUR bis 12.65 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IKWH100N75EH7XKSA1 | Hersteller : Infineon Technologies |
High speed and low saturation voltage 750 V TRENCHSTOP IGBT7 technology |
auf Bestellung 210 Stücke: Lieferzeit 10-14 Tag (e) |
|
