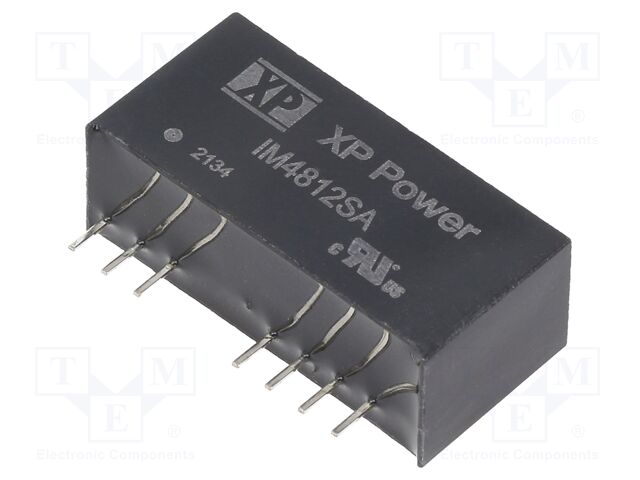

IM4812SA XP POWER
Hersteller: XP POWER
Category: DC/DC Converters
Description: Converter: DC/DC; 2W; Uin: 18÷75VDC; Uout: 12VDC; Iout: 165mA; SIP
Type of converter: DC/DC
Power: 2W
Input voltage: 18...75V DC
Output voltage: 12V DC
Output current: 165mA
Case: SIP
Mounting: THT
Manufacturer series: IM
Body dimensions: 26x12.5x9.2mm
Efficiency: 84%
Operating temperature: -40...100°C
Switching frequency: 250kHz
Insulation voltage: 1.5kV DC
Number of outputs: 1
Produktrezensionen
Produktbewertung abgeben
Technische Details IM4812SA XP POWER
Description: DC DC CONVERTER 12V 2W, Standard Number: 62368-1, Voltage - Isolation: 1.5 kV, Number of Outputs: 1, Power (Watts): 2 W, Control Features: Enable, Active Low, Voltage - Output 1: 12V, Voltage - Input (Min): 18V, Current - Output (Max): 165mA, Efficiency: 84%, Voltage - Input (Max): 75V, Applications: ITE (Commercial), Operating Temperature: -40°C ~ 100°C, Type: Isolated Module, Mounting Type: Through Hole, Size / Dimension: 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.2mm x 12.5mm), Package / Case: 9-SIP Module, 7 Leads, Features: Remote On/Off, SCP, Packaging: Tube.
Weitere Produktangebote IM4812SA nach Preis ab 27.18 EUR bis 28.93 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IM4812SA | XP Power |
Description: DC DC CONVERTER 12V 2W Standard Number: 62368-1 Voltage - Isolation: 1.5 kV Number of Outputs: 1 Power (Watts): 2 W Control Features: Enable, Active Low Voltage - Output 1: 12V Voltage - Input (Min): 18V Current - Output (Max): 165mA Efficiency: 84% Voltage - Input (Max): 75V Applications: ITE (Commercial) Operating Temperature: -40°C ~ 100°C Type: Isolated Module Mounting Type: Through Hole Size / Dimension: 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.2mm x 12.5mm) Package / Case: 9-SIP Module, 7 Leads Features: Remote On/Off, SCP Packaging: Tube |
auf Bestellung 10 Stücke: Lieferzeit 10-14 Tag (e) |
|
| IM4812SA |
|
Hersteller: XP Power
Description: DC DC CONVERTER 12V 2W
Standard Number: 62368-1
Voltage - Isolation: 1.5 kV
Number of Outputs: 1
Power (Watts): 2 W
Control Features: Enable, Active Low
Voltage - Output 1: 12V
Voltage - Input (Min): 18V
Current - Output (Max): 165mA
Efficiency: 84%
Voltage - Input (Max): 75V
Applications: ITE (Commercial)
Operating Temperature: -40°C ~ 100°C
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.2mm x 12.5mm)
Package / Case: 9-SIP Module, 7 Leads
Features: Remote On/Off, SCP
Packaging: Tube
Description: DC DC CONVERTER 12V 2W
Standard Number: 62368-1
Voltage - Isolation: 1.5 kV
Number of Outputs: 1
Power (Watts): 2 W
Control Features: Enable, Active Low
Voltage - Output 1: 12V
Voltage - Input (Min): 18V
Current - Output (Max): 165mA
Efficiency: 84%
Voltage - Input (Max): 75V
Applications: ITE (Commercial)
Operating Temperature: -40°C ~ 100°C
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.2mm x 12.5mm)
Package / Case: 9-SIP Module, 7 Leads
Features: Remote On/Off, SCP
Packaging: Tube
auf Bestellung 10 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 28.93 EUR |
| 5+ | 28.06 EUR |
| 10+ | 27.18 EUR |
