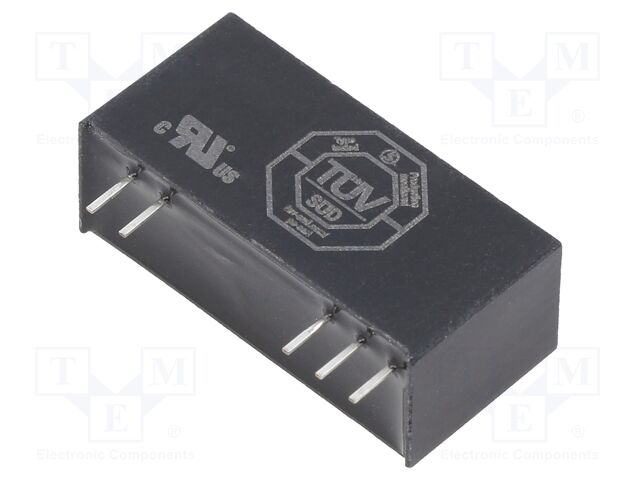

IMM0505S15 XP POWER
Hersteller: XP POWER
Category: DC/DC Converters
Description: Converter: DC/DC; 5W; Uin: 4.5÷9VDC; Uout: 15VDC; Iout: 333mA; SIP9
Type of converter: DC/DC
Power: 5W
Input voltage: 4.5...9V DC
Output voltage: 15V DC
Output current: 0.333A
Number of outputs: 1
Efficiency: 82%
Manufacturer series: IMM05
Body dimensions: 26x9.3x12.5mm
Mounting: THT
Insulation voltage: 1.5kV DC
Operating temperature: -20...100°C
Switching frequency: 1MHz
Application: medical applications
Case: SIP9
Produktrezensionen
Produktbewertung abgeben
Technische Details IMM0505S15 XP POWER
Description: DC DC CONVERTER 15V 5W, Features: Remote On/Off, OCP, SCP, Packaging: Tube, Package / Case: 9-SIP Module, 5 Leads, Size / Dimension: 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.3mm x 12.5mm), Mounting Type: Through Hole, Type: Isolated Module, Operating Temperature: -20°C ~ 100°C (With Derating), Applications: Medical, Voltage - Input (Max): 9V, Approval Agency: CB, CSA, TUV, UL, Efficiency: 82%, Current - Output (Max): 333mA, Voltage - Input (Min): 4.5V, Voltage - Output 1: 15V, Power (Watts): 5 W, Number of Outputs: 1, Voltage - Isolation: 1.5 kV.
Weitere Produktangebote IMM0505S15 nach Preis ab 39.65 EUR bis 47.21 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IMM0505S15 | XP Power |
Description: DC DC CONVERTER 15V 5W Features: Remote On/Off, OCP, SCP Packaging: Tube Package / Case: 9-SIP Module, 5 Leads Size / Dimension: 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.3mm x 12.5mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -20°C ~ 100°C (With Derating) Applications: Medical Voltage - Input (Max): 9V Approval Agency: CB, CSA, TUV, UL Efficiency: 82% Current - Output (Max): 333mA Voltage - Input (Min): 4.5V Voltage - Output 1: 15V Power (Watts): 5 W Number of Outputs: 1 Voltage - Isolation: 1.5 kV |
auf Bestellung 18 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
IMM0505S15 | XP Power |
Isolated DC/DC Converters - Through Hole DC-DC, 5W, 2:1 input, Medical Approvals, SIP9 |
auf Bestellung 102 Stücke: Lieferzeit 10-14 Tag (e) |
|
| IMM0505S15 |
|
Hersteller: XP Power
Description: DC DC CONVERTER 15V 5W
Features: Remote On/Off, OCP, SCP
Packaging: Tube
Package / Case: 9-SIP Module, 5 Leads
Size / Dimension: 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.3mm x 12.5mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -20°C ~ 100°C (With Derating)
Applications: Medical
Voltage - Input (Max): 9V
Approval Agency: CB, CSA, TUV, UL
Efficiency: 82%
Current - Output (Max): 333mA
Voltage - Input (Min): 4.5V
Voltage - Output 1: 15V
Power (Watts): 5 W
Number of Outputs: 1
Voltage - Isolation: 1.5 kV
Description: DC DC CONVERTER 15V 5W
Features: Remote On/Off, OCP, SCP
Packaging: Tube
Package / Case: 9-SIP Module, 5 Leads
Size / Dimension: 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.3mm x 12.5mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -20°C ~ 100°C (With Derating)
Applications: Medical
Voltage - Input (Max): 9V
Approval Agency: CB, CSA, TUV, UL
Efficiency: 82%
Current - Output (Max): 333mA
Voltage - Input (Min): 4.5V
Voltage - Output 1: 15V
Power (Watts): 5 W
Number of Outputs: 1
Voltage - Isolation: 1.5 kV
auf Bestellung 18 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 46.27 EUR |
| 5+ | 44.86 EUR |
| 10+ | 43.47 EUR |
| IMM0505S15 |
|
Hersteller: XP Power
Isolated DC/DC Converters - Through Hole DC-DC, 5W, 2:1 input, Medical Approvals, SIP9
Isolated DC/DC Converters - Through Hole DC-DC, 5W, 2:1 input, Medical Approvals, SIP9
auf Bestellung 102 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 47.21 EUR |
| 5+ | 45.78 EUR |
| 10+ | 44.36 EUR |
| 30+ | 42.47 EUR |
| 100+ | 39.65 EUR |
