Produkte > SAMTEC > IPBT-104-H1-T-D-K
IPBT-104-H1-T-D-K

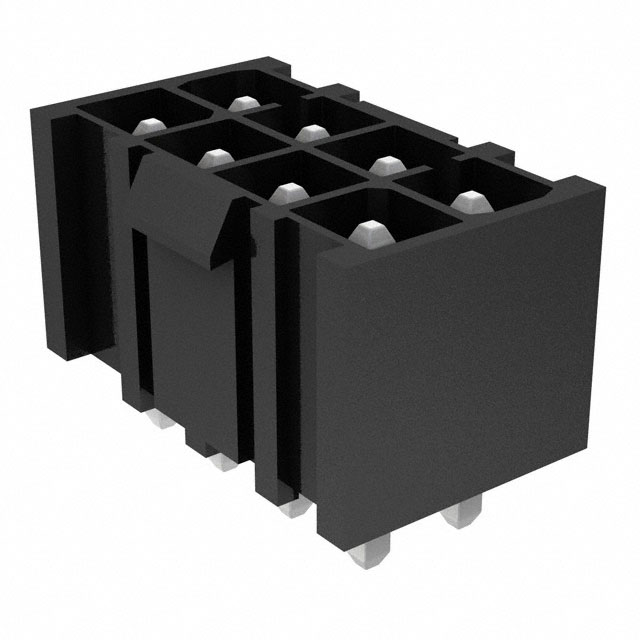

IPBT-104-H1-T-D-K Samtec

ipbt-2854418.pdf Hersteller: Samtec
Power to the Board .165" Power Mate Isolated Power Terminal Header
auf Bestellung 1163 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+4.52 EUR
10+ 4.35 EUR
120+ 3.61 EUR
510+ 3.06 EUR
1020+ 2.62 EUR
2520+ 2.39 EUR
5010+ 2.36 EUR
Produktrezensionen
Produktbewertung abgeben

Technische Details IPBT-104-H1-T-D-K Samtec

Description: CONN HEADER VERT 8POS 4.2MM, Packaging: Tube, Connector Type: Header, Voltage Rating: 400VAC, 565VDC, Mounting Type: Through Hole, Number of Positions: 8, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.165" (4.20mm), Contact Finish - Mating: Tin, Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.130" (3.30mm), Insulation Height: 0.380" (9.65mm), Shrouding: Shrouded - 4 Wall, Overall Contact Length: 0.510" (12.95mm), Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.165" (4.20mm), Contact Length - Mating: 0.260" (6.60mm).

Weitere Produktangebote IPBT-104-H1-T-D-K nach Preis ab 2.94 EUR bis 5.07 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis ohne MwSt
IPBT-104-H1-T-D-K IPBT-104-H1-T-D-K Hersteller : Samtec Inc. ipbt.pdf Description: CONN HEADER VERT 8POS 4.2MM
Packaging: Tube
Connector Type: Header
Voltage Rating: 400VAC, 565VDC
Mounting Type: Through Hole
Number of Positions: 8
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.165" (4.20mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.380" (9.65mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.510" (12.95mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.165" (4.20mm)
Contact Length - Mating: 0.260" (6.60mm)
auf Bestellung 2044 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
4+5.07 EUR
10+ 4.6 EUR
100+ 4.05 EUR
500+ 3.44 EUR
1000+ 2.94 EUR
Mindestbestellmenge: 4
IPBT-104-H1-T-D-K IPBT-104-H1-T-D-K Hersteller : SAMTEC IPBT-115-H2-T-D-K Description: SAMTEC - IPBT-104-H1-T-D-K - Stiftleiste, Einspeiseklemme, Board-to-Board, Wire-to-Board, 4.19 mm, 2 Reihe(n), 8 Kontakt(e)
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Verzinnte Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Kupferlegierung
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 8Contacts
euEccn: NLR
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Produktpalette: IPBT
productTraceability: No
Kontaktanschluss: Durchsteckmontage
Anzahl der Reihen: 2Rows
Rastermaß: 4.19mm
SVHC: No SVHC (14-Jun-2023)
auf Bestellung 44 Stücke:
Lieferzeit 14-21 Tag (e)
