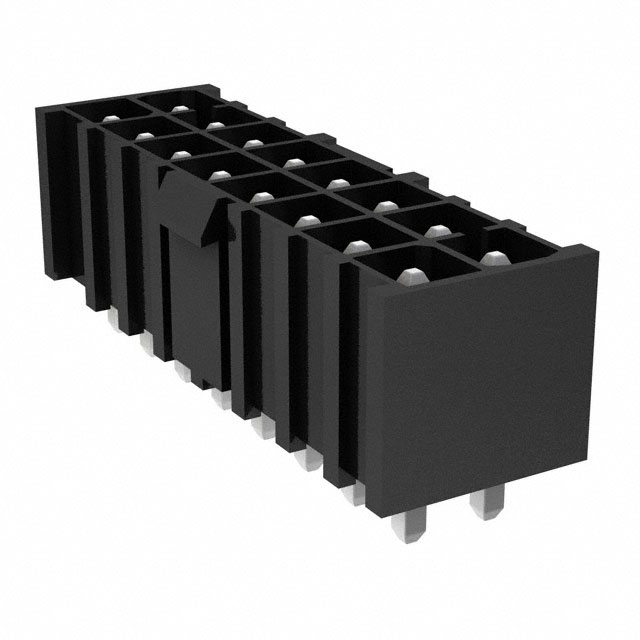

IPBT-108-H1-T-D-K Samtec Inc.
Hersteller: Samtec Inc.Description: CONN HEADER VERT 16POS 4.2MM
Packaging: Tube
Connector Type: Header
Voltage Rating: 400VAC, 565VDC
Mounting Type: Through Hole
Number of Positions: 16
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.165" (4.20mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.380" (9.65mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.510" (12.95mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.165" (4.20mm)
Contact Length - Mating: 0.260" (6.60mm)
auf Bestellung 4202 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 3+ | 6.51 EUR |
| 50+ | 5.30 EUR |
| 100+ | 4.50 EUR |
| 500+ | 4.01 EUR |
| 1000+ | 3.15 EUR |
| 2000+ | 2.87 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details IPBT-108-H1-T-D-K Samtec Inc.
Description: CONN HEADER VERT 16POS 4.2MM, Packaging: Tube, Connector Type: Header, Voltage Rating: 400VAC, 565VDC, Mounting Type: Through Hole, Number of Positions: 16, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.165" (4.20mm), Contact Finish - Mating: Tin, Contact Finish - Post: Tin, Contact Shape: Square, Contact Length - Post: 0.130" (3.30mm), Insulation Height: 0.380" (9.65mm), Shrouding: Shrouded - 4 Wall, Overall Contact Length: 0.510" (12.95mm), Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.165" (4.20mm), Contact Length - Mating: 0.260" (6.60mm).
Weitere Produktangebote IPBT-108-H1-T-D-K nach Preis ab 3.27 EUR bis 7.83 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IPBT-108-H1-T-D-K | Hersteller : Samtec |
Power to the Board .165 Power Mate Isolated Power Terminal Header |
auf Bestellung 223 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
IPBT-108-H1-T-D-K | Hersteller : SAMTEC |
Description: SAMTEC - IPBT-108-H1-T-D-K - Stiftleiste, Board-to-Board, Wire-to-Board, 4.19 mm, 2 Reihe(n), 16 Kontakt(e), Durchsteckmontage tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Verzinnte Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Kupferlegierung usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 16Kontakt(e) euEccn: NLR Steckverbindersysteme: Board-to-Board, Wire-to-Board Steckverbindertyp: PCB-Stiftleiste Produktpalette: IPBT productTraceability: No Kontaktanschluss: Durchsteckmontage Anzahl der Reihen: 2Reihe(n) Rastermaß: 4.19mm SVHC: No SVHC (21-Jan-2025) |
auf Bestellung 65 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||
| IPBT-108-H1-T-D-K | Hersteller : SAMTEC |
IPBT-108-H1-T-D-K Pin headers |
auf Bestellung 10 Stücke: Lieferzeit 7-14 Tag (e) |
|
