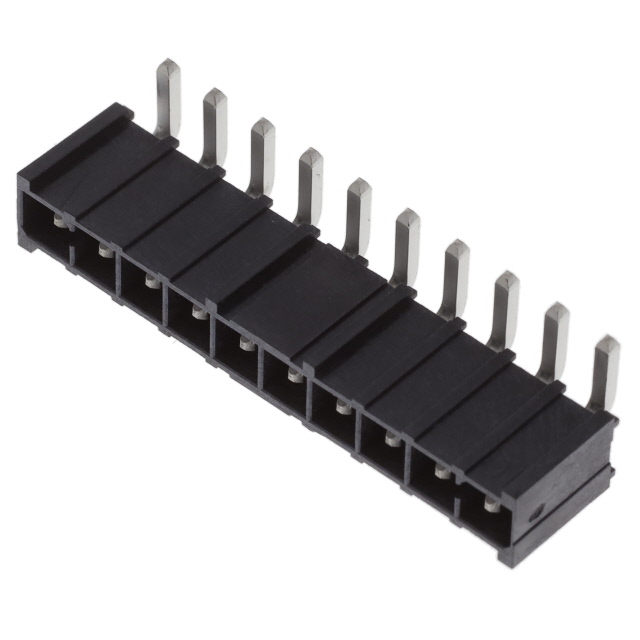

IPBT-110-H1-T-S-RA-K Samtec
| Anzahl | Privatkunde |
|---|---|
| 1+ | 4.49 EUR |
| 26+ | 4.32 EUR |
| 52+ | 4.06 EUR |
| 104+ | 3.75 EUR |
| 507+ | 3.39 EUR |
| 1001+ | 3.2 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details IPBT-110-H1-T-S-RA-K Samtec
Description: CONN HEADER R/A 10POS 4.20MM, Packaging: Tube, Connector Type: Header, Voltage Rating: 400VAC, 565VDC, Mounting Type: Through Hole, Right Angle, Number of Positions: 10, Number of Rows: 1, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.165" (4.20mm), Contact Finish - Mating: Tin, Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.147" (3.73mm), Insulation Height: 0.259" (6.58mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Contact Length - Mating: 0.260" (6.60mm).
Weitere Produktangebote IPBT-110-H1-T-S-RA-K nach Preis ab 5.21 EUR bis 6.51 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IPBT-110-H1-T-S-RA-K | Samtec Inc. |
 Description: CONN HEADER R/A 10POS 4.20MMPackaging: Tube Connector Type: Header Voltage Rating: 400VAC, 565VDC Mounting Type: Through Hole, Right Angle Number of Positions: 10 Number of Rows: 1 Style: Board to Board or Cable Operating Temperature: -55°C ~ 105°C Contact Type: Male Pin Fastening Type: Locking Ramp Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Copper Alloy Insulation Color: Black Pitch - Mating: 0.165" (4.20mm) Contact Finish - Mating: Tin Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.147" (3.73mm) Insulation Height: 0.259" (6.58mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) Contact Length - Mating: 0.260" (6.60mm) |
auf Bestellung 142 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||
 |
IPBT-110-H1-T-S-RA-K | SAMTEC |
Description: SAMTEC - IPBT-110-H1-T-S-RA-K - Stiftleiste, Board-to-Board, Wire-to-Board, 4.19 mm, 1 Reihe(n), 10 Kontakt(e) tariffCode: 85366930 euEccn: NLR rohsCompliant: YES Kontaktüberzug: Verzinnte Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Kupferlegierung isCanonical: Y Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 10Kontakt(e) SVHC: No SVHC (04-Feb-2026) Steckverbindersysteme: Board-to-Board, Wire-to-Board Steckverbinder: PCB-Stiftleiste Produktpalette: IPBT productTraceability: No Kontaktanschluss: Durchsteckmontage, abgewinkelt usEccn: EAR99 Anzahl der Reihen: 1Reihe(n) Rastermaß: 4.19mm |
auf Bestellung 15 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| IPBT-110-H1-T-S-RA-K |
|
Hersteller: Samtec Inc.
Description: CONN HEADER R/A 10POS 4.20MM
Packaging: Tube
Connector Type: Header
Voltage Rating: 400VAC, 565VDC
Mounting Type: Through Hole, Right Angle
Number of Positions: 10
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.165" (4.20mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.147" (3.73mm)
Insulation Height: 0.259" (6.58mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.260" (6.60mm)
Description: CONN HEADER R/A 10POS 4.20MM
Packaging: Tube
Connector Type: Header
Voltage Rating: 400VAC, 565VDC
Mounting Type: Through Hole, Right Angle
Number of Positions: 10
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.165" (4.20mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.147" (3.73mm)
Insulation Height: 0.259" (6.58mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.260" (6.60mm)
auf Bestellung 142 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 4+ | 6.51 EUR |
| 25+ | 5.9 EUR |
| 50+ | 5.49 EUR |
| 100+ | 5.21 EUR |
| IPBT-110-H1-T-S-RA-K |
|
Hersteller: SAMTEC
Description: SAMTEC - IPBT-110-H1-T-S-RA-K - Stiftleiste, Board-to-Board, Wire-to-Board, 4.19 mm, 1 Reihe(n), 10 Kontakt(e)
tariffCode: 85366930
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Verzinnte Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Kupferlegierung
isCanonical: Y
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 10Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: IPBT
productTraceability: No
Kontaktanschluss: Durchsteckmontage, abgewinkelt
usEccn: EAR99
Anzahl der Reihen: 1Reihe(n)
Rastermaß: 4.19mm
Description: SAMTEC - IPBT-110-H1-T-S-RA-K - Stiftleiste, Board-to-Board, Wire-to-Board, 4.19 mm, 1 Reihe(n), 10 Kontakt(e)
tariffCode: 85366930
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Verzinnte Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Kupferlegierung
isCanonical: Y
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 10Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: IPBT
productTraceability: No
Kontaktanschluss: Durchsteckmontage, abgewinkelt
usEccn: EAR99
Anzahl der Reihen: 1Reihe(n)
Rastermaß: 4.19mm
auf Bestellung 15 Stücke:
Lieferzeit 14-21 Tag (e)
