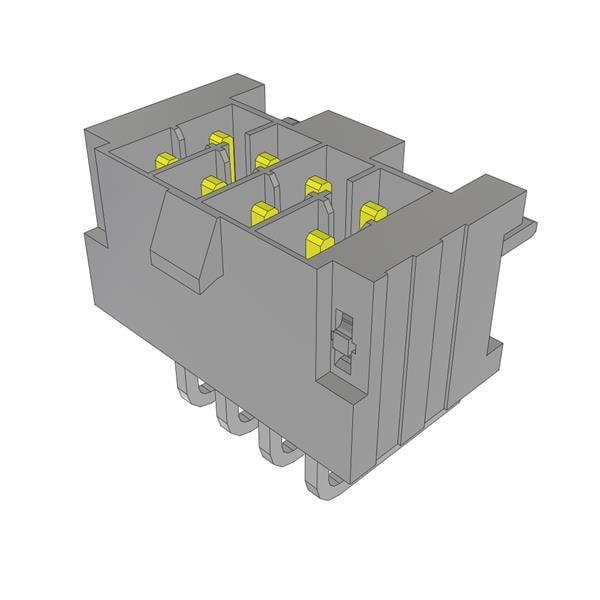

IPL1-104-01-L-D-RE1-K-WT Samtec
auf Bestellung 1 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 9.86 EUR |
| 10+ | 9.47 EUR |
| 111+ | 7.88 EUR |
| 518+ | 6.71 EUR |
| 1036+ | 5.72 EUR |
| 2516+ | 5.24 EUR |
| 5032+ | 5.12 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details IPL1-104-01-L-D-RE1-K-WT Samtec
Description: CONN HEADER R/A 8POS 2.54MM, Packaging: Tube, Features: Board Guide, Connector Type: Header, Voltage Rating: 675VAC, 954VDC, Mounting Type: Through Hole, Right Angle, Number of Positions: 8, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Natural, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.085" (2.16mm), Insulation Height: 0.325" (8.25mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.215" (5.46mm).
Weitere Produktangebote IPL1-104-01-L-D-RE1-K-WT nach Preis ab 6.42 EUR bis 11.07 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IPL1-104-01-L-D-RE1-K-WT | Hersteller : Samtec Inc. |
Description: CONN HEADER R/A 8POS 2.54MM Packaging: Tube Features: Board Guide Connector Type: Header Voltage Rating: 675VAC, 954VDC Mounting Type: Through Hole, Right Angle Number of Positions: 8 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Locking Ramp Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Natural Pitch - Mating: 0.100" (2.54mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.085" (2.16mm) Insulation Height: 0.325" (8.25mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.100" (2.54mm) Contact Length - Mating: 0.215" (5.46mm) |
auf Bestellung 1215 Stücke: Lieferzeit 10-14 Tag (e) |
|
