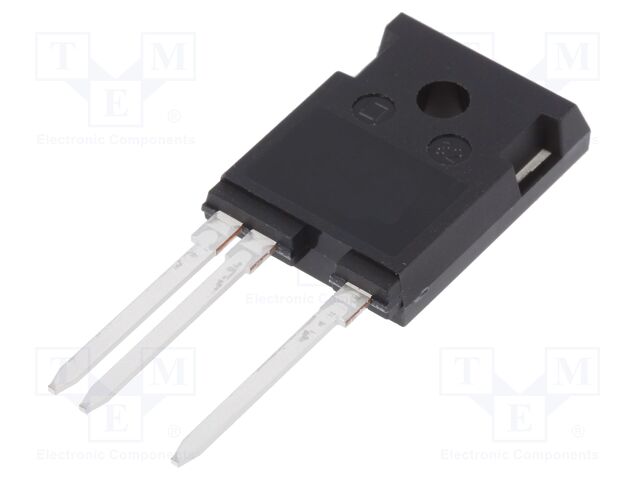

IXBH10N300HV IXYS
Hersteller: IXYS
Category: THT IGBT transistors
Description: Transistor: IGBT; BiMOSFET™; 3kV; 10A; 180W; TO247HV
Mounting: THT
Features of semiconductor devices: high voltage
Type of transistor: IGBT
Case: TO247HV
Kind of package: tube
Gate charge: 46nC
Turn-on time: 805ns
Turn-off time: 2.13µs
Collector current: 10A
Gate-emitter voltage: ±20V
Pulsed collector current: 88A
Power dissipation: 180W
Collector-emitter voltage: 3kV
Technology: BiMOSFET™
Produktrezensionen
Produktbewertung abgeben
Technische Details IXBH10N300HV IXYS
Description: IGBT 3000V 20A 140W TO247AD, Packaging: Tube, Package / Case: TO-247-3, Mounting Type: Through Hole, Operating Temperature: -55°C ~ 150°C (TJ), Input Type: Standard, Reverse Recovery Time (trr): 1.6 µs, Vce(on) (Max) @ Vge, Ic: 2.8V @ 15V, 10A, Supplier Device Package: TO-247HV (IXBH), Td (on/off) @ 25°C: 36ns/100ns, Test Condition: 960V, 10A, 10Ohm, 15V, Gate Charge: 46 nC, Part Status: Active, Current - Collector (Ic) (Max): 34 A, Voltage - Collector Emitter Breakdown (Max): 3000 V, Current - Collector Pulsed (Icm): 88 A, Power - Max: 180 W.
Weitere Produktangebote IXBH10N300HV
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
|
IXBH10N300HV Produktcode: 161629
zu Favoriten hinzufügen
Lieblingsprodukt
|
Transistoren > Transistoren IGBT, Leistungsmodule |
Produkt ist nicht verfügbar
|
|||
 |
IXBH10N300HV | Hersteller : IXYS |
Description: IGBT 3000V 20A 140W TO247AD Packaging: Tube Package / Case: TO-247-3 Mounting Type: Through Hole Operating Temperature: -55°C ~ 150°C (TJ) Input Type: Standard Reverse Recovery Time (trr): 1.6 µs Vce(on) (Max) @ Vge, Ic: 2.8V @ 15V, 10A Supplier Device Package: TO-247HV (IXBH) Td (on/off) @ 25°C: 36ns/100ns Test Condition: 960V, 10A, 10Ohm, 15V Gate Charge: 46 nC Part Status: Active Current - Collector (Ic) (Max): 34 A Voltage - Collector Emitter Breakdown (Max): 3000 V Current - Collector Pulsed (Icm): 88 A Power - Max: 180 W |
Produkt ist nicht verfügbar |
|
 |
IXBH10N300HV | Hersteller : IXYS |
IGBTs TO247 3KV 10A IGBT |
Produkt ist nicht verfügbar |
