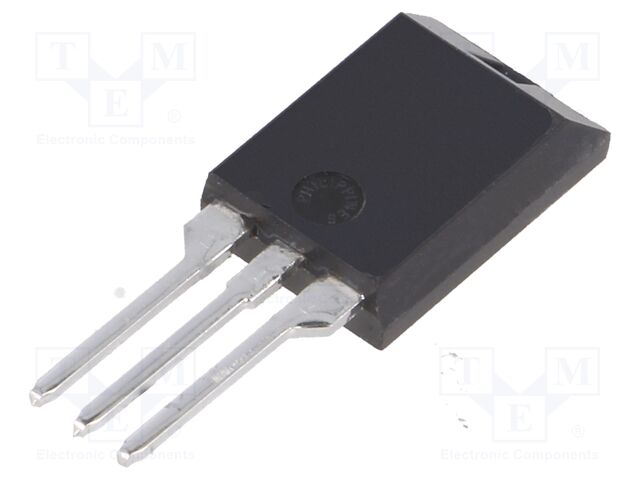

IXKC23N60C5 IXYS
Hersteller: IXYS
Description: MOSFET N-CH 600V 23A ISOPLUS220
Packaging: Tube
Package / Case: ISOPLUS220™
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 23A (Tc)
Rds On (Max) @ Id, Vgs: 100mOhm @ 18A, 10V
Vgs(th) (Max) @ Id: 3.9V @ 1.2mA
Supplier Device Package: ISOPLUS220™
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 600 V
Gate Charge (Qg) (Max) @ Vgs: 80 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 2800 pF @ 100 V
Description: MOSFET N-CH 600V 23A ISOPLUS220
Packaging: Tube
Package / Case: ISOPLUS220™
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 23A (Tc)
Rds On (Max) @ Id, Vgs: 100mOhm @ 18A, 10V
Vgs(th) (Max) @ Id: 3.9V @ 1.2mA
Supplier Device Package: ISOPLUS220™
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 600 V
Gate Charge (Qg) (Max) @ Vgs: 80 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 2800 pF @ 100 V
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details IXKC23N60C5 IXYS
Description: MOSFET N-CH 600V 23A ISOPLUS220, Packaging: Tube, Package / Case: ISOPLUS220™, Mounting Type: Through Hole, Operating Temperature: -55°C ~ 150°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 23A (Tc), Rds On (Max) @ Id, Vgs: 100mOhm @ 18A, 10V, Vgs(th) (Max) @ Id: 3.9V @ 1.2mA, Supplier Device Package: ISOPLUS220™, Drive Voltage (Max Rds On, Min Rds On): 10V, Vgs (Max): ±20V, Drain to Source Voltage (Vdss): 600 V, Gate Charge (Qg) (Max) @ Vgs: 80 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 2800 pF @ 100 V.
Weitere Produktangebote IXKC23N60C5
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
IXKC23N60C5 | Hersteller : IXYS |
 MOSFETs 23 Amps 600V 0.1 Rds |
Produkt ist nicht verfügbar |
|
 |
IXKC23N60C5 | Hersteller : IXYS |
Category: THT N channel transistors Description: Transistor: N-MOSFET; unipolar; 600V; 23A; 147W; ISOPLUS220™ Type of transistor: N-MOSFET Polarisation: unipolar Drain-source voltage: 600V Drain current: 23A Power dissipation: 147W Case: ISOPLUS220™ On-state resistance: 0.1Ω Mounting: THT Gate charge: 60nC Kind of package: tube Kind of channel: enhancement Features of semiconductor devices: super junction coolmos |
Produkt ist nicht verfügbar |
