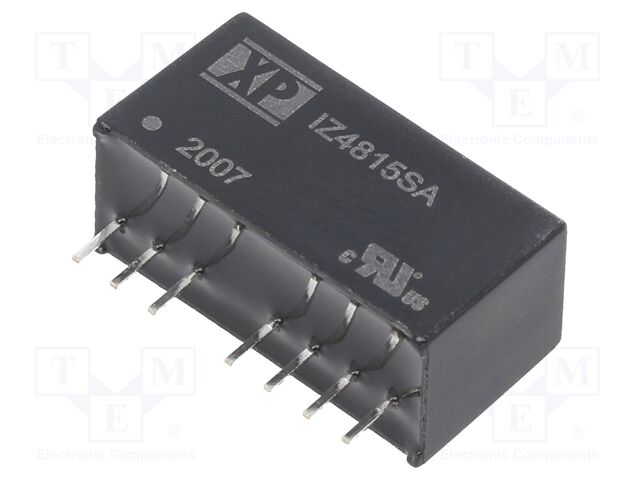

IZ4815SA XP POWER
Hersteller: XP POWER
Category: DC/DC Converters
Description: Converter: DC/DC; 3W; Uin: 36÷72VDC; Uout: 15VDC; Iout: 200mA; SIP
Type of converter: DC/DC
Power: 3W
Input voltage: 36...72V DC
Output voltage: 15V DC
Output current: 0.2A
Case: SIP
Mounting: THT
Manufacturer series: IZ
Body dimensions: 21.85x10.6x11.1mm
Efficiency: 81%
Operating temperature: -40...100°C
Switching frequency: 650kHz
Insulation voltage: 1.6kV DC
Number of outputs: 1
Produktrezensionen
Produktbewertung abgeben
Technische Details IZ4815SA XP POWER
Description: DC DC CONVERTER 15V 3W, Features: Remote On/Off, SCP, Packaging: Tube, Package / Case: 8-SIP Module, 7 Leads, Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm), Mounting Type: Through Hole, Type: Isolated Module, Operating Temperature: -40°C ~ 70°C, Applications: ITE (Commercial), Voltage - Input (Max): 72V, Efficiency: 81%, Current - Output (Max): 200mA, Voltage - Input (Min): 36V, Voltage - Output 1: 15V, Control Features: Enable, Active Low, Power (Watts): 3 W, Number of Outputs: 1, Voltage - Isolation: 1.6 kV, Standard Number: 62368-1.
Weitere Produktangebote IZ4815SA nach Preis ab 27.73 EUR bis 28.58 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||
|---|---|---|---|---|---|---|---|---|---|
 |
IZ4815SA | XP Power |
Description: DC DC CONVERTER 15V 3W Features: Remote On/Off, SCP Packaging: Tube Package / Case: 8-SIP Module, 7 Leads Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 70°C Applications: ITE (Commercial) Voltage - Input (Max): 72V Efficiency: 81% Current - Output (Max): 200mA Voltage - Input (Min): 36V Voltage - Output 1: 15V Control Features: Enable, Active Low Power (Watts): 3 W Number of Outputs: 1 Voltage - Isolation: 1.6 kV Standard Number: 62368-1 |
auf Bestellung 7 Stücke: Lieferzeit 10-14 Tag (e) |
|
| IZ4815SA |
|
Hersteller: XP Power
Description: DC DC CONVERTER 15V 3W
Features: Remote On/Off, SCP
Packaging: Tube
Package / Case: 8-SIP Module, 7 Leads
Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 70°C
Applications: ITE (Commercial)
Voltage - Input (Max): 72V
Efficiency: 81%
Current - Output (Max): 200mA
Voltage - Input (Min): 36V
Voltage - Output 1: 15V
Control Features: Enable, Active Low
Power (Watts): 3 W
Number of Outputs: 1
Voltage - Isolation: 1.6 kV
Standard Number: 62368-1
Description: DC DC CONVERTER 15V 3W
Features: Remote On/Off, SCP
Packaging: Tube
Package / Case: 8-SIP Module, 7 Leads
Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 70°C
Applications: ITE (Commercial)
Voltage - Input (Max): 72V
Efficiency: 81%
Current - Output (Max): 200mA
Voltage - Input (Min): 36V
Voltage - Output 1: 15V
Control Features: Enable, Active Low
Power (Watts): 3 W
Number of Outputs: 1
Voltage - Isolation: 1.6 kV
Standard Number: 62368-1
auf Bestellung 7 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 28.58 EUR |
| 5+ | 27.73 EUR |
