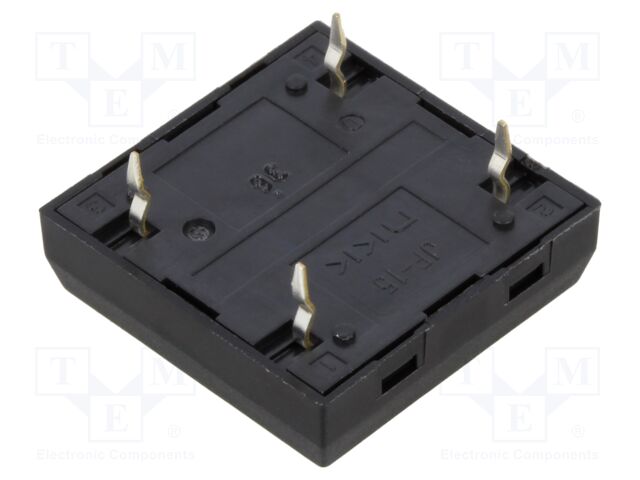

JF15SP1F NKK SWITCHES
Hersteller: NKK SWITCHESCategory: Microswitches TACT
Description: Microswitch TACT; SPST-NO; Pos: 2; 0.05A/24VDC; THT; none; 3N; JF
Leads: for soldering; straight
Body colour: black
Contact material: brass
Body material: polyamide
Type of switch: microswitch TACT
Contacts configuration: SPST-NO
Kind of material: fiber glass reinforced
Contact plating: silver plated
Actuator colour: green
Illumination: none
Switching method: OFF-(ON)
Mounting: THT
Button shape: square; square
Operating temperature: -25...85°C
Key stroke: 0.4mm
Body dimensions: 17.7x17.7x5mm
Max. contact resistance:: 50mΩ
DC contacts rating @R: 50mA / 24V DC
Operating Force: 3N
Poles number: 1
Stable positions number: 1
Number of positions: 2
Number of terminals: 4
Mechanical durability: 500000 cycles
Electrical life: 500000 cycles
Min. insulation resistance: 500MΩ
Manufacturer series: JF
Anzahl je Verpackung: 1 Stücke
auf Bestellung 12 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 12+ | 5.96 EUR |
| 25+ | 3.26 EUR |
| 50+ | 3.13 EUR |
| 100+ | 3.02 EUR |
| 250+ | 2.89 EUR |
| 500+ | 2.77 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details JF15SP1F NKK SWITCHES
Category: Microswitches TACT, Description: Microswitch TACT; SPST-NO; Pos: 2; 0.05A/24VDC; THT; none; 3N; JF, Leads: for soldering; straight, Body colour: black, Contact material: brass, Body material: polyamide, Type of switch: microswitch TACT, Contacts configuration: SPST-NO, Kind of material: fiber glass reinforced, Contact plating: silver plated, Actuator colour: green, Illumination: none, Switching method: OFF-(ON), Mounting: THT, Button shape: square; square, Operating temperature: -25...85°C, Key stroke: 0.4mm, Body dimensions: 17.7x17.7x5mm, Max. contact resistance:: 50mΩ, DC contacts rating @R: 50mA / 24V DC, Operating Force: 3N, Poles number: 1, Stable positions number: 1, Number of positions: 2, Number of terminals: 4, Mechanical durability: 500000 cycles, Electrical life: 500000 cycles, Min. insulation resistance: 500MΩ, Manufacturer series: JF, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote JF15SP1F nach Preis ab 3.21 EUR bis 6.23 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
+1 |
JF15SP1F | Hersteller : NKK SWITCHES |
Category: Microswitches TACT Description: Microswitch TACT; SPST-NO; Pos: 2; 0.05A/24VDC; THT; none; 3N; JF Leads: for soldering; straight Body colour: black Contact material: brass Body material: polyamide Type of switch: microswitch TACT Contacts configuration: SPST-NO Kind of material: fiber glass reinforced Contact plating: silver plated Actuator colour: green Illumination: none Switching method: OFF-(ON) Mounting: THT Button shape: square; square Operating temperature: -25...85°C Key stroke: 0.4mm Body dimensions: 17.7x17.7x5mm Max. contact resistance:: 50mΩ DC contacts rating @R: 50mA / 24V DC Operating Force: 3N Poles number: 1 Stable positions number: 1 Number of positions: 2 Number of terminals: 4 Mechanical durability: 500000 cycles Electrical life: 500000 cycles Min. insulation resistance: 500MΩ Manufacturer series: JF |
auf Bestellung 12 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||||
 |
JF15SP1F | Hersteller : NKK Switches |
Tactile Switches SPST SQ/SQ GREEN |
auf Bestellung 7133 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||||
 |
JF15SP1F | Hersteller : NKK Switches |
Description: SWITCH TACTILE SPST-NO 0.05A 24V Packaging: Tray Features: Process Sealed Mounting Type: Through Hole Circuit: SPST-NO Switch Function: Off-Mom Operating Temperature: -25°C ~ 85°C Termination Style: PC Pin Illumination: Non-Illuminated Contact Rating @ Voltage: 0.05A @ 24VDC Actuator Type: Square Button Operating Force: 300gf Outline: 17.70mm x 17.70mm Actuator Height off PCB, Vertical: 5.08mm Actuator Orientation: Top Actuated |
auf Bestellung 16780 Stücke: Lieferzeit 10-14 Tag (e) |
|
