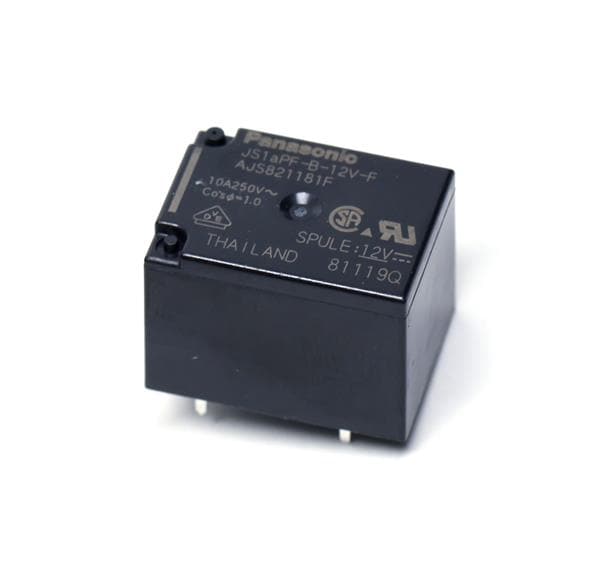

JS1APF-B-12V-F

Hersteller: Panasonic Electric Works
Description: RELAY GEN PURPOSE SPST 10A 12V
Packaging: Bulk
Mounting Type: Through Hole
Coil Voltage: 12VDC
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Approval Agency: CSA, TUV, UR, VDE
Relay Type: General Purpose
Coil Current: 30 mA
Coil Type: Non Latching
Seal Rating: Sealed - Flux Protection
Contact Material: Silver Tin Oxide (AgSnO)
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 10 A
Switching Voltage: 250VAC, 100VDC - Max
Must Release Voltage: 1.2 VDC
Must Operate Voltage: 8.4 VDC
Operate Time: 10 ms
Release Time: 10 ms
Part Status: Obsolete
Coil Insulation: Class B
Load - Max Switching: 2500VA, 1000W

Hersteller: Panasonic Industrial Devices
General Purpose Relays SUGGESTED ALTERNATE 769-ALQ312

Hersteller: PANASONIC
Description: PANASONIC - JS1APF-B-12V-F - Universelles Leistungsrelais, Baureihe JS, monostabil, SPST-NO, 12V DC, 10A
Zulassungen & Normen: CSA, UL, VDE
Relaisanschlüsse: Lötanschlüsse
Spulentyp: Monostabil
Kontaktmaterial: Silberzinnoxid
Kontaktstrom: 10
Spulenwiderstand: 400
Kontaktspannung V DC: 30
Relaismontage: Durchsteckmontage
Produktpalette: JS
Spulenspannung: 12
Kontaktkonfiguration: SPST-NO
Kontaktspannung V AC: 250
SVHC: No SVHC (07-Jul-2017)
