KD0310510000G Amphenol Anytek
Hersteller: Amphenol Anytek

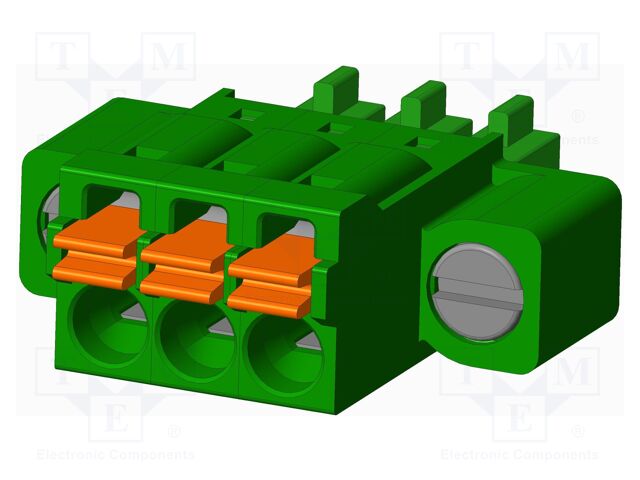

Description: TERM BLOCK PLUG 3POS 3.50MM
Number of Levels: 1
Termination Style: Screwless - Leg Spring, Push-In Spring
Operating Temperature: -40°C ~ 115°C
Type: Plug, Female Sockets
Pitch: 0.138" (3.50mm)
Number of Positions: 3
Mounting Type: Free Hanging (In-Line)
Color: Green
Features: Mating Flange
Packaging: Bulk
Voltage - UL: 160 V
Current - UL: 5.5 A
Contact Mating Finish: Tin
Plug Wire Entry: 180°
Positions Per Level: 3
Wire Gauge or Range - AWG: 16-24 AWG
Produktrezensionen
Produktbewertung abgeben
Technische Details KD0310510000G Amphenol Anytek
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 5.5A; 160V, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Current rating: 5.5A, Rated voltage: 0.16kV, Number of pins: 3, Spatial orientation: straight, Mechanical mounting: for cable, Electrical mounting: spring clamp, Contact material: phosphor bronze, Contact plating: tinned, Colour: green, Flammability rating: UL94V-0, Body material: thermoplastic, Wire size: 24AWG...16AWG, Connector pinout layout: 1x3, Contacts pitch: 3.5mm, Locking system: friction lock; threaded joint, Operating temperature: -40...115°C.
Weitere Produktangebote KD0310510000G
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
| KD0310510000G | Amphenol Anytek |
Pluggable Terminal Blocks TB SPRING PLUG WF |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH | |
 |
KD0310510000G | AMPHENOL ANYTEK |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 5.5A; 160V Type of connector: pluggable terminal block Connector: plug Kind of connector: female Current rating: 5.5A Rated voltage: 0.16kV Number of pins: 3 Spatial orientation: straight Mechanical mounting: for cable Electrical mounting: spring clamp Contact material: phosphor bronze Contact plating: tinned Colour: green Flammability rating: UL94V-0 Body material: thermoplastic Wire size: 24AWG...16AWG Connector pinout layout: 1x3 Contacts pitch: 3.5mm Locking system: friction lock; threaded joint Operating temperature: -40...115°C |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| KD0310510000G |
|
Hersteller: Amphenol Anytek
Pluggable Terminal Blocks TB SPRING PLUG WF
Pluggable Terminal Blocks TB SPRING PLUG WF
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
| KD0310510000G |
|
Hersteller: AMPHENOL ANYTEK
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 5.5A; 160V
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Current rating: 5.5A
Rated voltage: 0.16kV
Number of pins: 3
Spatial orientation: straight
Mechanical mounting: for cable
Electrical mounting: spring clamp
Contact material: phosphor bronze
Contact plating: tinned
Colour: green
Flammability rating: UL94V-0
Body material: thermoplastic
Wire size: 24AWG...16AWG
Connector pinout layout: 1x3
Contacts pitch: 3.5mm
Locking system: friction lock; threaded joint
Operating temperature: -40...115°C
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 5.5A; 160V
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Current rating: 5.5A
Rated voltage: 0.16kV
Number of pins: 3
Spatial orientation: straight
Mechanical mounting: for cable
Electrical mounting: spring clamp
Contact material: phosphor bronze
Contact plating: tinned
Colour: green
Flammability rating: UL94V-0
Body material: thermoplastic
Wire size: 24AWG...16AWG
Connector pinout layout: 1x3
Contacts pitch: 3.5mm
Locking system: friction lock; threaded joint
Operating temperature: -40...115°C
