Produkte > AMPHENOL ANYTEK > KD1250520000G
KD1250520000G

KD1250520000G AMPHENOL ANYTEK


pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC89327A86160D6&compId=KD5.082.pdf?ci_sign=7067c8167fa75fd54b04208e1c6d5c3be0f6a9fe pVersion=0046&contRep=ZT&docId=005056AB281E1EDFB7AADB15298580DC&compId=KD.pdf?ci_sign=22a562ca0681864e793a95c3e7a95c003a205e30 Hersteller: AMPHENOL ANYTEK
Category: Pluggable terminal blocks

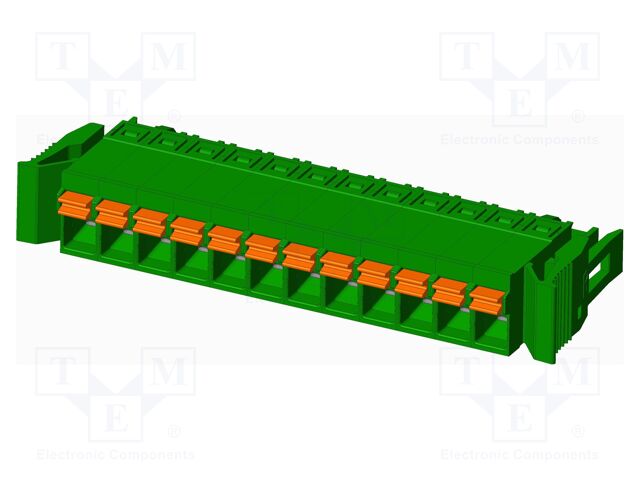

Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x12
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Current rating: 12A
Rated voltage: 300V
Number of pins: 12
Spatial orientation: straight
Mechanical mounting: for cable
Electrical mounting: spring clamp
Contact material: copper
Contact plating: tinned
Colour: green
Flammability rating: UL94V-0
Body material: thermoplastic
Wire size: 24AWG...14AWG
Contacts pitch: 5.08mm
Operating temperature: -40...115°C
Connector pinout layout: 1x12
Locking system: friction lock; latch
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details KD1250520000G AMPHENOL ANYTEK

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x12, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Current rating: 12A, Rated voltage: 300V, Number of pins: 12, Spatial orientation: straight, Mechanical mounting: for cable, Electrical mounting: spring clamp, Contact material: copper, Contact plating: tinned, Colour: green, Flammability rating: UL94V-0, Body material: thermoplastic, Wire size: 24AWG...14AWG, Contacts pitch: 5.08mm, Operating temperature: -40...115°C, Connector pinout layout: 1x12, Locking system: friction lock; latch, Anzahl je Verpackung: 1 Stücke.
