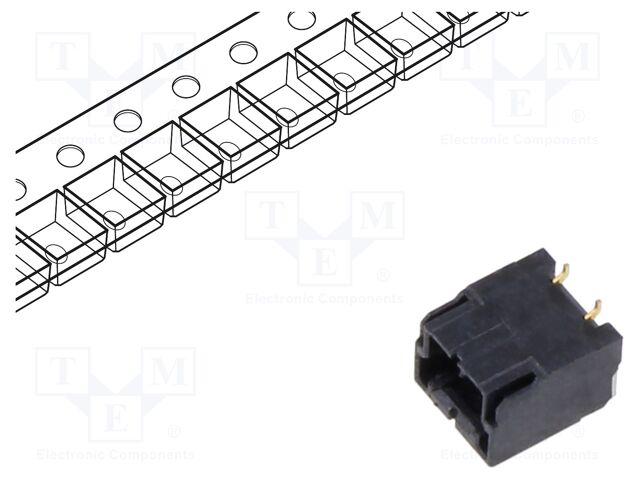

KW30-2S-2V(800) Hirose Electric Co Ltd
Hersteller: Hirose Electric Co Ltd
Description: CONN HDR 2.0MM SMD 2POS VERT
Features: Pick and Place, Solder Retention
Packaging: Tape & Reel (TR)
Connector Type: Header
Voltage Rating: 100VAC/DC
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Surface Mount
Number of Positions: 2
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Contact Finish - Post: Gold
Part Status: Active
Insulation Height: 0.224" (5.69mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Produktrezensionen
Produktbewertung abgeben
Technische Details KW30-2S-2V(800) Hirose Electric Co Ltd
Description: CONN HDR 2.0MM SMD 2POS VERT, Features: Pick and Place, Solder Retention, Packaging: Tape & Reel (TR), Connector Type: Header, Voltage Rating: 100VAC/DC, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Surface Mount, Number of Positions: 2, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Latch Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 8.00µin (0.203µm), Contact Finish - Post: Gold, Part Status: Active, Insulation Height: 0.224" (5.69mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP).
Weitere Produktangebote KW30-2S-2V(800) nach Preis ab 0.7 EUR bis 1.37 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
KW30-2S-2V(800) | Hirose Connector |
Headers & Wire Housings 1mm, Header, Single Row, 2 Pos, Center Lock Connector, KW30 Series |
auf Bestellung 2860 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
|
|
KW30-2S-2V(800) | Hirose Electric Co Ltd |
Description: CONN HDR 2.0MM SMD 2POS VERT Features: Pick and Place, Solder Retention Packaging: Cut Tape (CT) Connector Type: Header Voltage Rating: 100VAC/DC Current Rating (Amps): Varies by Wire Gauge Mounting Type: Surface Mount Number of Positions: 2 Number of Rows: 1 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 105°C Contact Type: Male Pin Fastening Type: Latch Lock Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Copper Alloy Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 8.00µin (0.203µm) Contact Finish - Post: Gold Part Status: Active Insulation Height: 0.224" (5.69mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) |
auf Bestellung 1951 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
| KW30-2S-2V(800) | HIROSE / HRS |
Description: HIROSE / HRS - KW30-2S-2V(800) - Stiftleiste, Wire-to-Board, 1 mm, 1 Reihe(n), 2 Kontakt(e), Oberflächenmontage, gerade tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: TBA Kontaktmaterial: Kupferlegierung usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 2Kontakt(e) euEccn: NLR Steckverbindersysteme: Wire-to-Board Steckverbindertyp: PCB Header Produktpalette: Signal Bee KW30 Series productTraceability: No Kontaktanschluss: Oberflächenmontage, gerade Anzahl der Reihen: 1Reihe(n) Rastermaß: 1mm SVHC: To Be Advised |
auf Bestellung 330 Stücke: Lieferzeit 14-21 Tag (e) |
|
| KW30-2S-2V(800) |
|
Hersteller: Hirose Connector
Headers & Wire Housings 1mm, Header, Single Row, 2 Pos, Center Lock Connector, KW30 Series
Headers & Wire Housings 1mm, Header, Single Row, 2 Pos, Center Lock Connector, KW30 Series
auf Bestellung 2860 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 3+ | 1.19 EUR |
| 10+ | 1.01 EUR |
| 100+ | 0.86 EUR |
| 250+ | 0.84 EUR |
| 800+ | 0.83 EUR |
| 2400+ | 0.77 EUR |
| 4800+ | 0.7 EUR |
| KW30-2S-2V(800) |
|
Hersteller: Hirose Electric Co Ltd
Description: CONN HDR 2.0MM SMD 2POS VERT
Features: Pick and Place, Solder Retention
Packaging: Cut Tape (CT)
Connector Type: Header
Voltage Rating: 100VAC/DC
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Surface Mount
Number of Positions: 2
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Contact Finish - Post: Gold
Part Status: Active
Insulation Height: 0.224" (5.69mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Description: CONN HDR 2.0MM SMD 2POS VERT
Features: Pick and Place, Solder Retention
Packaging: Cut Tape (CT)
Connector Type: Header
Voltage Rating: 100VAC/DC
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Surface Mount
Number of Positions: 2
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Contact Finish - Post: Gold
Part Status: Active
Insulation Height: 0.224" (5.69mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
auf Bestellung 1951 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 18+ | 1.21 EUR |
| 21+ | 1.04 EUR |
| 100+ | 0.88 EUR |
| KW30-2S-2V(800) |
|
Hersteller: HIROSE / HRS
Description: HIROSE / HRS - KW30-2S-2V(800) - Stiftleiste, Wire-to-Board, 1 mm, 1 Reihe(n), 2 Kontakt(e), Oberflächenmontage, gerade
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: TBA
Kontaktmaterial: Kupferlegierung
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 2Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Wire-to-Board
Steckverbindertyp: PCB Header
Produktpalette: Signal Bee KW30 Series
productTraceability: No
Kontaktanschluss: Oberflächenmontage, gerade
Anzahl der Reihen: 1Reihe(n)
Rastermaß: 1mm
SVHC: To Be Advised
Description: HIROSE / HRS - KW30-2S-2V(800) - Stiftleiste, Wire-to-Board, 1 mm, 1 Reihe(n), 2 Kontakt(e), Oberflächenmontage, gerade
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: TBA
Kontaktmaterial: Kupferlegierung
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 2Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Wire-to-Board
Steckverbindertyp: PCB Header
Produktpalette: Signal Bee KW30 Series
productTraceability: No
Kontaktanschluss: Oberflächenmontage, gerade
Anzahl der Reihen: 1Reihe(n)
Rastermaß: 1mm
SVHC: To Be Advised
auf Bestellung 330 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 183+ | 1.37 EUR |
| 249+ | 0.94 EUR |
| 272+ | 0.79 EUR |
