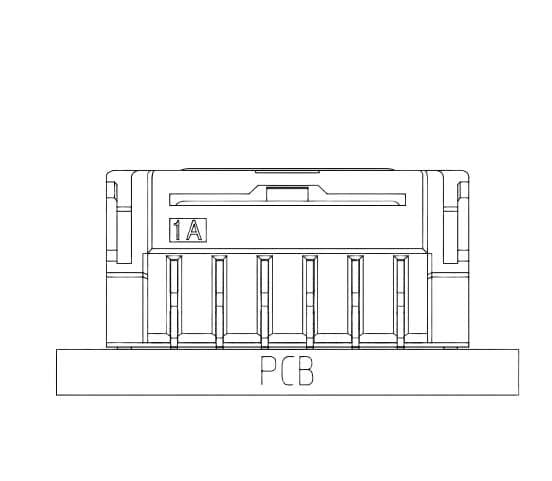

KW30-6S-1H(805) Hirose Electric Co Ltd
Hersteller: Hirose Electric Co Ltd
Description: RECEPTACLE, 1.0 A, AC 100.0 V, D
Packaging: Cut Tape (CT)
Features: Solder Retention
Connector Type: Receptacle
Voltage Rating: 100VAC/DC
Current Rating (Amps): 1A
Mounting Type: Surface Mount, Right Angle
Number of Positions: 6
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 105°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.039" (1.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Insulation Height: 0.130" (3.30mm)
Number of Rows: 1
| Anzahl | Preis |
|---|---|
| 9+ | 2.01 EUR |
| 11+ | 1.7 EUR |
| 100+ | 1.45 EUR |
| 500+ | 1.29 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details KW30-6S-1H(805) Hirose Electric Co Ltd
Description: RECEPTACLE, 1.0 A, AC 100.0 V, D, Packaging: Tape & Reel (TR), Features: Solder Retention, Connector Type: Receptacle, Voltage Rating: 100VAC/DC, Current Rating (Amps): 1A, Mounting Type: Surface Mount, Right Angle, Number of Positions: 6, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 105°C, Contact Type: Female Socket, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Insulation Color: Black, Pitch - Mating: 0.039" (1.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 8.00µin (0.203µm), Insulation Height: 0.130" (3.30mm), Number of Rows: 1.
Weitere Produktangebote KW30-6S-1H(805) nach Preis ab 1.39 EUR bis 2.39 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
KW30-6S-1H(805) | Hersteller : Hirose Connector |
Headers & Wire Housings Receptacle, 1.0 A, AC 100.0 V, DC 100.0 V, 6 Pos., 1.0mm Pitch |
auf Bestellung 1496 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
|
|
KW30-6S-1H(805) | Hersteller : Hirose Electric Co Ltd |
Description: RECEPTACLE, 1.0 A, AC 100.0 V, D Packaging: Tape & Reel (TR) Features: Solder Retention Connector Type: Receptacle Voltage Rating: 100VAC/DC Current Rating (Amps): 1A Mounting Type: Surface Mount, Right Angle Number of Positions: 6 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 105°C Contact Type: Female Socket Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Insulation Color: Black Pitch - Mating: 0.039" (1.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 8.00µin (0.203µm) Insulation Height: 0.130" (3.30mm) Number of Rows: 1 |
Produkt ist nicht verfügbar |
