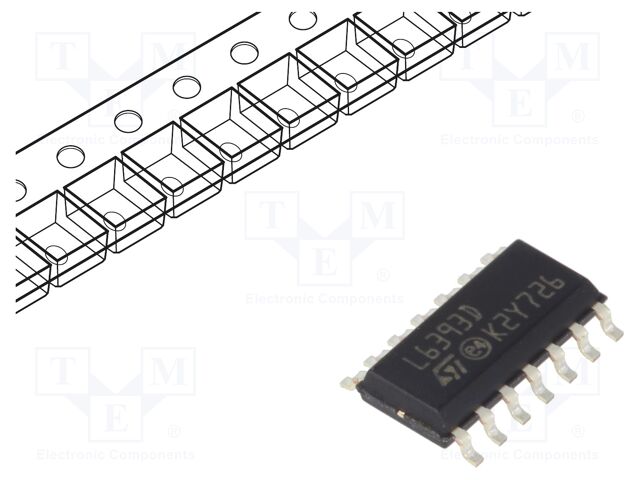

L6393D ST
Produktcode: 166254
zu Favoriten hinzufügen
Lieblingsprodukt
Hersteller: ST
Gehäuse: SO-14
Versorgungsspannung Uc, V: 10...20 В
Ausgangsspannung Vout, V: 580 В
Ein-/Ausschaltzeit Ton/Toff, ns: 125/125 ns
Produktrezensionen
Produktbewertung abgeben
Weitere Produktangebote L6393D nach Preis ab 2.88 EUR bis 6.24 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
L6393D | STMicroelectronics |
Category: MOSFET/IGBT drivers Description: IC: driver; push-pull; SO14; 0.29A; 580V; Ch: 2; 800kHz; Usup: 10÷20V Output voltage: 580V Kind of package: tube Case: SO14 Kind of integrated circuit: high-/low-side; IGBT gate driver; MOSFET gate driver Number of channels: 2 Frequency: 800kHz Topology: push-pull Mounting: SMD Supply voltage: 10...20V Output current: 0.29A Type of integrated circuit: driver Operating temperature: -40...125°C |
auf Bestellung 118 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
 |
L6393D | STMicroelectronics |
Description: IC GATE DRVR HALF-BRIDGE 14SO Part Status: Active Current - Peak Output (Source, Sink): 290mA, 430mA Logic Voltage - VIL, VIH: 1.1V, 1.9V Gate Type: IGBT, MOSFET (N-Channel) Number of Drivers: 2 Driven Configuration: Half-Bridge Channel Type: Synchronous Rise / Fall Time (Typ): 75ns, 35ns Supplier Device Package: 14-SO High Side Voltage - Max (Bootstrap): 600 V Input Type: Non-Inverting Voltage - Supply: 10V ~ 20V Operating Temperature: -40°C ~ 125°C (TJ) Mounting Type: Surface Mount Package / Case: 14-SOIC (0.154", 3.90mm Width) Packaging: Tube DigiKey Programmable: Not Verified |
auf Bestellung 979 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
L6393D | STMicroelectronics |
Gate Drivers HALF-BRIDGE GATE DRIVER |
auf Bestellung 1447 Stücke: Lieferzeit 10-14 Tag (e) |
|
| L6393D |
|
Hersteller: STMicroelectronics
Category: MOSFET/IGBT drivers
Description: IC: driver; push-pull; SO14; 0.29A; 580V; Ch: 2; 800kHz; Usup: 10÷20V
Output voltage: 580V
Kind of package: tube
Case: SO14
Kind of integrated circuit: high-/low-side; IGBT gate driver; MOSFET gate driver
Number of channels: 2
Frequency: 800kHz
Topology: push-pull
Mounting: SMD
Supply voltage: 10...20V
Output current: 0.29A
Type of integrated circuit: driver
Operating temperature: -40...125°C
Category: MOSFET/IGBT drivers
Description: IC: driver; push-pull; SO14; 0.29A; 580V; Ch: 2; 800kHz; Usup: 10÷20V
Output voltage: 580V
Kind of package: tube
Case: SO14
Kind of integrated circuit: high-/low-side; IGBT gate driver; MOSFET gate driver
Number of channels: 2
Frequency: 800kHz
Topology: push-pull
Mounting: SMD
Supply voltage: 10...20V
Output current: 0.29A
Type of integrated circuit: driver
Operating temperature: -40...125°C
auf Bestellung 118 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 20+ | 4.27 EUR |
| 27+ | 3.21 EUR |
| 30+ | 2.88 EUR |
| L6393D |
|
Hersteller: STMicroelectronics
Description: IC GATE DRVR HALF-BRIDGE 14SO
Part Status: Active
Current - Peak Output (Source, Sink): 290mA, 430mA
Logic Voltage - VIL, VIH: 1.1V, 1.9V
Gate Type: IGBT, MOSFET (N-Channel)
Number of Drivers: 2
Driven Configuration: Half-Bridge
Channel Type: Synchronous
Rise / Fall Time (Typ): 75ns, 35ns
Supplier Device Package: 14-SO
High Side Voltage - Max (Bootstrap): 600 V
Input Type: Non-Inverting
Voltage - Supply: 10V ~ 20V
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Packaging: Tube
DigiKey Programmable: Not Verified
Description: IC GATE DRVR HALF-BRIDGE 14SO
Part Status: Active
Current - Peak Output (Source, Sink): 290mA, 430mA
Logic Voltage - VIL, VIH: 1.1V, 1.9V
Gate Type: IGBT, MOSFET (N-Channel)
Number of Drivers: 2
Driven Configuration: Half-Bridge
Channel Type: Synchronous
Rise / Fall Time (Typ): 75ns, 35ns
Supplier Device Package: 14-SO
High Side Voltage - Max (Bootstrap): 600 V
Input Type: Non-Inverting
Voltage - Supply: 10V ~ 20V
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Packaging: Tube
DigiKey Programmable: Not Verified
auf Bestellung 979 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 4+ | 6.07 EUR |
| 10+ | 4.57 EUR |
| 50+ | 3.96 EUR |
| 100+ | 3.77 EUR |
| 250+ | 3.58 EUR |
| 500+ | 3.46 EUR |
| L6393D |
|
Hersteller: STMicroelectronics
Gate Drivers HALF-BRIDGE GATE DRIVER
Gate Drivers HALF-BRIDGE GATE DRIVER
auf Bestellung 1447 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 6.24 EUR |
| 10+ | 4.69 EUR |
| 25+ | 3.67 EUR |
| 100+ | 3.52 EUR |
| 250+ | 3.42 EUR |
| 500+ | 3.33 EUR |
| 1000+ | 3.17 EUR |
