Produkte > ONPOW > LAS2GQF-11DT/B/24V/S
LAS2GQF-11DT/B/24V/S

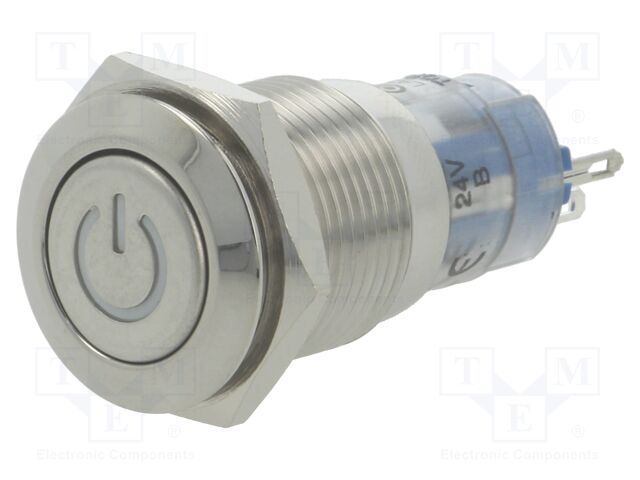

LAS2GQF-11DT/B/24V/S ONPOW

pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAED92C7A0ACE60C7&compId=LAS2GQF-DT.pdf?ci_sign=3fb361be5e18f752363b89fb3d42c69f92805b9b Hersteller: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP40
Operating temperature: -20...55°C
Body material: stainless steel
Contact material: silver alloy
Type of switch: vandal resistant
Contacts configuration: SPDT
AC contacts rating @R: 0.5A / 220V AC
DC contacts rating @R: 1A / 24V DC
Switching method: ON-(ON)
Stable positions number: 1
Operating Force: 4N
Illumination: LED; point
Illumination voltage: 24V
Button marking: POWER
Body colour: silver
Backlight colour: blue
Button shape: flat
Related items: M12-16F; M20-11D
Number of positions: 2
Ring shape: rounded
Mechanical durability: 200000 cycles
Test voltage: 1.5kV
Max. contact resistance:: 50mΩ
IP rating: IP40
Mounting hole diameter: Ø16mm
Leads: for soldering
Electrical life: 50000 cycles
auf Bestellung 5 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
5+14.3 EUR
Mindestbestellmenge: 5
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details LAS2GQF-11DT/B/24V/S ONPOW

Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP40, Operating temperature: -20...55°C, Body material: stainless steel, Contact material: silver alloy, Type of switch: vandal resistant, Contacts configuration: SPDT, AC contacts rating @R: 0.5A / 220V AC, DC contacts rating @R: 1A / 24V DC, Switching method: ON-(ON), Stable positions number: 1, Operating Force: 4N, Illumination: LED; point, Illumination voltage: 24V, Button marking: POWER, Body colour: silver, Backlight colour: blue, Button shape: flat, Related items: M12-16F; M20-11D, Number of positions: 2, Ring shape: rounded, Mechanical durability: 200000 cycles, Test voltage: 1.5kV, Max. contact resistance:: 50mΩ, IP rating: IP40, Mounting hole diameter: Ø16mm, Leads: for soldering, Electrical life: 50000 cycles.
