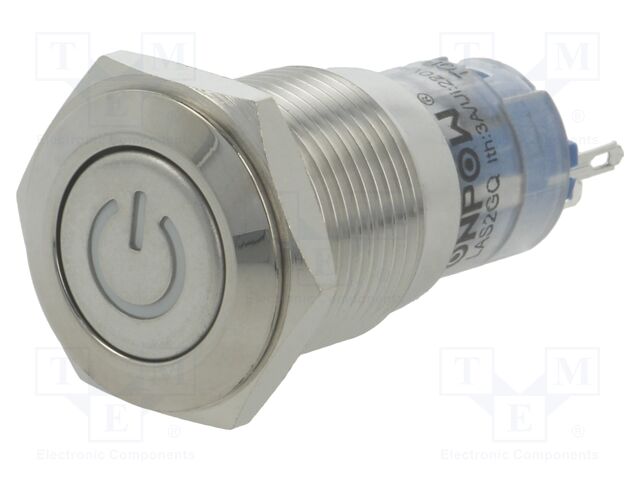

LAS2GQF-11ZDT/G/24V/S ONPOW
Hersteller: ONPOWCategory: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP40
Related items: M12-16F; M20-11D
Mechanical durability: 200000 cycles
Test voltage: 1.5kV
Max. contact resistance:: 50mΩ
Operating temperature: -20...55°C
IP rating: IP40
Mounting hole diameter: Ø16mm
Leads: for soldering
Electrical life: 50000 cycles
Body material: stainless steel
Contact material: silver alloy
Type of switch: vandal resistant
Contacts configuration: SPDT
AC contacts rating @R: 0.5A / 220V AC
DC contacts rating @R: 1A / 24V DC
Switching method: ON-ON
Stable positions number: 2
Operating Force: 4N
Illumination: LED; point
Illumination voltage: 24V
Button marking: POWER
Body colour: silver
Backlight colour: green
Button shape: flat
Number of positions: 2
Ring shape: rounded
auf Bestellung 6 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 6+ | 11.91 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details LAS2GQF-11ZDT/G/24V/S ONPOW
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP40, Related items: M12-16F; M20-11D, Mechanical durability: 200000 cycles, Test voltage: 1.5kV, Max. contact resistance:: 50mΩ, Operating temperature: -20...55°C, IP rating: IP40, Mounting hole diameter: Ø16mm, Leads: for soldering, Electrical life: 50000 cycles, Body material: stainless steel, Contact material: silver alloy, Type of switch: vandal resistant, Contacts configuration: SPDT, AC contacts rating @R: 0.5A / 220V AC, DC contacts rating @R: 1A / 24V DC, Switching method: ON-ON, Stable positions number: 2, Operating Force: 4N, Illumination: LED; point, Illumination voltage: 24V, Button marking: POWER, Body colour: silver, Backlight colour: green, Button shape: flat, Number of positions: 2, Ring shape: rounded.
