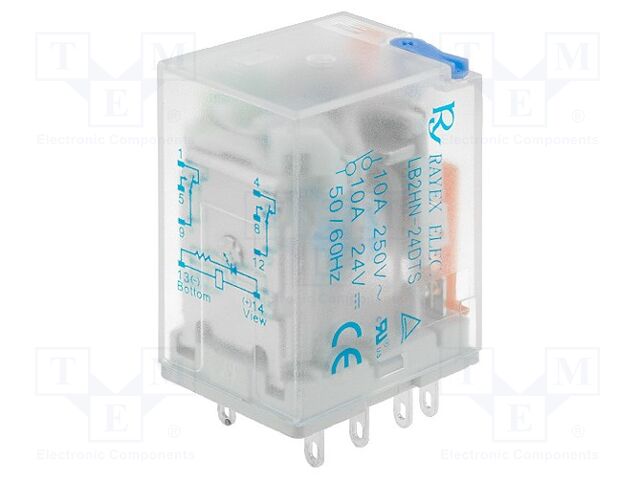

LB2HN-24VDTS Recoy/RAYEX ELECTRONICS
Hersteller: Recoy/RAYEX ELECTRONICSCategory: Industrial Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 10A
Body dimensions: 28x21.5x35mm
Manufacturer series: LB2
Operating temperature: -40...60°C
Type of relay: electromagnetic
Related items: G4/2; GZM3; GZT2
Relay variant: industrial
Indication: LED
Mounting: socket
Design: test button
Leads dimensions: 2.5x0.5mm
Operate time: 15ms
Release time: 15ms
Contact resistance: 100mΩ
Coil power consumption: 1.1W
Contact current max.: 10A
DC contacts rating @R: 10A / 24V DC
AC contacts rating @R: 10A / 240V AC
Rated coil voltage: 24V DC
Switched voltage: max. 30V DC; max. 240V AC
Coil resistance: 650Ω
Electrical life: 100000 cycles
Mechanical durability: 10000000 cycles
Leads: connectors
Contacts configuration: DPDT
Anzahl je Verpackung: 1 Stücke
auf Bestellung 735 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 16+ | 4.6 EUR |
| 19+ | 3.82 EUR |
| 23+ | 3.19 EUR |
| 24+ | 3.02 EUR |
| 100+ | 2.93 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details LB2HN-24VDTS Recoy/RAYEX ELECTRONICS
Category: Industrial Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 10A, Body dimensions: 28x21.5x35mm, Manufacturer series: LB2, Operating temperature: -40...60°C, Type of relay: electromagnetic, Related items: G4/2; GZM3; GZT2, Relay variant: industrial, Indication: LED, Mounting: socket, Design: test button, Leads dimensions: 2.5x0.5mm, Operate time: 15ms, Release time: 15ms, Contact resistance: 100mΩ, Coil power consumption: 1.1W, Contact current max.: 10A, DC contacts rating @R: 10A / 24V DC, AC contacts rating @R: 10A / 240V AC, Rated coil voltage: 24V DC, Switched voltage: max. 30V DC; max. 240V AC, Coil resistance: 650Ω, Electrical life: 100000 cycles, Mechanical durability: 10000000 cycles, Leads: connectors, Contacts configuration: DPDT, Anzahl je Verpackung: 1 Stücke.
