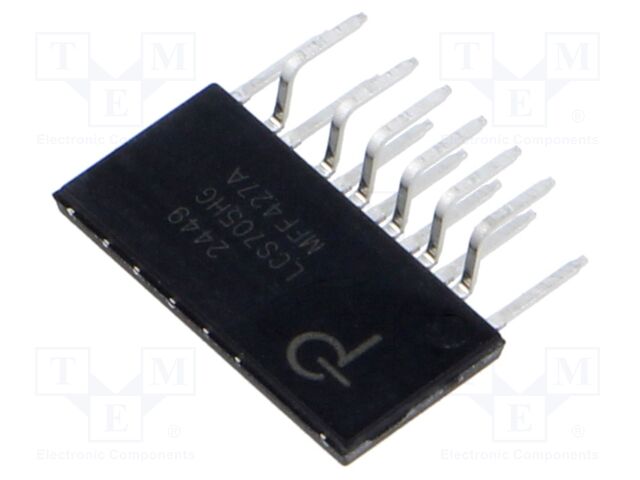

LCS705HG POWER INTEGRATIONS
Hersteller: POWER INTEGRATIONSCategory: Voltage regulators - PWM circuits
Description: IC: PMIC; AC/DC switcher,SMPS controller; 25kHz÷1MHz; eSIP-16J
Type of integrated circuit: PMIC
Kind of integrated circuit: AC/DC switcher; SMPS controller
Case: eSIP-16J
Mounting: THT
Operating temperature: -40...150°C
Frequency: 25kHz...1MHz
Topology: push-pull; resonant LLC
Manufacturer series: HiperLCS
Breakdown voltage: 530V
Anzahl je Verpackung: 1 Stücke
auf Bestellung 55 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 8+ | 9.28 EUR |
| 10+ | 7.21 EUR |
| 11+ | 6.81 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details LCS705HG POWER INTEGRATIONS
Description: IC HALF BRIDGE DRIVER ESIP16J, Features: Auto Restart, Slew Rate Controlled, Packaging: Tube, Package / Case: 16-SSIP, 13 Leads, Exposed Pad, Formed Leads, Mounting Type: Through Hole, Interface: On/Off, Operating Temperature: -40°C ~ 150°C (TJ), Output Configuration: Half Bridge, Voltage - Supply: 11.4V ~ 15V, Rds On (Typ): 400mOhm, Applications: General Purpose, Current - Peak Output: 19.3A, Technology: Power MOSFET, Voltage - Load: 11.4V ~ 15V, Supplier Device Package: eSIP-16J, Fault Protection: Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO, Load Type: Inductive, Part Status: Active.
Weitere Produktangebote LCS705HG nach Preis ab 6.81 EUR bis 11.55 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
LCS705HG | Hersteller : POWER INTEGRATIONS |
Category: Voltage regulators - PWM circuits Description: IC: PMIC; AC/DC switcher,SMPS controller; 25kHz÷1MHz; eSIP-16J Type of integrated circuit: PMIC Kind of integrated circuit: AC/DC switcher; SMPS controller Case: eSIP-16J Mounting: THT Operating temperature: -40...150°C Frequency: 25kHz...1MHz Topology: push-pull; resonant LLC Manufacturer series: HiperLCS Breakdown voltage: 530V |
auf Bestellung 55 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
 |
LCS705HG | Hersteller : Power Integrations |
Description: IC HALF BRIDGE DRIVER ESIP16J Features: Auto Restart, Slew Rate Controlled Packaging: Tube Package / Case: 16-SSIP, 13 Leads, Exposed Pad, Formed Leads Mounting Type: Through Hole Interface: On/Off Operating Temperature: -40°C ~ 150°C (TJ) Output Configuration: Half Bridge Voltage - Supply: 11.4V ~ 15V Rds On (Typ): 400mOhm Applications: General Purpose Current - Peak Output: 19.3A Technology: Power MOSFET Voltage - Load: 11.4V ~ 15V Supplier Device Package: eSIP-16J Fault Protection: Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO Load Type: Inductive Part Status: Active |
auf Bestellung 862 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
LCS705HG | Hersteller : Power Integrations |
Gate Drivers 350W HV CONTROLLER MOSFET |
auf Bestellung 3237 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
LCS705HG | Hersteller : POWER INTEGRATIONS |
Description: POWER INTEGRATIONS - LCS705HG - LLC-CONTROLLER, 350W, 1MHZ, 16SIP tariffCode: 85423990 IC-Funktion: Halbbrücken-LLC-Resonanzsteuerungs-IC für Beleuchtung rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: YES usEccn: EAR99 IC-Bauform: SIP Betriebstemperatur, min.: -40°C Versorgungsspannung, min.: 11.5V euEccn: NLR Qualifizierungsstandard der Automobilindustrie: - Anzahl der Pins: 16Pin(s) Produktpalette: HiperLCS Series productTraceability: No Versorgungsspannung, max.: 15V Betriebstemperatur, max.: 150°C |
auf Bestellung 319 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||
| LCS705HG | Hersteller : Power Integrations |
Controller 13-Pin ESIP-J |
Produkt ist nicht verfügbar |
