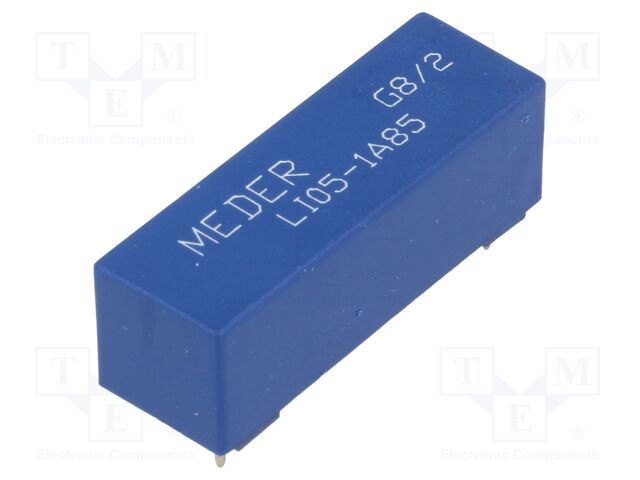

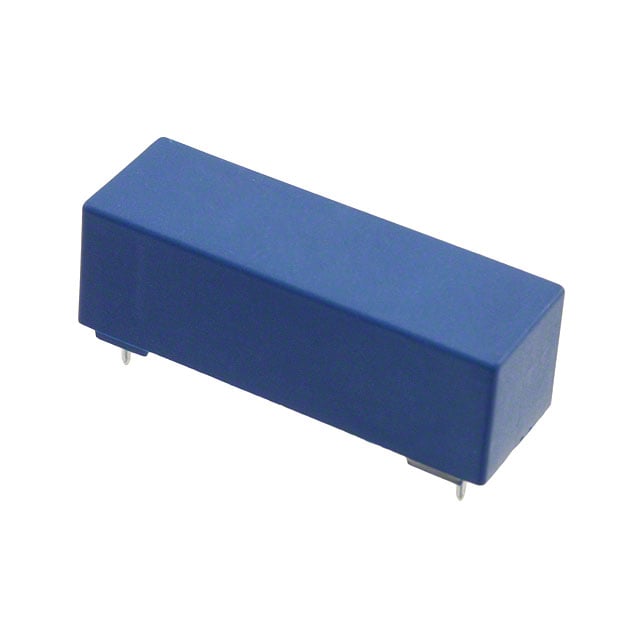

LI05-1A85 MEDER
Hersteller: MEDERCategory: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 5VDC; 2.5A; max.1kVDC; 100W
Body dimensions: 30x10x10.4mm
Manufacturer series: LI
Operating temperature: -20...70°C
Release time: 0.1ms
Operate time: 1ms
Terminal pitch: 5.08mm
Coil power consumption: 125mW
Contact resistance: 0.15Ω
Contact current max.: 2.5A
Rated coil voltage: 5V DC
Switching capacity: 100W
Coil resistance: 200Ω
Switched voltage: max. 1kV AC; max. 1kV DC
Breakdown voltage: 4.2kV
Min. insulation resistance: 1TΩ
Mounting: PCB
Type of relay: reed switch
Contacts configuration: SPST-NO
auf Bestellung 293 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 6+ | 12.07 EUR |
| 12+ | 6.03 EUR |
| 13+ | 5.71 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details LI05-1A85 MEDER
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 5VDC; 2.5A; max.1kVDC; 100W, Body dimensions: 30x10x10.4mm, Manufacturer series: LI, Operating temperature: -20...70°C, Release time: 0.1ms, Operate time: 1ms, Terminal pitch: 5.08mm, Coil power consumption: 125mW, Contact resistance: 0.15Ω, Contact current max.: 2.5A, Rated coil voltage: 5V DC, Switching capacity: 100W, Coil resistance: 200Ω, Switched voltage: max. 1kV AC; max. 1kV DC, Breakdown voltage: 4.2kV, Min. insulation resistance: 1TΩ, Mounting: PCB, Type of relay: reed switch, Contacts configuration: SPST-NO, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote LI05-1A85 nach Preis ab 5.71 EUR bis 17.18 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
LI05-1A85 | Hersteller : MEDER |
Category: Reed Electromagnetic Relays Description: Relay: reed switch; SPST-NO; Ucoil: 5VDC; 2.5A; max.1kVDC; 100W Body dimensions: 30x10x10.4mm Manufacturer series: LI Operating temperature: -20...70°C Release time: 0.1ms Operate time: 1ms Terminal pitch: 5.08mm Coil power consumption: 125mW Contact resistance: 0.15Ω Contact current max.: 2.5A Rated coil voltage: 5V DC Switching capacity: 100W Coil resistance: 200Ω Switched voltage: max. 1kV AC; max. 1kV DC Breakdown voltage: 4.2kV Min. insulation resistance: 1TΩ Mounting: PCB Type of relay: reed switch Contacts configuration: SPST-NO Anzahl je Verpackung: 1 Stücke |
auf Bestellung 293 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||||||
 |
LI05-1A85 | Hersteller : StandexMeder Electronics |
Reed Relay 5VDC 200Ohm 1A SPST-NO(30x10x10.4)mm THT Dry |
auf Bestellung 1600 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
|
|
LI05-1A85 | Hersteller : StandexMeder Electronics |
Reed Relay 5VDC 200Ohm 1A SPST-NO(30x10x10.4)mm THT Dry |
auf Bestellung 1600 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
LI05-1A85 | Hersteller : Standex-Meder Electronics |
Description: RELAY REED SPST 1A 5V Packaging: Tube Mounting Type: Through Hole Coil Voltage: 5VDC Operating Temperature: -20°C ~ 70°C Termination Style: PC Pin Coil Current: 25 mA Coil Type: Non Latching Seal Rating: Sealed - Fully Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 1 A Switching Voltage: 1000VAC, 1000VDC - Max Must Release Voltage: 0.75 VDC Must Operate Voltage: 3.5 VDC Operate Time: 1.1 ms Release Time: 0.1 ms |
auf Bestellung 1771 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
|
|
LI05-1A85 | Hersteller : StandexMeder Electronics |
Reed Relay 5VDC 200Ohm 1A SPST-NO(30x10x10.4)mm THT Dry |
auf Bestellung 243 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
LI05-1A85 | Hersteller : MEDER electronic (Standex) |
Reed Relays 5V PC MOUNT |
auf Bestellung 41 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
LI05-1A85 | Hersteller : STANDEXMEDER |
Description: STANDEXMEDER - LI05-1A85 - Reed-Relais, SPST-NO, 5 VDC, LI Series, Durchsteckmontage, 200 ohm, 1 A tariffCode: 85364900 productTraceability: No Schaltspannung, max.: 1kV rohsCompliant: YES Spulenwiderstand: 200ohm Relaismontage: Durchsteckmontage Schaltstrom, max.: 1A Kontaktkonfiguration: SPST-NO Spulenspannung: 5VDC euEccn: NLR hazardous: false rohsPhthalatesCompliant: YES usEccn: EAR99 Produktpalette: LI Series |
auf Bestellung 265 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
 |
LI05-1A85 | Hersteller : StandexMeder Electronics GmbH |
Reed Relay 5VDC 200Ohm 1A SPST-NO(30x10x10.4)mm THT Dry |
auf Bestellung 1600 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
 |
LI05-1A85 Produktcode: 92377
zu Favoriten hinzufügen
Lieblingsprodukt
|
Verschiedene Bauteile > Other components 3 |
Produkt ist nicht verfügbar
|
||||||||||||||||||
|
|
LI05-1A85 | Hersteller : StandexMeder Electronics |
Reed Relay 5VDC 200Ohm 1A SPST-NO(30x10x10.4)mm THT Dry |
Produkt ist nicht verfügbar |
