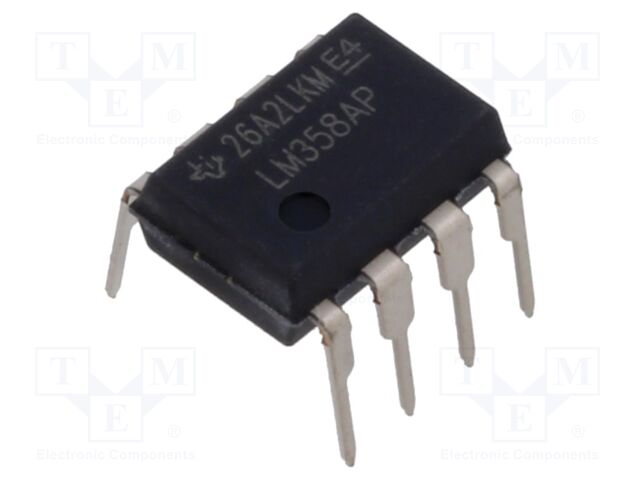

LM358APE4 TEXAS INSTRUMENTS

Category: THT operational amplifiers
Description: IC: operational amplifier; 0.7MHz; Ch: 2; DIP8; ±1.5÷16VDC,3÷32VDC
Input offset voltage: 5mV
Kind of package: tube
Slew rate: 0.3V/μs
Input offset current: 75nA
Input bias current: 0.2µA
Voltage supply range: ± 1.5...16V DC; 3...32V DC
Mounting: THT
Operating temperature: 0...70°C
Case: DIP8
Type of integrated circuit: operational amplifier
Number of channels: 2
Bandwidth: 0.7MHz
auf Bestellung 166 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis |
---|---|
76+ | 0.94 EUR |
166+ | 0.43 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details LM358APE4 TEXAS INSTRUMENTS
Description: DUAL, 30-V, 700-KHZ OPERATIONAL, Packaging: Tube, Package / Case: 8-DIP (0.300", 7.62mm), Output Type: Push-Pull, Mounting Type: Through Hole, Amplifier Type: General Purpose, Operating Temperature: 0°C ~ 70°C (TA), Current - Supply: 500µA (x2 Channels), Slew Rate: 0.3V/µs, Gain Bandwidth Product: 700 kHz, Current - Input Bias: 15 nA, Voltage - Input Offset: 2 mV, Supplier Device Package: 8-PDIP, Part Status: Active, Number of Circuits: 2, Current - Output / Channel: 30 mA, Voltage - Supply Span (Min): 3 V, Voltage - Supply Span (Max): 30 V, Grade: Automotive, Qualification: AEC-Q100.
Weitere Produktangebote LM358APE4 nach Preis ab 0.21 EUR bis 0.98 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
LM358APE4 | Hersteller : TEXAS INSTRUMENTS |
![]() Description: IC: operational amplifier; 0.7MHz; Ch: 2; DIP8; ±1.5÷16VDC,3÷32VDC Input offset voltage: 5mV Kind of package: tube Slew rate: 0.3V/μs Input offset current: 75nA Input bias current: 0.2µA Voltage supply range: ± 1.5...16V DC; 3...32V DC Mounting: THT Operating temperature: 0...70°C Case: DIP8 Type of integrated circuit: operational amplifier Number of channels: 2 Bandwidth: 0.7MHz Anzahl je Verpackung: 1 Stücke |
auf Bestellung 166 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||||||
![]() |
LM358APE4 | Hersteller : Texas Instruments |
![]() |
auf Bestellung 507 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
![]() |
LM358APE4 | Hersteller : Texas Instruments |
![]() |
Produkt ist nicht verfügbar |
|||||||||||||||||
![]() |
LM358APE4 | Hersteller : Texas Instruments |
![]() |
Produkt ist nicht verfügbar |
|||||||||||||||||
![]() |
LM358APE4 | Hersteller : Texas Instruments |
![]() |
Produkt ist nicht verfügbar |
|||||||||||||||||
![]() |
LM358APE4 | Hersteller : Texas Instruments |
![]() Packaging: Tube Package / Case: 8-DIP (0.300", 7.62mm) Output Type: Push-Pull Mounting Type: Through Hole Amplifier Type: General Purpose Operating Temperature: 0°C ~ 70°C (TA) Current - Supply: 500µA (x2 Channels) Slew Rate: 0.3V/µs Gain Bandwidth Product: 700 kHz Current - Input Bias: 15 nA Voltage - Input Offset: 2 mV Supplier Device Package: 8-PDIP Part Status: Active Number of Circuits: 2 Current - Output / Channel: 30 mA Voltage - Supply Span (Min): 3 V Voltage - Supply Span (Max): 30 V Grade: Automotive Qualification: AEC-Q100 |
Produkt ist nicht verfügbar |
