Produkte > RECOY/RAYEX ELECTRONICS > LMR2-5D

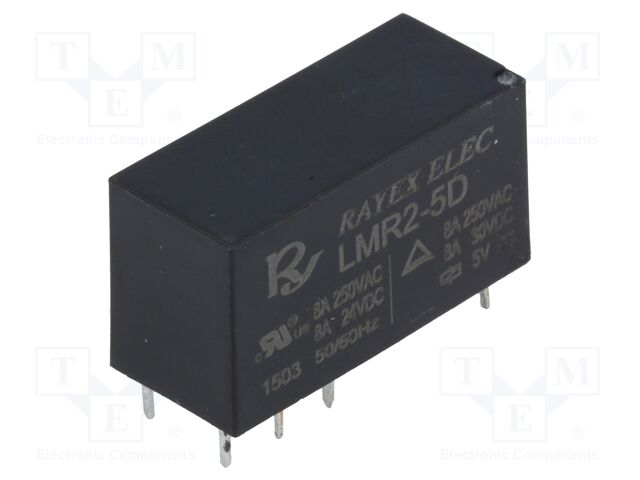

LMR2-5D

LMR2-5D Recoy/RAYEX ELECTRONICS

pVersion=0046&contRep=ZT&docId=005056AB281E1EDCB89814B6D5E620D2&compId=LMR-series.pdf?ci_sign=73233b57df1635e9bea1edeb57a3cd0d13b9d586 Hersteller: Recoy/RAYEX ELECTRONICS
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 5A; LMR2
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 5A
AC contacts rating @R: 5A / 250V AC
DC contacts rating @R: 5A / 30V DC
Manufacturer series: LMR2
Switched voltage: max. 30V DC; max. 250V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 47Ω
Operate time: 15ms
Body dimensions: 29x15.5x12.5mm
Release time: 10ms
Coil power consumption: 530mW
Contact resistance: 100mΩ
Contact material: AgCdO
Terminal pitch: 5mm
Coil current: 106.4mA
Operating temperature: -40...80°C
Anzahl je Verpackung: 1 Stücke
auf Bestellung 836 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
25+2.9 EUR
27+2.66 EUR
38+1.92 EUR
40+1.82 EUR
500+1.74 EUR
Mindestbestellmenge: 25
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details LMR2-5D Recoy/RAYEX ELECTRONICS

Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 5A; LMR2, Type of relay: electromagnetic, Contacts configuration: DPDT, Rated coil voltage: 5V DC, Contact current max.: 5A, AC contacts rating @R: 5A / 250V AC, DC contacts rating @R: 5A / 30V DC, Manufacturer series: LMR2, Switched voltage: max. 30V DC; max. 250V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 47Ω, Operate time: 15ms, Body dimensions: 29x15.5x12.5mm, Release time: 10ms, Coil power consumption: 530mW, Contact resistance: 100mΩ, Contact material: AgCdO, Terminal pitch: 5mm, Coil current: 106.4mA, Operating temperature: -40...80°C, Anzahl je Verpackung: 1 Stücke.
