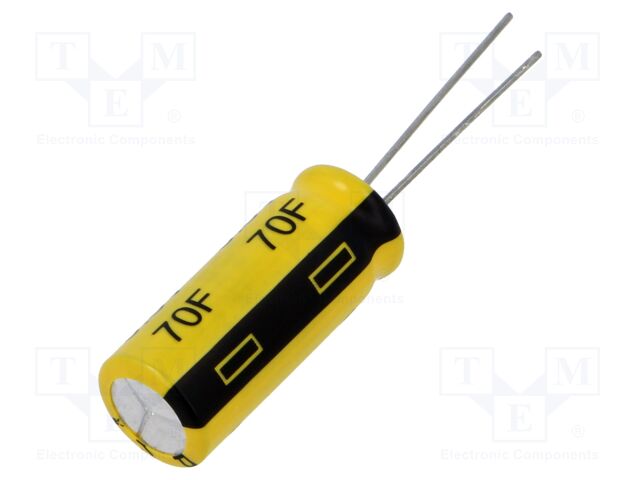

LY13R810025M706R-L CAP-XX
Hersteller: CAP-XX
Category: Supercapacitors
Description: Supercapacitor; THT; 70F; 2.5÷3.8VDC; ±20%; Ø10x25mm; 165mΩ; Ir: 8uA
Kind of capacitor: lithium-ion
Type of capacitor: supercapacitor
Mounting: THT
Operating temperature: -25...70°C
Tolerance: ±20%
Leakage current: 8µA
Height: 25mm
Diameter: 10mm
Body dimensions: Ø10x25mm
ESR value: 165mΩ
Operating voltage: 2.5...3.8V DC
Capacitance: 70F
Max. forward impulse current: 7.3A
| Anzahl | Preis |
|---|---|
| 15+ | 4.98 EUR |
| 17+ | 4.36 EUR |
| 18+ | 3.99 EUR |
| 25+ | 3.72 EUR |
| 50+ | 3.6 EUR |
| 100+ | 3.56 EUR |
| 200+ | 3.53 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details LY13R810025M706R-L CAP-XX
Category: Supercapacitors, Description: Supercapacitor; THT; 70F; 2.5÷3.8VDC; ±20%; Ø10x25mm; 165mΩ; Ir: 8uA, Kind of capacitor: lithium-ion, Type of capacitor: supercapacitor, Mounting: THT, Operating temperature: -25...70°C, Tolerance: ±20%, Leakage current: 8µA, Height: 25mm, Diameter: 10mm, Body dimensions: Ø10x25mm, ESR value: 165mΩ, Operating voltage: 2.5...3.8V DC, Capacitance: 70F, Max. forward impulse current: 7.3A.
Weitere Produktangebote LY13R810025M706R-L
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
|---|---|---|---|---|---|
 |
LY13R810025M706R-L | CAP-XX |
Description: LITHIUM-ION CAPACITORS Tolerance: ±20% Packaging: Tray Package / Case: Radial, Can Size / Dimension: 0.394" Dia (10.00mm) Mounting Type: Through Hole Operating Temperature: -25°C ~ 70°C Lead Spacing: 0.197" (5.00mm) Termination: PC Pins ESR (Equivalent Series Resistance): 65mOhm @ 1kHz Lifetime @ Temp.: 1000 Hrs @ 70°C Height - Seated (Max): 1.063" (27.00mm) Capacitance: 70 F Voltage - Rated: 3.8 V |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| LY13R810025M706R-L |
|
Hersteller: CAP-XX
Description: LITHIUM-ION CAPACITORS
Tolerance: ±20%
Packaging: Tray
Package / Case: Radial, Can
Size / Dimension: 0.394" Dia (10.00mm)
Mounting Type: Through Hole
Operating Temperature: -25°C ~ 70°C
Lead Spacing: 0.197" (5.00mm)
Termination: PC Pins
ESR (Equivalent Series Resistance): 65mOhm @ 1kHz
Lifetime @ Temp.: 1000 Hrs @ 70°C
Height - Seated (Max): 1.063" (27.00mm)
Capacitance: 70 F
Voltage - Rated: 3.8 V
Description: LITHIUM-ION CAPACITORS
Tolerance: ±20%
Packaging: Tray
Package / Case: Radial, Can
Size / Dimension: 0.394" Dia (10.00mm)
Mounting Type: Through Hole
Operating Temperature: -25°C ~ 70°C
Lead Spacing: 0.197" (5.00mm)
Termination: PC Pins
ESR (Equivalent Series Resistance): 65mOhm @ 1kHz
Lifetime @ Temp.: 1000 Hrs @ 70°C
Height - Seated (Max): 1.063" (27.00mm)
Capacitance: 70 F
Voltage - Rated: 3.8 V
