Produkte > HARWIN > M20-7830246
M20-7830246

M20-7830246 HARWIN

M20-7830246.pdf Hersteller: HARWIN
Category: Raster signal connectors 2,54mm

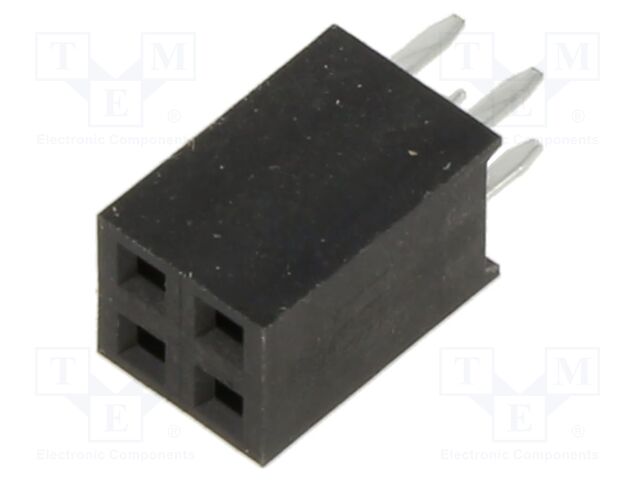

Description: Socket; pin strips; female; 2.54mm; PIN: 4; THT; on PCBs; tinned
Connector: socket
Type of connector: pin strips
Kind of connector: female
Contacts pitch: 2.54mm
Number of pins: 4
Electrical mounting: THT
Mechanical mounting: on PCBs
Contact plating: tinned
Connector pinout layout: 2x2
Spatial orientation: straight
Anzahl je Verpackung: 1 Stücke
auf Bestellung 583 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis ohne MwSt
86+0.84 EUR
100+ 0.72 EUR
129+ 0.56 EUR
136+ 0.53 EUR
Mindestbestellmenge: 86
Produktrezensionen
Produktbewertung abgeben

Technische Details M20-7830246 HARWIN

Description: CONN RCPT 4POS 0.1 TIN PCB, Packaging: Tube, Connector Type: Receptacle, Voltage Rating: 1000V, Current Rating (Amps): 3A, Mounting Type: Through Hole, Number of Positions: 4, Style: Board to Board or Cable, Operating Temperature: -40°C ~ 105°C, Contact Type: Female Socket, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Mated Stacking Heights: 11.04mm, 12.63mm, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Tin, Contact Finish - Post: Tin, Part Status: Active, Contact Length - Post: 0.118" (3.00mm), Insulation Height: 0.335" (8.51mm), Row Spacing - Mating: 0.100" (2.54mm), Number of Rows: 2.

Weitere Produktangebote M20-7830246 nach Preis ab 0.53 EUR bis 2.91 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis ohne MwSt
M20-7830246 M20-7830246 Hersteller : HARWIN M20-7830246.pdf Category: Raster signal connectors 2,54mm
Description: Socket; pin strips; female; 2.54mm; PIN: 4; THT; on PCBs; tinned
Connector: socket
Type of connector: pin strips
Kind of connector: female
Contacts pitch: 2.54mm
Number of pins: 4
Electrical mounting: THT
Mechanical mounting: on PCBs
Contact plating: tinned
Connector pinout layout: 2x2
Spatial orientation: straight
auf Bestellung 583 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis ohne MwSt
86+0.84 EUR
100+ 0.72 EUR
129+ 0.56 EUR
136+ 0.53 EUR
Mindestbestellmenge: 86
M20-7830246 M20-7830246 Hersteller : Harwin Inc. M20-783.pdf Description: CONN RCPT 4POS 0.1 TIN PCB
Packaging: Tube
Connector Type: Receptacle
Voltage Rating: 1000V
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 4
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 105°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 11.04mm, 12.63mm
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.335" (8.51mm)
Row Spacing - Mating: 0.100" (2.54mm)
Number of Rows: 2
auf Bestellung 780 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
10+1.95 EUR
11+ 1.64 EUR
104+ 1.48 EUR
520+ 1.21 EUR
Mindestbestellmenge: 10
M20-7830246 M20-7830246 Hersteller : Harwin M20-783-1133465.pdf Headers & Wire Housings 02+02 DIL VERTICAL SOCKET TIN
auf Bestellung 1063 Stücke:
Lieferzeit 14-28 Tag (e)
Anzahl Preis ohne MwSt
18+2.91 EUR
24+ 2.2 EUR
104+ 1.8 EUR
520+ 1.6 EUR
2600+ 1.46 EUR
Mindestbestellmenge: 18
M20-7830246 M20-7830246 Hersteller : HARWIN M20-783.pdf Description: HARWIN - M20-7830246 - Printbuchse, Board-to-Board, 2.54 mm, 2 Reihe(n), 4 Kontakt(e), Durchsteckmontage, M20
tariffCode: 85366990
productTraceability: No
Kontaktanschluss: Durchsteckmontage
rohsCompliant: YES
Rastermaß: 2.54mm
Anzahl der Kontakte: 4Contacts
euEccn: NLR
Anzahl der Reihen: 2Rows
hazardous: false
rohsPhthalatesCompliant: YES
usEccn: EAR99
SVHC: No SVHC (23-Jan-2024)
auf Bestellung 3066 Stücke:
Lieferzeit 14-21 Tag (e)
