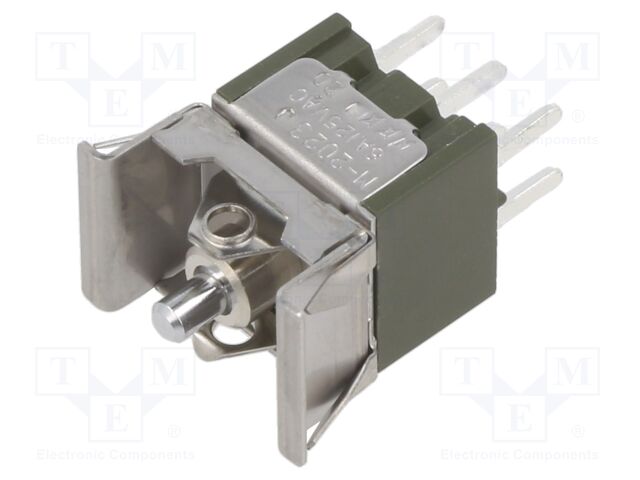

M2023TJW03 NKK SWITCHES
Hersteller: NKK SWITCHES
Category: Rocker Switches
Description: ROCKER; DP3T; Pos: 3; ON-OFF-ON; 3A/250VAC; 3A/30VDC; none; -30÷85°C
Mounting: on panel; SNAP-IN
Conform to the norm: CSA; UL
Manufacturer series: M
Leads: for soldering; straight
Operating temperature: -30...85°C
Body dimensions: 12.2x18x16.5mm
Contact material: silver
Type of switch: ROCKER
Contacts configuration: DP3T
AC contacts rating @R: 3A / 250V AC
DC contacts rating @R: 3A / 30V DC
Switching method: ON-OFF-ON
Stable positions number: 3
Illumination: none
Body colour: black
Number of positions: 3
Contact plating: silver plated
Mechanical durability: 50000 cycles
Max. contact resistance:: 10mΩ
Min. insulation resistance: 1GΩ
Mounting hole diameter: 13.1x15.9mm
Number of terminals: 6
Electrical life: 50000 cycles
Poles number: 2
Anzahl je Verpackung: 1 Stücke
Category: Rocker Switches
Description: ROCKER; DP3T; Pos: 3; ON-OFF-ON; 3A/250VAC; 3A/30VDC; none; -30÷85°C
Mounting: on panel; SNAP-IN
Conform to the norm: CSA; UL
Manufacturer series: M
Leads: for soldering; straight
Operating temperature: -30...85°C
Body dimensions: 12.2x18x16.5mm
Contact material: silver
Type of switch: ROCKER
Contacts configuration: DP3T
AC contacts rating @R: 3A / 250V AC
DC contacts rating @R: 3A / 30V DC
Switching method: ON-OFF-ON
Stable positions number: 3
Illumination: none
Body colour: black
Number of positions: 3
Contact plating: silver plated
Mechanical durability: 50000 cycles
Max. contact resistance:: 10mΩ
Min. insulation resistance: 1GΩ
Mounting hole diameter: 13.1x15.9mm
Number of terminals: 6
Electrical life: 50000 cycles
Poles number: 2
Anzahl je Verpackung: 1 Stücke
auf Bestellung 48 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
6+ | 11.98 EUR |
7+ | 11.33 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details M2023TJW03 NKK SWITCHES
Category: Rocker Switches, Description: ROCKER; DP3T; Pos: 3; ON-OFF-ON; 3A/250VAC; 3A/30VDC; none; -30÷85°C, Mounting: on panel; SNAP-IN, Conform to the norm: CSA; UL, Manufacturer series: M, Leads: for soldering; straight, Operating temperature: -30...85°C, Body dimensions: 12.2x18x16.5mm, Contact material: silver, Type of switch: ROCKER, Contacts configuration: DP3T, AC contacts rating @R: 3A / 250V AC, DC contacts rating @R: 3A / 30V DC, Switching method: ON-OFF-ON, Stable positions number: 3, Illumination: none, Body colour: black, Number of positions: 3, Contact plating: silver plated, Mechanical durability: 50000 cycles, Max. contact resistance:: 10mΩ, Min. insulation resistance: 1GΩ, Mounting hole diameter: 13.1x15.9mm, Number of terminals: 6, Electrical life: 50000 cycles, Poles number: 2, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote M2023TJW03 nach Preis ab 11.33 EUR bis 11.98 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
M2023TJW03 | Hersteller : NKK SWITCHES |
Category: Rocker Switches Description: ROCKER; DP3T; Pos: 3; ON-OFF-ON; 3A/250VAC; 3A/30VDC; none; -30÷85°C Mounting: on panel; SNAP-IN Conform to the norm: CSA; UL Manufacturer series: M Leads: for soldering; straight Operating temperature: -30...85°C Body dimensions: 12.2x18x16.5mm Contact material: silver Type of switch: ROCKER Contacts configuration: DP3T AC contacts rating @R: 3A / 250V AC DC contacts rating @R: 3A / 30V DC Switching method: ON-OFF-ON Stable positions number: 3 Illumination: none Body colour: black Number of positions: 3 Contact plating: silver plated Mechanical durability: 50000 cycles Max. contact resistance:: 10mΩ Min. insulation resistance: 1GΩ Mounting hole diameter: 13.1x15.9mm Number of terminals: 6 Electrical life: 50000 cycles Poles number: 2 |
auf Bestellung 48 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||
M2023TJW03 | Hersteller : NKK Switches | Description: SWITCH ROCKER DPDT 6A 125V |
auf Bestellung 97 Stücke: Lieferzeit 10-14 Tag (e) |
||||||||
M2023TJW03 | Hersteller : NKK Switches | Rocker Switches ON-OFF-ON SNP-IN MNT PC TERM BODY ONLY 6A |
auf Bestellung 4 Stücke: Lieferzeit 14-28 Tag (e) |
