M22-7141042

M22-7141042 HARWIN


pVersion=0046&contRep=ZT&docId=8954D222ECA01EDDBBB278DAC8D400D4&compId=M22-7141042.pdf?ci_sign=2b647ce2489f323577a36ce248be41a50c5a3c7e Hersteller: HARWIN
Category: Raster signal connectors 2,00mm

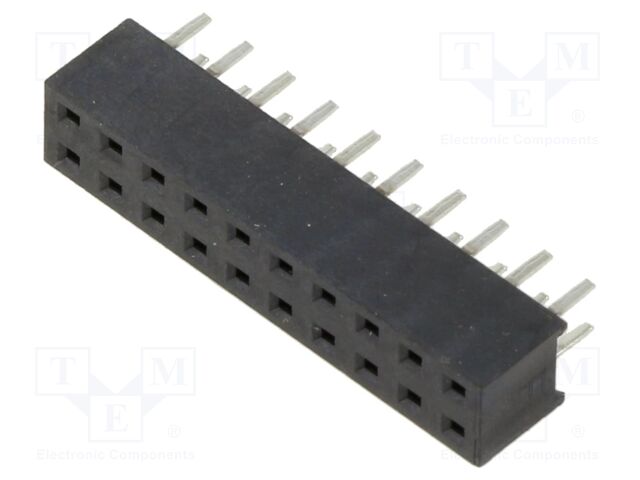

Description: Connector: pin strips; socket; female; PIN: 20; 2A; straight; THT
Operating temperature: -25...105°C
Current rating: 2A
Flammability rating: UL94V-0
Body material: LCP
Number of pins: 20
Connector pinout layout: 2x10
Contacts pitch: 2mm
Kind of package: tube
Electrical mounting: THT
Mechanical mounting: on PCBs
Spatial orientation: straight
Type of connector: pin strips
Connector: socket
Kind of connector: female
Contact plating: tinned
Anzahl je Verpackung: 1 Stücke
auf Bestellung 255 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
19+3.93 EUR
36+2.02 EUR
38+1.90 EUR
Mindestbestellmenge: 19
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details M22-7141042 HARWIN

Description: CONN RCPT 20POS 0.079 GOLD PCB, Packaging: Tube, Connector Type: Receptacle, Voltage Rating: 500VAC, Current Rating (Amps): 2A, Mounting Type: Through Hole, Number of Positions: 20, Style: Board to Board or Cable, Operating Temperature: -40°C ~ 105°C, Contact Type: Female Socket, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Mated Stacking Heights: 5.8mm, 6.55mm, 6.8mm, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish - Post: Tin, Part Status: Active, Contact Length - Post: 0.094" (2.40mm), Insulation Height: 0.173" (4.40mm), Row Spacing - Mating: 0.079" (2.00mm), Number of Rows: 2.

Weitere Produktangebote M22-7141042 nach Preis ab 1.90 EUR bis 5.10 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
M22-7141042 M22-7141042 Hersteller : HARWIN pVersion=0046&contRep=ZT&docId=8954D222ECA01EDDBBB278DAC8D400D4&compId=M22-7141042.pdf?ci_sign=2b647ce2489f323577a36ce248be41a50c5a3c7e Category: Raster signal connectors 2,00mm
Description: Connector: pin strips; socket; female; PIN: 20; 2A; straight; THT
Operating temperature: -25...105°C
Current rating: 2A
Flammability rating: UL94V-0
Body material: LCP
Number of pins: 20
Connector pinout layout: 2x10
Contacts pitch: 2mm
Kind of package: tube
Electrical mounting: THT
Mechanical mounting: on PCBs
Spatial orientation: straight
Type of connector: pin strips
Connector: socket
Kind of connector: female
Contact plating: tinned
auf Bestellung 255 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
19+3.93 EUR
36+2.02 EUR
38+1.90 EUR
Mindestbestellmenge: 19
Im Einkaufswagen  Stück im Wert von  UAH
M22-7141042 M22-7141042 Hersteller : Harwin Inc. M22-714.pdf Description: CONN RCPT 20POS 0.079 GOLD PCB
Packaging: Tube
Connector Type: Receptacle
Voltage Rating: 500VAC
Current Rating (Amps): 2A
Mounting Type: Through Hole
Number of Positions: 20
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 105°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 5.8mm, 6.55mm, 6.8mm
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish - Post: Tin
Part Status: Active
Contact Length - Post: 0.094" (2.40mm)
Insulation Height: 0.173" (4.40mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
auf Bestellung 1277 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
4+4.95 EUR
30+3.89 EUR
120+3.53 EUR
510+3.19 EUR
1020+3.04 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
M22-7141042 M22-7141042 Hersteller : Harwin M22-714-1132712.pdf Headers & Wire Housings 10+10 DIL VERTICAL GOLD+TIN SOCKET
auf Bestellung 3469 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+5.10 EUR
10+4.72 EUR
30+4.01 EUR
60+3.92 EUR
120+3.59 EUR
270+3.47 EUR
510+3.22 EUR
Im Einkaufswagen  Stück im Wert von  UAH
M22-7141042 M22-7141042 Hersteller : HARWIN M22-714.pdf Description: HARWIN - M22-7141042 - Printbuchse, Board-to-Board, 2 mm, 2 Reihe(n), 20 Kontakt(e), Durchsteckmontage, M22
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
Steckverbindermontage: Durchsteckmontage
usEccn: EAR99
Anzahl der Kontakte: 20Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Board-to-Board
Produktpalette: M22
productTraceability: No
Kontaktanschluss: Durchsteckmontage, gerade
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2mm
SVHC: No SVHC (27-Jun-2024)
auf Bestellung 1303 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
