Produkte > HARWIN INC. > M22-7142042
M22-7142042

M22-7142042 Harwin Inc.


M22-714.pdf Hersteller: Harwin Inc.
Description: CONN RCPT 40POS 0.079 GOLD PCB
Packaging: Tube
Connector Type: Receptacle
Voltage Rating: 500VAC
Current Rating (Amps): 2A
Mounting Type: Through Hole
Number of Positions: 40
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 105°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 5.8mm, 6.55mm, 6.8mm
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish - Post: Tin
Part Status: Active
Contact Length - Post: 0.094" (2.40mm)
Insulation Height: 0.173" (4.40mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
auf Bestellung 354 Stücke:

Lieferzeit 10-14 Tag (e)
Anzahl Preis
2+9.26 EUR
15+7.64 EUR
105+6.66 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details M22-7142042 Harwin Inc.

Description: CONN RCPT 40POS 0.079 GOLD PCB, Packaging: Tube, Connector Type: Receptacle, Voltage Rating: 500VAC, Current Rating (Amps): 2A, Mounting Type: Through Hole, Number of Positions: 40, Style: Board to Board or Cable, Operating Temperature: -40°C ~ 105°C, Contact Type: Female Socket, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Mated Stacking Heights: 5.8mm, 6.55mm, 6.8mm, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish - Post: Tin, Part Status: Active, Contact Length - Post: 0.094" (2.40mm), Insulation Height: 0.173" (4.40mm), Row Spacing - Mating: 0.079" (2.00mm), Number of Rows: 2.

Weitere Produktangebote M22-7142042 nach Preis ab 6.09 EUR bis 10.03 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
M22-7142042 M22-7142042 Hersteller : Harwin M22-714-1132712.pdf Headers & Wire Housings 20+20 DIL VERTICAL GOLD+TIN SOCKET
auf Bestellung 456 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+10.03 EUR
10+7.76 EUR
105+7.74 EUR
255+6.71 EUR
510+6.69 EUR
1005+6.09 EUR
Im Einkaufswagen  Stück im Wert von  UAH
M22-7142042 M22-7142042 Hersteller : HARWIN M22-714.pdf Description: HARWIN - M22-7142042 - Printbuchse, vertikal, Board-to-Board, 2 mm, 2 Reihe(n), 40 Kontakt(e), Durchsteckmontage, M22
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
Steckverbindermontage: Durchsteckmontage
usEccn: EAR99
Anzahl der Kontakte: 40Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Board-to-Board
Produktpalette: M22
productTraceability: No
Kontaktanschluss: Durchsteckmontage, gerade
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2mm
SVHC: No SVHC (21-Jan-2025)
auf Bestellung 98 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
M22-7142042 Hersteller : Harwin M22-714.pdf Роз'єм штирьовий 2-рядний; Вид = Розетка; К-сть контакт. = 40; Тип монт. = на плату; Крок, мм = 2; Тип конт. = Гніздовий ("мама"); В-нь між рядами = 2 мм; DIP
auf Bestellung 7 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH

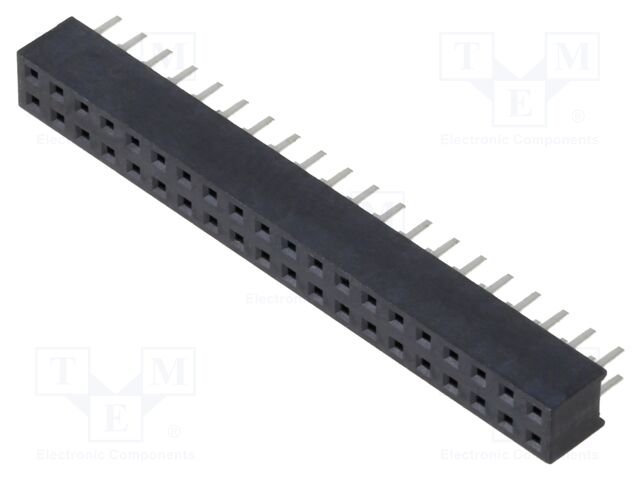

M22-7142042 M22-7142042 Hersteller : HARWIN pVersion=0046&contRep=ZT&docId=8954D222ECA01EDDBBB2785520ED60D4&compId=M22-7142042.pdf?ci_sign=91ce741bd26dc2ac85855ee00316faae2510f0a9 Category: Raster signal connectors 2,00mm
Description: Connector: pin strips; socket; female; PIN: 40; 2A; straight; THT
Kind of connector: female
Contact plating: tinned
Operating temperature: -25...105°C
Current rating: 2A
Flammability rating: UL94V-0
Body material: LCP
Number of pins: 40
Connector pinout layout: 2x20
Contacts pitch: 2mm
Kind of package: tube
Electrical mounting: THT
Mechanical mounting: on PCBs
Spatial orientation: straight
Type of connector: pin strips
Connector: socket
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M22-7142042 M22-7142042 Hersteller : HARWIN pVersion=0046&contRep=ZT&docId=8954D222ECA01EDDBBB2785520ED60D4&compId=M22-7142042.pdf?ci_sign=91ce741bd26dc2ac85855ee00316faae2510f0a9 Category: Raster signal connectors 2,00mm
Description: Connector: pin strips; socket; female; PIN: 40; 2A; straight; THT
Kind of connector: female
Contact plating: tinned
Operating temperature: -25...105°C
Current rating: 2A
Flammability rating: UL94V-0
Body material: LCP
Number of pins: 40
Connector pinout layout: 2x20
Contacts pitch: 2mm
Kind of package: tube
Electrical mounting: THT
Mechanical mounting: on PCBs
Spatial orientation: straight
Type of connector: pin strips
Connector: socket
