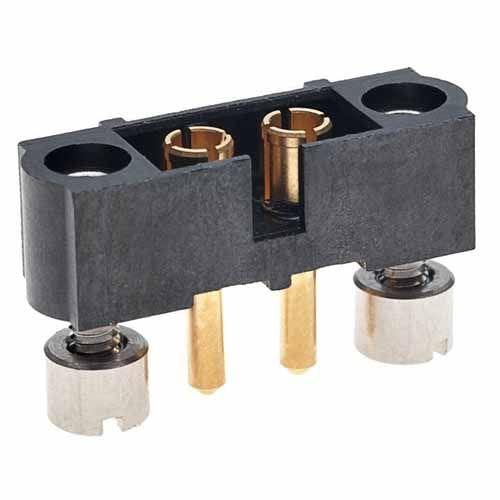

M80-5000000M3-02-332-00-000 HARWIN
Hersteller: HARWIN
Description: HARWIN - M80-5000000M3-02-332-00-000 - Stiftleiste, Wire-to-Board, 4 mm, 1 Reihe(n), 2 Kontakt(e), Durchsteckmontage, Datamate Mix-Tek M80
tariffCode: 85366930
rohsCompliant: Y-EX
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 2Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Wire-to-Board
Produktpalette: Datamate Mix-Tek M80
productTraceability: No
Kontaktanschluss: Durchsteckmontage
Anzahl der Reihen: 1Reihe(n)
Rastermaß: 4mm
SVHC: Lead (17-Jan-2023)
| Anzahl | Privatkunde |
|---|---|
| 5+ | 56.18 EUR |
| 6+ | 45.65 EUR |
| 10+ | 40.57 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details M80-5000000M3-02-332-00-000 HARWIN
Description: CONN DATAMATE M 2 4MM SOLDER, Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware, Packaging: Tube, Connector Type: Header, Voltage Rating: 800V, Current Rating (Amps): 20A, Mounting Type: Through Hole, Number of Positions: 2, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Power, Fastening Type: Threaded, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.157" (4.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Shape: Circular, Contact Length - Post: 0.197" (5.00mm), Insulation Height: 0.220" (5.60mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled.
Weitere Produktangebote M80-5000000M3-02-332-00-000
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
M80-5000000M3-02-332-00-000 | Harwin Inc. |
Description: CONN DATAMATE M 2 4MM SOLDER Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware Packaging: Tube Connector Type: Header Voltage Rating: 800V Current Rating (Amps): 20A Mounting Type: Through Hole Number of Positions: 2 Number of Rows: 1 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin, Power Fastening Type: Threaded Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Copper Alloy Insulation Color: Black Pitch - Mating: 0.157" (4.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Shape: Circular Contact Length - Post: 0.197" (5.00mm) Insulation Height: 0.220" (5.60mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 28 Stücke Im Einkaufswagen Stück im Wert von UAH |
 |
M80-5000000M3-02-332-00-000 | Harwin |
Power to the Board Datamate Mix-Tek MIX-TEK M V PWR PCT W/JS |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| M80-5000000M3-02-332-00-000 | HARWIN |
Category: Raster signal connectors 2,00mm Description: Connector: wire-wire/PCB; socket; male; PIN: 2; Datamate; 20A; THT Manufacturer series: Datamate Contact plating: gold-plated Kind of connector: male Mechanical mounting: on PCBs Type of connector: wire-wire/PCB Body material: PPS Connector: socket Electrical mounting: THT Kind of package: tube Flammability rating: UL94V-0 Contacts pitch: 4mm Number of pins: 2 Current rating: 20A |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 28 Stücke Im Einkaufswagen Stück im Wert von UAH |
| M80-5000000M3-02-332-00-000 |
|
Hersteller: Harwin Inc.
Description: CONN DATAMATE M 2 4MM SOLDER
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Tube
Connector Type: Header
Voltage Rating: 800V
Current Rating (Amps): 20A
Mounting Type: Through Hole
Number of Positions: 2
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin, Power
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.157" (4.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Shape: Circular
Contact Length - Post: 0.197" (5.00mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Description: CONN DATAMATE M 2 4MM SOLDER
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Tube
Connector Type: Header
Voltage Rating: 800V
Current Rating (Amps): 20A
Mounting Type: Through Hole
Number of Positions: 2
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin, Power
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.157" (4.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Shape: Circular
Contact Length - Post: 0.197" (5.00mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Produkt ist nicht verfügbar
Mindestbestellmenge: 28 Stücke
Im Einkaufswagen
Stück im Wert von UAH
| M80-5000000M3-02-332-00-000 |
|
Hersteller: Harwin
Power to the Board Datamate Mix-Tek MIX-TEK M V PWR PCT W/JS
Power to the Board Datamate Mix-Tek MIX-TEK M V PWR PCT W/JS
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
| M80-5000000M3-02-332-00-000 |
|
Hersteller: HARWIN
Category: Raster signal connectors 2,00mm
Description: Connector: wire-wire/PCB; socket; male; PIN: 2; Datamate; 20A; THT
Manufacturer series: Datamate
Contact plating: gold-plated
Kind of connector: male
Mechanical mounting: on PCBs
Type of connector: wire-wire/PCB
Body material: PPS
Connector: socket
Electrical mounting: THT
Kind of package: tube
Flammability rating: UL94V-0
Contacts pitch: 4mm
Number of pins: 2
Current rating: 20A
Category: Raster signal connectors 2,00mm
Description: Connector: wire-wire/PCB; socket; male; PIN: 2; Datamate; 20A; THT
Manufacturer series: Datamate
Contact plating: gold-plated
Kind of connector: male
Mechanical mounting: on PCBs
Type of connector: wire-wire/PCB
Body material: PPS
Connector: socket
Electrical mounting: THT
Kind of package: tube
Flammability rating: UL94V-0
Contacts pitch: 4mm
Number of pins: 2
Current rating: 20A
Produkt ist nicht verfügbar
Mindestbestellmenge: 28 Stücke
Im Einkaufswagen
Stück im Wert von UAH
