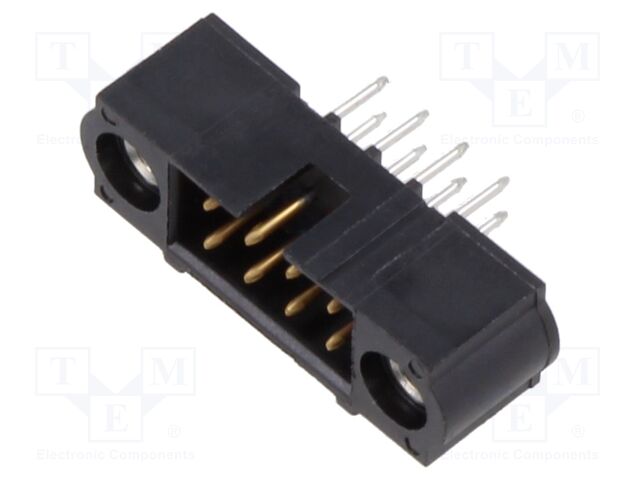

M80-5000842 HARWIN
Hersteller: HARWINCategory: Raster signal connectors 2,00mm
Description: Connector: wire-wire/PCB; socket; male; PIN: 8; Datamate J-Tek; 3A
Kind of connector: male
Number of pins: 8
Spatial orientation: straight
Kind of package: tube
Electrical mounting: THT
Locking system: threaded joint
Mechanical mounting: on PCBs
Terminals plating: tinned
Contact plating: gold-plated
Type of connector: wire-wire/PCB
Body material: PPS
Connector: socket
Flammability rating: UL94V-0
Contacts pitch: 2mm
Lead length: 3mm
Current rating: 3A
Rated voltage: 800V
Connector pinout layout: 2x4
Manufacturer series: Datamate J-Tek
auf Bestellung 52 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 7+ | 10.5 EUR |
| 10+ | 8.34 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details M80-5000842 HARWIN
Description: CONN HEADER VERT 8POS 2MM, Packaging: Tube, Features: Keying Slot, Mating Flange, Connector Type: Header, Voltage Rating: 120V, Current Rating (Amps): 2.2A, Mounting Type: Through Hole, Number of Positions: 8, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Threaded, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 29.5µin (0.75µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.128" (3.25mm), Insulation Height: 0.220" (5.60mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled, Row Spacing - Mating: 0.079" (2.00mm).
Weitere Produktangebote M80-5000842 nach Preis ab 6.76 EUR bis 15.79 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
M80-5000842 | Hersteller : HARWIN |
Category: Raster signal connectors 2,00mm Description: Connector: wire-wire/PCB; socket; male; PIN: 8; Datamate J-Tek; 3A Kind of connector: male Number of pins: 8 Spatial orientation: straight Kind of package: tube Electrical mounting: THT Locking system: threaded joint Mechanical mounting: on PCBs Terminals plating: tinned Contact plating: gold-plated Type of connector: wire-wire/PCB Body material: PPS Connector: socket Flammability rating: UL94V-0 Contacts pitch: 2mm Lead length: 3mm Current rating: 3A Rated voltage: 800V Connector pinout layout: 2x4 Manufacturer series: Datamate J-Tek Anzahl je Verpackung: 1 Stücke |
auf Bestellung 52 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||
 |
M80-5000842 | Hersteller : Harwin |
Headers & Wire Housings 4+4 POS VERT MALE 3MM TAIL W/JS TIN |
auf Bestellung 338 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
M80-5000842 | Hersteller : Harwin Inc. |
Description: CONN HEADER VERT 8POS 2MM Packaging: Tube Features: Keying Slot, Mating Flange Connector Type: Header Voltage Rating: 120V Current Rating (Amps): 2.2A Mounting Type: Through Hole Number of Positions: 8 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Threaded Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 29.5µin (0.75µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Circular Contact Length - Post: 0.128" (3.25mm) Insulation Height: 0.220" (5.60mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled Row Spacing - Mating: 0.079" (2.00mm) |
auf Bestellung 877 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
M80-5000842 | Hersteller : HARWIN |
Description: HARWIN - M80-5000842 - Stiftleiste, Wannenstecker, Wire-to-Board, 2 mm, 2 Reihe(n), 8 Kontakt(e), Durchsteckmontage tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 8Kontakt(e) euEccn: NLR Steckverbindersysteme: Wire-to-Board Steckverbinder: PCB-Stiftleiste Produktpalette: Datamate J-Tek M80-5 productTraceability: Yes-Date/Lot Code Kontaktanschluss: Durchsteckmontage Anzahl der Reihen: 2Reihe(n) Rastermaß: 2mm SVHC: No SVHC (25-Jun-2025) |
auf Bestellung 68 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||
| M80-5000842 | Hersteller : Harwin |
Роз'єм 2-рядний; Тип конт. = Штирьовий ("тато"); Вид = Розетка; К-сть конт. = 8; Крок, мм = 2; Серія = Datamate J-Tek; Тип монт. = на плату; В-нь між рядами = 2 мм; DIP |
auf Bestellung 11 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||
|
