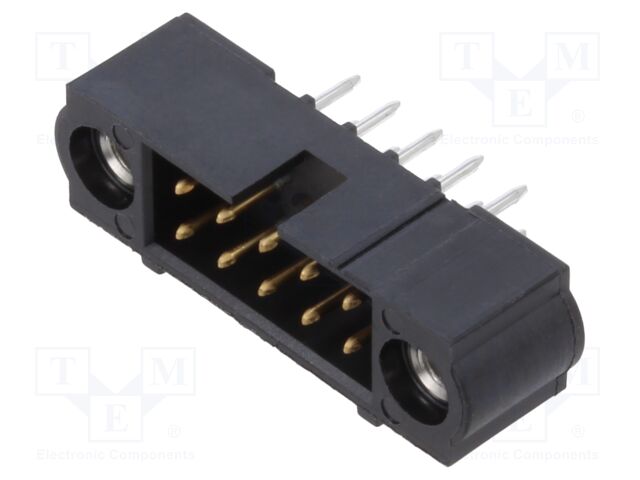

M80-5001042 Harwin Inc.
Hersteller: Harwin Inc.
Description: CONN HEADER VERT 10POS 2MM
Features: Keying Slot, Mating Flange
Packaging: Tube
Connector Type: Header
Voltage Rating: 120V
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.128" (3.25mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Description: CONN HEADER VERT 10POS 2MM
Features: Keying Slot, Mating Flange
Packaging: Tube
Connector Type: Header
Voltage Rating: 120V
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.128" (3.25mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
auf Bestellung 4142 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
1+ | 18.13 EUR |
13+ | 16.06 EUR |
104+ | 14 EUR |
507+ | 11.94 EUR |
1001+ | 10.95 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details M80-5001042 Harwin Inc.
Description: CONN HEADER VERT 10POS 2MM, Features: Keying Slot, Mating Flange, Packaging: Tube, Connector Type: Header, Voltage Rating: 120V, Current Rating (Amps): 2.2A, Mounting Type: Through Hole, Number of Positions: 10, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Threaded, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 29.5µin (0.75µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.128" (3.25mm), Insulation Height: 0.220" (5.60mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled, Row Spacing - Mating: 0.079" (2.00mm).
Weitere Produktangebote M80-5001042 nach Preis ab 11.02 EUR bis 19.83 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
M80-5001042 | Hersteller : Harwin | Headers & Wire Housings 5+5 POS VERT MALE 3mm TAIL W/JS TIN |
auf Bestellung 5939 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||
M80-5001042 | Hersteller : HARWIN |
Description: HARWIN - M80-5001042 - Stiftleiste, Dual In-Line, Wire-to-Board, 2 mm, 2 Reihe(n), 10 Kontakt(e) tariffCode: 85366990 productTraceability: No rohsCompliant: YES Rastermaß: 2mm Anzahl der Kontakte: 10Contacts euEccn: NLR Anzahl der Reihen: 2Rows hazardous: false rohsPhthalatesCompliant: YES usEccn: EAR99 SVHC: No SVHC (23-Jan-2024) |
auf Bestellung 3183 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||||
M80-5001042 | Hersteller : Harwin | Роз'єм 2-рядний; Тип конт. = Штирьовий ("тато"); Вид = Розетка; К-сть конт. = 10; Крок, мм = 2; Серія = Datamate J-Tek; Тип монт. = на плату; В-нь між рядами = 2 мм; DIP |
auf Bestellung 38 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||
M80-5001042 | Hersteller : HARWIN |
Category: Raster signal connectors 2,00mm Description: Socket; PCB-cable/PCB; male; Datamate J-Tek; 2mm; PIN: 10; THT; 800V Connector: socket Type of connector: PCB-cable/PCB Kind of connector: male Connector series: Datamate J-Tek Contacts pitch: 2mm Number of pins: 10 Electrical mounting: THT Mechanical mounting: on PCBs Rated voltage: 800V Current rating: 3A Contact plating: gold-plated Locking system: screws Connector pinout layout: 2x5 Spatial orientation: straight Thread: M2 x 0,4mm Anzahl je Verpackung: 1 Stücke |
Produkt ist nicht verfügbar |
||||||||||||||||
M80-5001042 | Hersteller : HARWIN |
Category: Raster signal connectors 2,00mm Description: Socket; PCB-cable/PCB; male; Datamate J-Tek; 2mm; PIN: 10; THT; 800V Connector: socket Type of connector: PCB-cable/PCB Kind of connector: male Connector series: Datamate J-Tek Contacts pitch: 2mm Number of pins: 10 Electrical mounting: THT Mechanical mounting: on PCBs Rated voltage: 800V Current rating: 3A Contact plating: gold-plated Locking system: screws Connector pinout layout: 2x5 Spatial orientation: straight Thread: M2 x 0,4mm |
Produkt ist nicht verfügbar |
