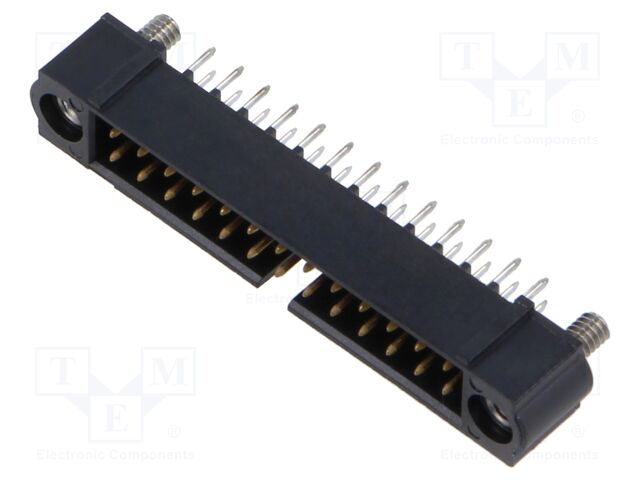

M80-5102642 HARWIN
Hersteller: HARWIN
Category: Raster signal connectors 2,00mm
Description: Connector: PCB-cable/PCB; socket; male; PIN: 26; Datamate J-Tek; 3A
Type of connector: PCB-cable/PCB
Connector: socket
Kind of connector: male
Manufacturer series: Datamate J-Tek
Contact plating: gold-plated
Electrical mounting: THT
Mechanical mounting: on PCBs
Current rating: 3A
Contacts pitch: 2mm
Number of pins: 26
Connector pinout layout: 2x13
Locking system: screws
Spatial orientation: straight
Rated voltage: 0.8kV
Thread: M2 x 0,4mm
Produktrezensionen
Produktbewertung abgeben
Technische Details M80-5102642 HARWIN
Description: CONN HEADER VERT 26POS 2MM, Packaging: Tube, Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware, Connector Type: Header, Voltage Rating: 800V, Current Rating (Amps): 2.2A, Mounting Type: Through Hole, Number of Positions: 26, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Threaded, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 29.5µin (0.75µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.130" (3.30mm), Insulation Height: 0.220" (5.60mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled, Row Spacing - Mating: 0.079" (2.00mm).
Weitere Produktangebote M80-5102642 nach Preis ab 21.94 EUR bis 36.16 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M80-5102642 | Harwin |
Conn Datamate HDR 26 POS 2mm Solder ST Top Entry Thru-Hole Tube |
auf Bestellung 42 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||
 |
M80-5102642 | Harwin |
Power to the Board Datamate J-Tek 13+13 POS VERT MALE 3mm TAIL W/JS TIN |
auf Bestellung 1852 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||
 |
M80-5102642 | Harwin Inc. |
Description: CONN HEADER VERT 26POS 2MM Packaging: Tube Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware Connector Type: Header Voltage Rating: 800V Current Rating (Amps): 2.2A Mounting Type: Through Hole Number of Positions: 26 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Threaded Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 29.5µin (0.75µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Circular Contact Length - Post: 0.130" (3.30mm) Insulation Height: 0.220" (5.60mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled Row Spacing - Mating: 0.079" (2.00mm) |
auf Bestellung 518 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||
 |
M80-5102642 | HARWIN |
Description: HARWIN - M80-5102642 - Stiftleiste, Dual In-Line, Wire-to-Board, 2 mm, 2 Reihe(n), 26 Kontakt(e) tariffCode: 85366990 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze isCanonical: Y usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 26Kontakt(e) euEccn: NLR Steckverbindersysteme: Wire-to-Board Steckverbinder: PCB-Stiftleiste Produktpalette: Datamate J-Tek M80-5 productTraceability: No Kontaktanschluss: Durchsteckmontage, gerade Anzahl der Reihen: 2Reihe(n) Rastermaß: 2mm SVHC: No SVHC (25-Jun-2025) |
auf Bestellung 116 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||
| M80-5102642 | Harwin |
Роз'єм 2-рядний, Вид = Вилка, К-сть конт. = 26, Крок, мм = 2, Серія = Datamate J-Tek, Тип монт. = на плату, В-нь між рядами = 2 мм,... Роз'єми Корпус: DIP Очікується: 2476 Од. вим: шт Anzahl je Verpackung: 7 Stücke |
verfügbar 13 Stücke: |
Im Einkaufswagen Stück im Wert von UAH |
| M80-5102642 |
|
Hersteller: Harwin
Conn Datamate HDR 26 POS 2mm Solder ST Top Entry Thru-Hole Tube
Conn Datamate HDR 26 POS 2mm Solder ST Top Entry Thru-Hole Tube
auf Bestellung 42 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 7+ | 28.92 EUR |
| 28+ | 26.73 EUR |
| M80-5102642 |
|
Hersteller: Harwin
Power to the Board Datamate J-Tek 13+13 POS VERT MALE 3mm TAIL W/JS TIN
Power to the Board Datamate J-Tek 13+13 POS VERT MALE 3mm TAIL W/JS TIN
auf Bestellung 1852 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 30.31 EUR |
| 7+ | 26.39 EUR |
| 28+ | 26.24 EUR |
| 105+ | 25.91 EUR |
| M80-5102642 |
|
Hersteller: Harwin Inc.
Description: CONN HEADER VERT 26POS 2MM
Packaging: Tube
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Connector Type: Header
Voltage Rating: 800V
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 26
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Description: CONN HEADER VERT 26POS 2MM
Packaging: Tube
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Connector Type: Header
Voltage Rating: 800V
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 26
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
auf Bestellung 518 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 34.03 EUR |
| 14+ | 28.25 EUR |
| 105+ | 24.5 EUR |
| 504+ | 21.94 EUR |
| M80-5102642 |
|
Hersteller: HARWIN
Description: HARWIN - M80-5102642 - Stiftleiste, Dual In-Line, Wire-to-Board, 2 mm, 2 Reihe(n), 26 Kontakt(e)
tariffCode: 85366990
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 26Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: Datamate J-Tek M80-5
productTraceability: No
Kontaktanschluss: Durchsteckmontage, gerade
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2mm
SVHC: No SVHC (25-Jun-2025)
Description: HARWIN - M80-5102642 - Stiftleiste, Dual In-Line, Wire-to-Board, 2 mm, 2 Reihe(n), 26 Kontakt(e)
tariffCode: 85366990
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 26Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: Datamate J-Tek M80-5
productTraceability: No
Kontaktanschluss: Durchsteckmontage, gerade
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2mm
SVHC: No SVHC (25-Jun-2025)
auf Bestellung 116 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 7+ | 36.16 EUR |
| 10+ | 30.26 EUR |
| 25+ | 24.85 EUR |
| 100+ | 23.19 EUR |
| M80-5102642 |
|
Hersteller: Harwin
Роз'єм 2-рядний, Вид = Вилка, К-сть конт. = 26, Крок, мм = 2, Серія = Datamate J-Tek, Тип монт. = на плату, В-нь між рядами = 2 мм,... Роз'єми Корпус: DIP Очікується: 2476 Од. вим: шт
Anzahl je Verpackung: 7 Stücke
Роз'єм 2-рядний, Вид = Вилка, К-сть конт. = 26, Крок, мм = 2, Серія = Datamate J-Tek, Тип монт. = на плату, В-нь між рядами = 2 мм,... Роз'єми Корпус: DIP Очікується: 2476 Од. вим: шт
Anzahl je Verpackung: 7 Stücke
verfügbar 13 Stücke:
