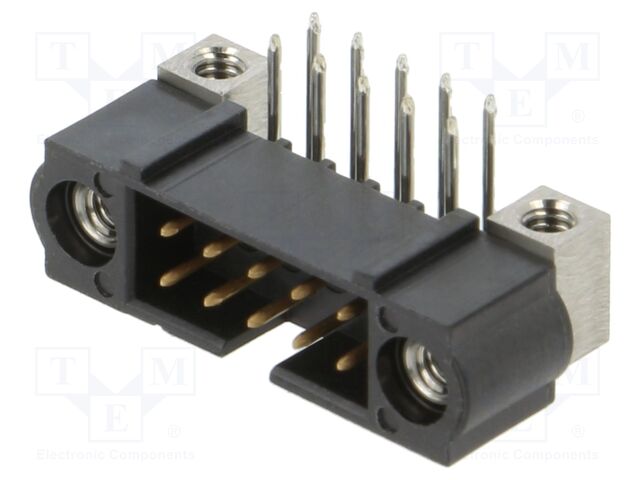

M80-5401042 HARWIN
Hersteller: HARWIN
Category: Raster signal connectors 2,00mm
Description: Connector: PCB-cable/PCB; socket; male; PIN: 10; Datamate J-Tek; 3A
Type of connector: PCB-cable/PCB
Connector: socket
Kind of connector: male
Number of pins: 10
Manufacturer series: Datamate J-Tek
Current rating: 3A
Rated voltage: 0.8kV
Spatial orientation: angled 90°
Electrical mounting: THT
Mechanical mounting: on PCBs
Contacts pitch: 2mm
Contact plating: gold-plated
Thread: M2 x 0,4mm
Connector pinout layout: 2x5
Locking system: screws
| Anzahl | Preis |
|---|---|
| 4+ | 20.79 EUR |
| 13+ | 17.88 EUR |
| 26+ | 17.07 EUR |
| 39+ | 16.67 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details M80-5401042 HARWIN
Description: CONN HEADER R/A 10POS 2MM, Packaging: Tube, Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware, Connector Type: Header, Voltage Rating: 800V, Current Rating (Amps): 2.2A, Mounting Type: Through Hole, Right Angle, Number of Positions: 10, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Threaded, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 29.5µin (0.75µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.118" (3.00mm), Insulation Height: 0.218" (5.55mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled, Row Spacing - Mating: 0.079" (2.00mm).
Weitere Produktangebote M80-5401042 nach Preis ab 21.9 EUR bis 34.39 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M80-5401042 | Harwin |
Conn Datamate M 10 POS 2mm Solder RA Thru-Hole Tube |
auf Bestellung 26 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
 |
M80-5401042 | Harwin Inc. |
Description: CONN HEADER R/A 10POS 2MM Packaging: Tube Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware Connector Type: Header Voltage Rating: 800V Current Rating (Amps): 2.2A Mounting Type: Through Hole, Right Angle Number of Positions: 10 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Threaded Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 29.5µin (0.75µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Circular Contact Length - Post: 0.118" (3.00mm) Insulation Height: 0.218" (5.55mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled Row Spacing - Mating: 0.079" (2.00mm) |
auf Bestellung 3592 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
M80-5401042 | Harwin |
Power to the Board Datamate J-Tek 5+5 POS R/A MALE 3mm TAIL W/JS TIN |
auf Bestellung 3498 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
M80-5401042 | HARWIN |
Description: HARWIN - M80-5401042 - Stiftleiste, Dual In-Line, Wire-to-Board, 2 mm, 2 Reihe(n), 10 Kontakt(e) tariffCode: 85366930 euEccn: NLR rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze isCanonical: Y Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 10Kontakt(e) SVHC: No SVHC (04-Feb-2026) Steckverbindersysteme: Wire-to-Board Steckverbinder: PCB-Stiftleiste Produktpalette: Datamate J-Tek M80-5 productTraceability: Yes-Date/Lot Code Kontaktanschluss: Durchsteckmontage, abgewinkelt usEccn: EAR99 Anzahl der Reihen: 2Reihe(n) Rastermaß: 2mm |
auf Bestellung 133 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| M80-5401042 |
|
Hersteller: Harwin
Conn Datamate M 10 POS 2mm Solder RA Thru-Hole Tube
Conn Datamate M 10 POS 2mm Solder RA Thru-Hole Tube
auf Bestellung 26 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 13+ | 28.67 EUR |
| 26+ | 27.02 EUR |
| M80-5401042 |
|
Hersteller: Harwin Inc.
Description: CONN HEADER R/A 10POS 2MM
Packaging: Tube
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Connector Type: Header
Voltage Rating: 800V
Current Rating (Amps): 2.2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.218" (5.55mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Description: CONN HEADER R/A 10POS 2MM
Packaging: Tube
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Connector Type: Header
Voltage Rating: 800V
Current Rating (Amps): 2.2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.218" (5.55mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
auf Bestellung 3592 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 33.99 EUR |
| 13+ | 28.36 EUR |
| 104+ | 24.49 EUR |
| 507+ | 21.9 EUR |
| M80-5401042 |
|
Hersteller: Harwin
Power to the Board Datamate J-Tek 5+5 POS R/A MALE 3mm TAIL W/JS TIN
Power to the Board Datamate J-Tek 5+5 POS R/A MALE 3mm TAIL W/JS TIN
auf Bestellung 3498 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 34.39 EUR |
| 10+ | 28.71 EUR |
| 26+ | 28.07 EUR |
| 52+ | 27.74 EUR |
| 104+ | 24.78 EUR |
| 260+ | 24.11 EUR |
| 507+ | 22.18 EUR |
| M80-5401042 |
|
Hersteller: HARWIN
Description: HARWIN - M80-5401042 - Stiftleiste, Dual In-Line, Wire-to-Board, 2 mm, 2 Reihe(n), 10 Kontakt(e)
tariffCode: 85366930
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 10Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbindersysteme: Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: Datamate J-Tek M80-5
productTraceability: Yes-Date/Lot Code
Kontaktanschluss: Durchsteckmontage, abgewinkelt
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2mm
Description: HARWIN - M80-5401042 - Stiftleiste, Dual In-Line, Wire-to-Board, 2 mm, 2 Reihe(n), 10 Kontakt(e)
tariffCode: 85366930
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 10Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbindersysteme: Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: Datamate J-Tek M80-5
productTraceability: Yes-Date/Lot Code
Kontaktanschluss: Durchsteckmontage, abgewinkelt
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2mm
auf Bestellung 133 Stücke:
Lieferzeit 14-21 Tag (e)
