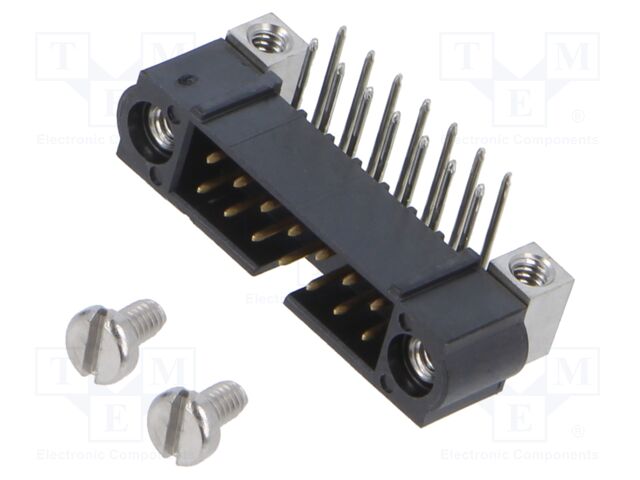

M80-5401442 HARWIN
Hersteller: HARWINCategory: Raster signal connectors 2,00mm
Description: Connector: PCB-cable/PCB; socket; male; PIN: 14; Datamate J-Tek; 3A
Kind of connector: male
Spatial orientation: angled 90°
Manufacturer series: Datamate J-Tek
Thread: M2 x 0,4mm
Contact plating: gold-plated
Mechanical mounting: on PCBs
Type of connector: PCB-cable/PCB
Locking system: screws
Connector: socket
Electrical mounting: THT
Contacts pitch: 2mm
Current rating: 3A
Number of pins: 14
Rated voltage: 800V
Connector pinout layout: 2x7
Anzahl je Verpackung: 1 Stücke
auf Bestellung 53 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 4+ | 19.98 EUR |
| 11+ | 17.06 EUR |
| 22+ | 16.34 EUR |
| 55+ | 15.4 EUR |
| 99+ | 15.17 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details M80-5401442 HARWIN
Description: CONN HEADER R/A 14POS 2MM, Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware, Packaging: Tube, Connector Type: Header, Voltage Rating: 800V, Current Rating (Amps): 2.2A, Mounting Type: Through Hole, Right Angle, Number of Positions: 14, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Threaded, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 29.5µin (0.75µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.118" (3.00mm), Insulation Height: 0.218" (5.55mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled, Row Spacing - Mating: 0.079" (2.00mm).
Weitere Produktangebote M80-5401442 nach Preis ab 16.34 EUR bis 33.67 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
M80-5401442 | Hersteller : HARWIN |
Category: Raster signal connectors 2,00mm Description: Connector: PCB-cable/PCB; socket; male; PIN: 14; Datamate J-Tek; 3A Kind of connector: male Spatial orientation: angled 90° Manufacturer series: Datamate J-Tek Thread: M2 x 0,4mm Contact plating: gold-plated Mechanical mounting: on PCBs Type of connector: PCB-cable/PCB Locking system: screws Connector: socket Electrical mounting: THT Contacts pitch: 2mm Current rating: 3A Number of pins: 14 Rated voltage: 800V Connector pinout layout: 2x7 |
auf Bestellung 53 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||
 |
M80-5401442 | Hersteller : Harwin |
Power to the Board 7+7 POS R/A MALE 3mm TAIL W/JS TIN |
auf Bestellung 599 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||
 |
M80-5401442 | Hersteller : Harwin Inc. |
Description: CONN HEADER R/A 14POS 2MM Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware Packaging: Tube Connector Type: Header Voltage Rating: 800V Current Rating (Amps): 2.2A Mounting Type: Through Hole, Right Angle Number of Positions: 14 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Threaded Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 29.5µin (0.75µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Circular Contact Length - Post: 0.118" (3.00mm) Insulation Height: 0.218" (5.55mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled Row Spacing - Mating: 0.079" (2.00mm) |
auf Bestellung 143 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||
 |
M80-5401442 | Hersteller : HARWIN |
Description: HARWIN - M80-5401442 - Stiftleiste, Dual In-Line, Wire-to-Board, 2 mm, 2 Reihe(n), 14 Kontakt(e) tariffCode: 85366990 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 14Kontakt(e) euEccn: NLR Steckverbindersysteme: Wire-to-Board Steckverbindertyp: PCB-Stiftleiste Produktpalette: Datamate J-Tek M80-5 productTraceability: No Kontaktanschluss: Durchsteckmontage, abgewinkelt Anzahl der Reihen: 2Reihe(n) Rastermaß: 2mm SVHC: No SVHC (21-Jan-2025) |
auf Bestellung 36 Stücke: Lieferzeit 14-21 Tag (e) |
