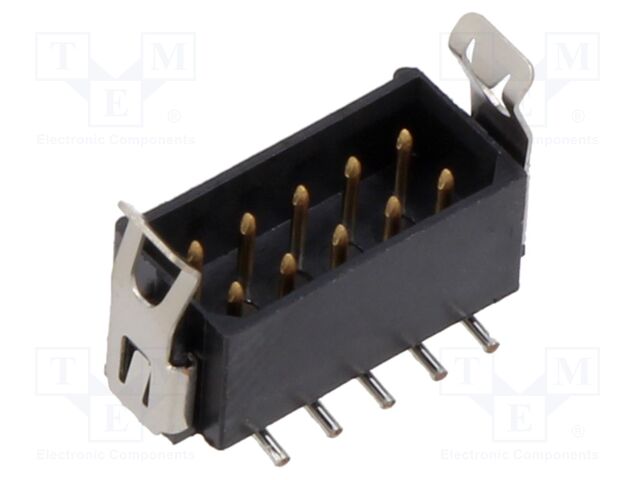

M80-8281042 HARWIN
Hersteller: HARWIN
Category: Raster signal connectors 2,00mm
Description: Connector: wire-wire/PCB; socket; male; PIN: 10; Datamate L-Tek; 3A
Type of connector: wire-wire/PCB
Connector: socket
Kind of connector: male
Number of pins: 10
Manufacturer series: Datamate L-Tek
Current rating: 3A
Rated voltage: 0.8kV
Spatial orientation: straight; vertical
Electrical mounting: SMT
Mechanical mounting: on PCBs
Contacts pitch: 2mm
Contact plating: gold-plated
Flammability rating: UL94V-0
Body material: PPS
Connector variant: polarized
Kind of package: tube
Terminals plating: tinned
Locking system: with latch
| Anzahl | Preis |
|---|---|
| 15+ | 4.95 EUR |
| 17+ | 4.39 EUR |
| 18+ | 4.19 EUR |
| 54+ | 3.86 EUR |
| 90+ | 3.7 EUR |
| 108+ | 3.66 EUR |
| 180+ | 3.52 EUR |
| 252+ | 3.43 EUR |
| 360+ | 3.35 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details M80-8281042 HARWIN
Description: CONN HEADER SMD 10POS 2MM, Packaging: Tube, Connector Type: Header, Voltage Rating: 800V, Current Rating (Amps): 2.2A, Mounting Type: Surface Mount, Number of Positions: 10, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Latch Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 29.5µin (0.75µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Insulation Height: 0.205" (5.20mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled, Row Spacing - Mating: 0.079" (2.00mm).
Weitere Produktangebote M80-8281042 nach Preis ab 4.95 EUR bis 8.24 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M80-8281042 | Harwin |
Headers & Wire Housings 5+5 POS VERT MALE LATCHED TIN |
auf Bestellung 133 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
M80-8281042 | Harwin Inc. |
Description: CONN HEADER SMD 10POS 2MM Packaging: Tube Connector Type: Header Voltage Rating: 800V Current Rating (Amps): 2.2A Mounting Type: Surface Mount Number of Positions: 10 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 29.5µin (0.75µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Circular Insulation Height: 0.205" (5.20mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled Row Spacing - Mating: 0.079" (2.00mm) |
auf Bestellung 1597 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
M80-8281042 | HARWIN |
Description: HARWIN - M80-8281042 - Stiftleiste, mit Verriegelungslaschen für kraftschlüssige Verbindung, Board-to-Board, Wire-to-Board tariffCode: 85366910 euEccn: NLR rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze isCanonical: Y Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 10Kontakt(e) SVHC: No SVHC (04-Feb-2026) Steckverbindersysteme: Board-to-Board, Wire-to-Board Steckverbinder: PCB-Stiftleiste Produktpalette: Datamate L-Tek M80 productTraceability: Yes-Date/Lot Code Kontaktanschluss: Oberflächenmontage, gerade usEccn: EAR99 Anzahl der Reihen: 2Reihe(n) Rastermaß: 2mm |
auf Bestellung 96 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH | ||||||||||||
| M80-8281042 | Harwin |
Роз'єм 2-рядний, Вид = Вилка, Тип конт. = Штирьовий ("тато"), К-сть конт. = 10, Крок, мм = 2, Серія = Datamate L-Tek, Тип монт. = на плату, В-нь між рядами = 2 мм,... Роз'єми Корпус: SMD Од. вим: шт Anzahl je Verpackung: 18 Stücke |
verfügbar 2 Stücke: |
Im Einkaufswagen Stück im Wert von UAH |
| M80-8281042 |
|
Hersteller: Harwin
Headers & Wire Housings 5+5 POS VERT MALE LATCHED TIN
Headers & Wire Housings 5+5 POS VERT MALE LATCHED TIN
auf Bestellung 133 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 7.74 EUR |
| 10+ | 6.97 EUR |
| 18+ | 6.32 EUR |
| 108+ | 5.56 EUR |
| 504+ | 5 EUR |
| 1008+ | 4.95 EUR |
| M80-8281042 |
|
Hersteller: Harwin Inc.
Description: CONN HEADER SMD 10POS 2MM
Packaging: Tube
Connector Type: Header
Voltage Rating: 800V
Current Rating (Amps): 2.2A
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Insulation Height: 0.205" (5.20mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Description: CONN HEADER SMD 10POS 2MM
Packaging: Tube
Connector Type: Header
Voltage Rating: 800V
Current Rating (Amps): 2.2A
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Insulation Height: 0.205" (5.20mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
auf Bestellung 1597 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 3+ | 8.24 EUR |
| 18+ | 6.71 EUR |
| 108+ | 5.92 EUR |
| 504+ | 5.31 EUR |
| 1008+ | 5.05 EUR |
| M80-8281042 |
|
Hersteller: HARWIN
Description: HARWIN - M80-8281042 - Stiftleiste, mit Verriegelungslaschen für kraftschlüssige Verbindung, Board-to-Board, Wire-to-Board
tariffCode: 85366910
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 10Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: Datamate L-Tek M80
productTraceability: Yes-Date/Lot Code
Kontaktanschluss: Oberflächenmontage, gerade
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2mm
Description: HARWIN - M80-8281042 - Stiftleiste, mit Verriegelungslaschen für kraftschlüssige Verbindung, Board-to-Board, Wire-to-Board
tariffCode: 85366910
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 10Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: Datamate L-Tek M80
productTraceability: Yes-Date/Lot Code
Kontaktanschluss: Oberflächenmontage, gerade
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2mm
auf Bestellung 96 Stücke:
Lieferzeit 14-21 Tag (e)
| M80-8281042 |
|
Hersteller: Harwin
Роз'єм 2-рядний, Вид = Вилка, Тип конт. = Штирьовий ("тато"), К-сть конт. = 10, Крок, мм = 2, Серія = Datamate L-Tek, Тип монт. = на плату, В-нь між рядами = 2 мм,... Роз'єми Корпус: SMD Од. вим: шт
Anzahl je Verpackung: 18 Stücke
Роз'єм 2-рядний, Вид = Вилка, Тип конт. = Штирьовий ("тато"), К-сть конт. = 10, Крок, мм = 2, Серія = Datamate L-Tek, Тип монт. = на плату, В-нь між рядами = 2 мм,... Роз'єми Корпус: SMD Од. вим: шт
Anzahl je Verpackung: 18 Stücke
verfügbar 2 Stücke:
