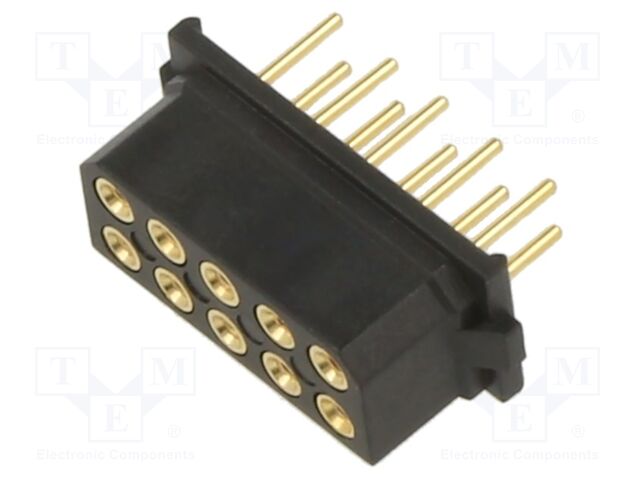

M80-8501045 HARWIN
Hersteller: HARWIN
Category: Raster signal connectors 2,00mm
Description: Connector: wire-wire/PCB; socket; female; PIN: 10; Datamate L-Tek
Mechanical mounting: on PCBs
Manufacturer series: Datamate L-Tek
Flammability rating: UL94V-0
Body material: polyamide
Kind of package: tube
Connector: socket
Electrical mounting: THT
Kind of connector: female
Terminals plating: gold-plated
Contact plating: gold-plated
Contacts pitch: 2mm
Lead length: 3mm
Current rating: 3A
Number of pins: 10
Rated voltage: 0.8kV
Connector pinout layout: 2x5
Type of connector: wire-wire/PCB
Spatial orientation: straight
Produktrezensionen
Produktbewertung abgeben
Technische Details M80-8501045 HARWIN
Description: CONN RCPT 10POS 0.079 GOLD PCB, Packaging: Tube, Connector Type: Receptacle, Voltage Rating: 800V, Mounting Type: Through Hole, Number of Positions: 10, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Female Socket, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Mated Stacking Heights: 7.23mm, 7.85mm, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 12.0µin (0.30µm), Contact Finish - Post: Gold, Part Status: Active, Contact Length - Post: 0.118" (3.00mm), Insulation Height: 0.202" (5.14mm), Row Spacing - Mating: 0.079" (2.00mm), Number of Rows: 2.
Weitere Produktangebote M80-8501045 nach Preis ab 7.04 EUR bis 15.09 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M80-8501045 | Harwin Inc. |
Description: CONN RCPT 10POS 0.079 GOLD PCB Packaging: Tube Connector Type: Receptacle Voltage Rating: 800V Mounting Type: Through Hole Number of Positions: 10 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Female Socket Fastening Type: Locking Ramp Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Mated Stacking Heights: 7.23mm, 7.85mm Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 12.0µin (0.30µm) Contact Finish - Post: Gold Part Status: Active Contact Length - Post: 0.118" (3.00mm) Insulation Height: 0.202" (5.14mm) Row Spacing - Mating: 0.079" (2.00mm) Number of Rows: 2 |
auf Bestellung 2782 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
M80-8501045 | Harwin |
Headers & Wire Housings Datamate L-Tek 5+5 POS DIL FEMALE |
auf Bestellung 163 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
M80-8501045 | HARWIN |
Description: HARWIN - M80-8501045 - Printbuchse, Board-to-Board, Wire-to-Board, 2 mm, 2 Reihe(n), 10 Kontakt(e), Durchsteckmontage tariffCode: 85366930 euEccn: NLR rohsCompliant: Y-EX Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze isCanonical: Y Steckverbindermontage: Durchsteckmontage Anzahl der Kontakte: 10Kontakt(e) SVHC: Lead (04-Feb-2026) Steckverbindersysteme: Board-to-Board, Wire-to-Board Produktpalette: Datamate L-Tek M80 productTraceability: Yes-Date/Lot Code Kontaktanschluss: Durchsteckmontage, gerade usEccn: EAR99 Anzahl der Reihen: 2Reihe(n) Rastermaß: 2mm |
auf Bestellung 134 Stücke: Lieferzeit 14-21 Tag (e) |
|
| M80-8501045 |
|
Hersteller: Harwin Inc.
Description: CONN RCPT 10POS 0.079 GOLD PCB
Packaging: Tube
Connector Type: Receptacle
Voltage Rating: 800V
Mounting Type: Through Hole
Number of Positions: 10
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 7.23mm, 7.85mm
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 12.0µin (0.30µm)
Contact Finish - Post: Gold
Part Status: Active
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.202" (5.14mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
Description: CONN RCPT 10POS 0.079 GOLD PCB
Packaging: Tube
Connector Type: Receptacle
Voltage Rating: 800V
Mounting Type: Through Hole
Number of Positions: 10
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 7.23mm, 7.85mm
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 12.0µin (0.30µm)
Contact Finish - Post: Gold
Part Status: Active
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.202" (5.14mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
auf Bestellung 2782 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 11.47 EUR |
| 18+ | 9.35 EUR |
| 108+ | 8.25 EUR |
| 504+ | 7.4 EUR |
| 1008+ | 7.04 EUR |
| M80-8501045 |
|
Hersteller: Harwin
Headers & Wire Housings Datamate L-Tek 5+5 POS DIL FEMALE
Headers & Wire Housings Datamate L-Tek 5+5 POS DIL FEMALE
auf Bestellung 163 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 12.27 EUR |
| 10+ | 10 EUR |
| 108+ | 8.82 EUR |
| 504+ | 7.91 EUR |
| 1008+ | 7.52 EUR |
| M80-8501045 |
|
Hersteller: HARWIN
Description: HARWIN - M80-8501045 - Printbuchse, Board-to-Board, Wire-to-Board, 2 mm, 2 Reihe(n), 10 Kontakt(e), Durchsteckmontage
tariffCode: 85366930
euEccn: NLR
rohsCompliant: Y-EX
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Steckverbindermontage: Durchsteckmontage
Anzahl der Kontakte: 10Kontakt(e)
SVHC: Lead (04-Feb-2026)
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Produktpalette: Datamate L-Tek M80
productTraceability: Yes-Date/Lot Code
Kontaktanschluss: Durchsteckmontage, gerade
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2mm
Description: HARWIN - M80-8501045 - Printbuchse, Board-to-Board, Wire-to-Board, 2 mm, 2 Reihe(n), 10 Kontakt(e), Durchsteckmontage
tariffCode: 85366930
euEccn: NLR
rohsCompliant: Y-EX
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Steckverbindermontage: Durchsteckmontage
Anzahl der Kontakte: 10Kontakt(e)
SVHC: Lead (04-Feb-2026)
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Produktpalette: Datamate L-Tek M80
productTraceability: Yes-Date/Lot Code
Kontaktanschluss: Durchsteckmontage, gerade
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2mm
auf Bestellung 134 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 17+ | 15.09 EUR |
| 20+ | 12.19 EUR |
| 100+ | 9.53 EUR |
