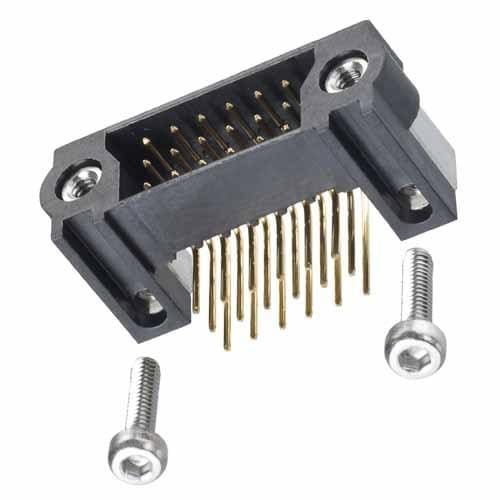

M83-LML3M7N18-0000-000 HARWIN
Hersteller: HARWIN
Description: HARWIN - M83-LML3M7N18-0000-000 - Stiftleiste, Wire-to-Board, 2 mm, 3 Reihe(n), 18 Kontakt(e), Durchsteckmontage
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 18Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Wire-to-Board
Steckverbindertyp: PCB Header
Produktpalette: Datamate Mix-Tek M83-LM
productTraceability: No
Kontaktanschluss: Durchsteckmontage
Anzahl der Reihen: 3Reihe(n)
Rastermaß: 2mm
SVHC: No SVHC (27-Jun-2024)
Produktrezensionen
Produktbewertung abgeben
Technische Details M83-LML3M7N18-0000-000 HARWIN
Description: CONN HEADER R/A 18POS 2MM, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Threaded, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Board or Cable, Number of Rows: 3, Number of Positions: 18, Mounting Type: Through Hole, Right Angle, Current Rating (Amps): 2.2A per Contact, Voltage Rating: 800V, Connector Type: Header, Features: Mating Flange, Mounting Flange, Mounting Hardware, Packaging: Tray, Row Spacing - Mating: 0.079" (2.00mm), Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled, Shrouding: Shrouded - 4 Wall, Insulation Height: 0.303" (7.70mm), Contact Length - Post: 0.157" (4.00mm), Contact Shape: Circular, Contact Finish Thickness - Mating: 29.5µin (0.75µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.079" (2.00mm), Insulation Color: Black.
Weitere Produktangebote M83-LML3M7N18-0000-000 nach Preis ab 26.35 EUR bis 41.66 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M83-LML3M7N18-0000-000 | Harwin |
Headers & Wire Housings Datamate J-Tek 3R 18P F VERT PC TAIL 3MM W/JS |
auf Bestellung 260 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
M83-LML3M7N18-0000-000 | Harwin Inc. |
Description: CONN HEADER R/A 18POS 2MM Contact Material: Phosphor Bronze Material Flammability Rating: UL94 V-0 Termination: Solder Number of Positions Loaded: All Fastening Type: Threaded Contact Type: Male Pin Operating Temperature: -55°C ~ 125°C Style: Board to Board or Cable Number of Rows: 3 Number of Positions: 18 Mounting Type: Through Hole, Right Angle Current Rating (Amps): 2.2A per Contact Voltage Rating: 800V Connector Type: Header Features: Mating Flange, Mounting Flange, Mounting Hardware Packaging: Tray Row Spacing - Mating: 0.079" (2.00mm) Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled Shrouding: Shrouded - 4 Wall Insulation Height: 0.303" (7.70mm) Contact Length - Post: 0.157" (4.00mm) Contact Shape: Circular Contact Finish Thickness - Mating: 29.5µin (0.75µm) Contact Finish - Mating: Gold Pitch - Mating: 0.079" (2.00mm) Insulation Color: Black |
auf Bestellung 90 Stücke: Lieferzeit 10-14 Tag (e) |
|
| M83-LML3M7N18-0000-000 |
|
Hersteller: Harwin
Headers & Wire Housings Datamate J-Tek 3R 18P F VERT PC TAIL 3MM W/JS
Headers & Wire Housings Datamate J-Tek 3R 18P F VERT PC TAIL 3MM W/JS
auf Bestellung 260 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 40.65 EUR |
| 10+ | 32.65 EUR |
| 24+ | 31.08 EUR |
| 48+ | 30.2 EUR |
| 120+ | 29.13 EUR |
| 264+ | 28.13 EUR |
| 504+ | 26.35 EUR |
| M83-LML3M7N18-0000-000 |
|
Hersteller: Harwin Inc.
Description: CONN HEADER R/A 18POS 2MM
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Threaded
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 3
Number of Positions: 18
Mounting Type: Through Hole, Right Angle
Current Rating (Amps): 2.2A per Contact
Voltage Rating: 800V
Connector Type: Header
Features: Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Tray
Row Spacing - Mating: 0.079" (2.00mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.303" (7.70mm)
Contact Length - Post: 0.157" (4.00mm)
Contact Shape: Circular
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.079" (2.00mm)
Insulation Color: Black
Description: CONN HEADER R/A 18POS 2MM
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Threaded
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 3
Number of Positions: 18
Mounting Type: Through Hole, Right Angle
Current Rating (Amps): 2.2A per Contact
Voltage Rating: 800V
Connector Type: Header
Features: Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Tray
Row Spacing - Mating: 0.079" (2.00mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.303" (7.70mm)
Contact Length - Post: 0.157" (4.00mm)
Contact Shape: Circular
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.079" (2.00mm)
Insulation Color: Black
auf Bestellung 90 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 41.66 EUR |
| 24+ | 33.28 EUR |
| 48+ | 31.69 EUR |
| 72+ | 30.8 EUR |
