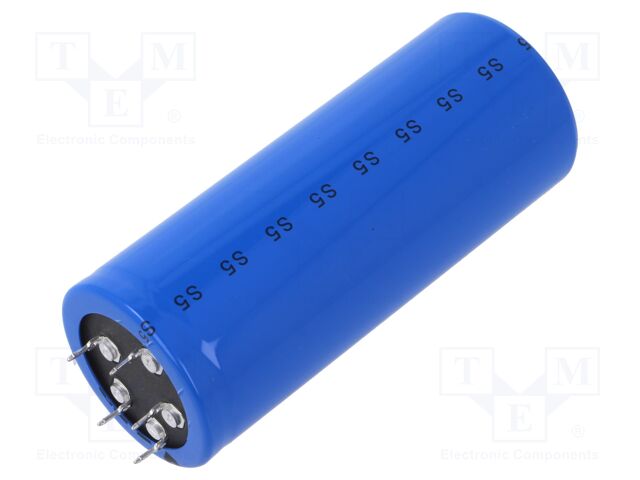

MAL205159103E3 VISHAY
Hersteller: VISHAY
Category: SNAP-IN electrolytic capacitors
Description: Capacitor: electrolytic; SNAP-IN; 10000uF; 100VDC; Ø40x100mm; ±20%
Type of capacitor: electrolytic
Capacitance: 10mF
Operating voltage: 100V DC
Body dimensions: Ø40x100mm
Tolerance: ±20%
Operating temperature: -40...85°C
Height: 100mm
Diameter: 40mm
Mounting: SNAP-IN
| Anzahl | Privatkunde |
|---|---|
| 3+ | 40.41 EUR |
| 5+ | 36.97 EUR |
| 10+ | 35.14 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MAL205159103E3 VISHAY
Description: CAP ALUM 10000UF 20% 100V RADIAL, Packaging: Tape & Box (TB), Tolerance: ±20%, Package / Case: Radial, Can - 5 Lead, Size / Dimension: 1.575" Dia (40.00mm), Polarization: Polar, Mounting Type: Through Hole, Operating Temperature: -40°C ~ 85°C, Applications: General Purpose, Lead Spacing: 0.787" (20.00mm), ESR (Equivalent Series Resistance): 26mOhm @ 100Hz, Lifetime @ Temp.: 12000 Hrs @ 85°C, Height - Seated (Max): 4.134" (105.00mm), Capacitance: 10000 µF, Voltage - Rated: 100 V, Impedance: 21 mOhms, Ripple Current @ Low Frequency: 9.5 A @ 100 Hz.
Weitere Produktangebote MAL205159103E3
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
MAL205159103E3 | Vishay Beyschlag/Draloric/BC Components |
Description: CAP ALUM 10000UF 20% 100V RADIAL Packaging: Tape & Box (TB) Tolerance: ±20% Package / Case: Radial, Can - 5 Lead Size / Dimension: 1.575" Dia (40.00mm) Polarization: Polar Mounting Type: Through Hole Operating Temperature: -40°C ~ 85°C Applications: General Purpose Lead Spacing: 0.787" (20.00mm) ESR (Equivalent Series Resistance): 26mOhm @ 100Hz Lifetime @ Temp.: 12000 Hrs @ 85°C Height - Seated (Max): 4.134" (105.00mm) Capacitance: 10000 µF Voltage - Rated: 100 V Impedance: 21 mOhms Ripple Current @ Low Frequency: 9.5 A @ 100 Hz |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 250 Stücke Im Einkaufswagen Stück im Wert von UAH |
 |
MAL205159103E3 | Vishay / Dale |
Aluminium Electrolytic Capacitors - Radial Leaded 10000 F 100V 40x100mm 85 C 12000h |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 250 Stücke Im Einkaufswagen Stück im Wert von UAH |
| MAL205159103E3 |
|
Hersteller: Vishay Beyschlag/Draloric/BC Components
Description: CAP ALUM 10000UF 20% 100V RADIAL
Packaging: Tape & Box (TB)
Tolerance: ±20%
Package / Case: Radial, Can - 5 Lead
Size / Dimension: 1.575" Dia (40.00mm)
Polarization: Polar
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 85°C
Applications: General Purpose
Lead Spacing: 0.787" (20.00mm)
ESR (Equivalent Series Resistance): 26mOhm @ 100Hz
Lifetime @ Temp.: 12000 Hrs @ 85°C
Height - Seated (Max): 4.134" (105.00mm)
Capacitance: 10000 µF
Voltage - Rated: 100 V
Impedance: 21 mOhms
Ripple Current @ Low Frequency: 9.5 A @ 100 Hz
Description: CAP ALUM 10000UF 20% 100V RADIAL
Packaging: Tape & Box (TB)
Tolerance: ±20%
Package / Case: Radial, Can - 5 Lead
Size / Dimension: 1.575" Dia (40.00mm)
Polarization: Polar
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 85°C
Applications: General Purpose
Lead Spacing: 0.787" (20.00mm)
ESR (Equivalent Series Resistance): 26mOhm @ 100Hz
Lifetime @ Temp.: 12000 Hrs @ 85°C
Height - Seated (Max): 4.134" (105.00mm)
Capacitance: 10000 µF
Voltage - Rated: 100 V
Impedance: 21 mOhms
Ripple Current @ Low Frequency: 9.5 A @ 100 Hz
Produkt ist nicht verfügbar
Mindestbestellmenge: 250 Stücke
Im Einkaufswagen
Stück im Wert von UAH
| MAL205159103E3 |
|
Hersteller: Vishay / Dale
Aluminium Electrolytic Capacitors - Radial Leaded 10000 F 100V 40x100mm 85 C 12000h
Aluminium Electrolytic Capacitors - Radial Leaded 10000 F 100V 40x100mm 85 C 12000h
Produkt ist nicht verfügbar
Mindestbestellmenge: 250 Stücke
Im Einkaufswagen
Stück im Wert von UAH
