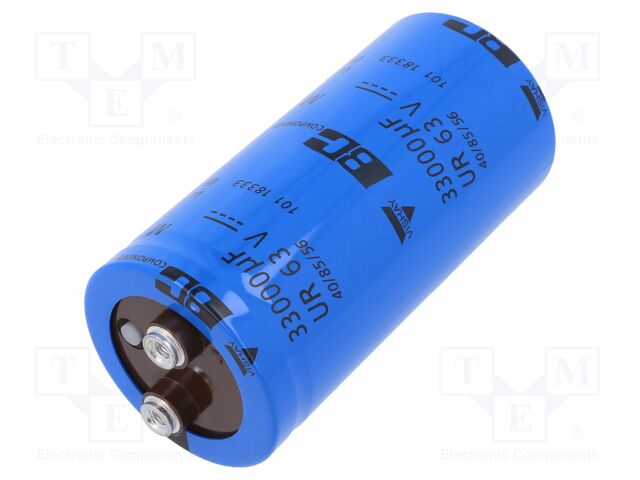

MAL210118333E3 Vishay Beyschlag/Draloric/BC Components
Hersteller: Vishay Beyschlag/Draloric/BC Components
Description: CAP ALUM 33000UF 20% 63V SCREW
Packaging: Bulk
Tolerance: ±20%
Package / Case: Radial, Can - Screw Terminals
Size / Dimension: 1.969" Dia (50.00mm)
Polarization: Polar
Mounting Type: Chassis Mount
Operating Temperature: -40°C ~ 85°C
Applications: General Purpose
Lead Spacing: 0.874" (22.20mm)
ESR (Equivalent Series Resistance): 14mOhm @ 100Hz
Lifetime @ Temp.: 10000 Hrs @ 85°C
Height - Seated (Max): 4.362" (110.80mm)
Part Status: Active
Capacitance: 33000 µF
Voltage - Rated: 63 V
Impedance: 12 mOhms
Ripple Current @ Low Frequency: 12.9 A @ 100 Hz
Produktrezensionen
Produktbewertung abgeben
Technische Details MAL210118333E3 Vishay Beyschlag/Draloric/BC Components
Description: CAP ALUM 33000UF 20% 63V SCREW, Packaging: Bulk, Tolerance: ±20%, Package / Case: Radial, Can - Screw Terminals, Size / Dimension: 1.969" Dia (50.00mm), Polarization: Polar, Mounting Type: Chassis Mount, Operating Temperature: -40°C ~ 85°C, Applications: General Purpose, Lead Spacing: 0.874" (22.20mm), ESR (Equivalent Series Resistance): 14mOhm @ 100Hz, Lifetime @ Temp.: 10000 Hrs @ 85°C, Height - Seated (Max): 4.362" (110.80mm), Part Status: Active, Capacitance: 33000 µF, Voltage - Rated: 63 V, Impedance: 12 mOhms, Ripple Current @ Low Frequency: 12.9 A @ 100 Hz.
Weitere Produktangebote MAL210118333E3
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
MAL210118333E3 | Hersteller : Vishay / BC Components |
Aluminium Electrolytic Capacitors - Screw Terminal 33000 F 63V 50x105mm 85 C 10000h |
Produkt ist nicht verfügbar |
|
 |
MAL210118333E3 | Hersteller : VISHAY |
Category: Screw terminal and others el. capacitors Description: Capacitor: electrolytic; screw type; 33mF; 63VDC; Ø50x105mm; ±20% Operating temperature: -40...85°C Mounting: screw type Capacitance: 33mF Diameter: 50mm Body dimensions: Ø50x105mm Height: 105mm Tolerance: ±20% Operating voltage: 63V DC Service life: 10000h Type of capacitor: electrolytic |
Produkt ist nicht verfügbar |
