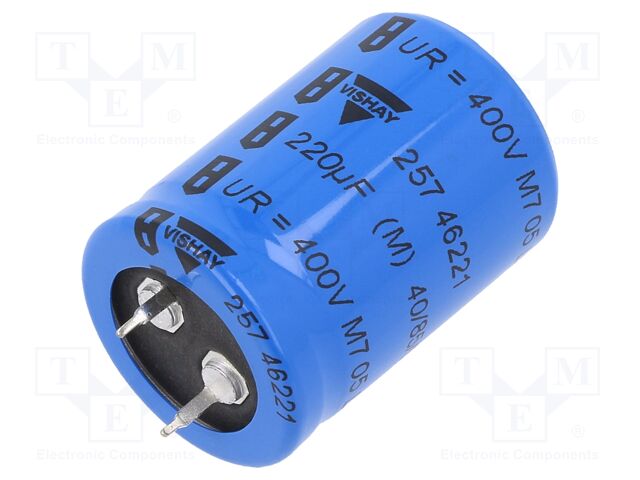

MAL225746221E3 Vishay / BC Components
| Anzahl | Privatkunde |
|---|---|
| 1+ | 17.15 EUR |
| 10+ | 12.23 EUR |
| 50+ | 10.2 EUR |
| 100+ | 9.57 EUR |
| 500+ | 8.46 EUR |
| 1000+ | 8.1 EUR |
| 2000+ | 8.04 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
10-14 Tag (e)
Produktrezensionen
Produktbewertung abgeben
Technische Details MAL225746221E3 Vishay / BC Components
Description: CAP ALUM 220UF 20% 400V SNAP TH, Tolerance: ±20%, Packaging: Box, Package / Case: Radial, Can - Snap-In, Size / Dimension: 0.984" Dia (25.00mm), Polarization: Polar, Mounting Type: Through Hole, Operating Temperature: -40°C ~ 85°C, Applications: General Purpose, Lead Spacing: 0.394" (10.00mm), ESR (Equivalent Series Resistance): 820mOhm @ 100Hz, Lifetime @ Temp.: 5000 Hrs @ 85°C, Height - Seated (Max): 1.457" (37.00mm), Part Status: Active, Capacitance: 220 µF, Voltage - Rated: 400 V, Impedance: 670 mOhms, Ripple Current @ Low Frequency: 1.42 A @ 100 Hz, Ripple Current @ High Frequency: 1.988 A @ 10 kHz.
Weitere Produktangebote MAL225746221E3 nach Preis ab 8.64 EUR bis 17.53 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MAL225746221E3 | Vishay Beyschlag/Draloric/BC Components |
 Description: CAP ALUM 220UF 20% 400V SNAP THTolerance: ±20% Packaging: Box Package / Case: Radial, Can - Snap-In Size / Dimension: 0.984" Dia (25.00mm) Polarization: Polar Mounting Type: Through Hole Operating Temperature: -40°C ~ 85°C Applications: General Purpose Lead Spacing: 0.394" (10.00mm) ESR (Equivalent Series Resistance): 820mOhm @ 100Hz Lifetime @ Temp.: 5000 Hrs @ 85°C Height - Seated (Max): 1.457" (37.00mm) Part Status: Active Capacitance: 220 µF Voltage - Rated: 400 V Impedance: 670 mOhms Ripple Current @ Low Frequency: 1.42 A @ 100 Hz Ripple Current @ High Frequency: 1.988 A @ 10 kHz |
auf Bestellung 685 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
MAL225746221E3 | VISHAY |
Category: SNAP-IN electrolytic capacitors Description: Capacitor: electrolytic; SNAP-IN; 220uF; 400VDC; Ø25x35mm; ±20% Mounting: SNAP-IN Tolerance: ±20% Operating voltage: 400V DC Body dimensions: Ø25x35mm Diameter: 25mm Terminal pitch: 10mm Service life: 5000h Operating temperature: -40...85°C Type of capacitor: electrolytic Capacitance: 220µF Height: 35mm |
auf Bestellung 178 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| MAL225746221E3 |
|
Hersteller: Vishay Beyschlag/Draloric/BC Components
Description: CAP ALUM 220UF 20% 400V SNAP TH
Tolerance: ±20%
Packaging: Box
Package / Case: Radial, Can - Snap-In
Size / Dimension: 0.984" Dia (25.00mm)
Polarization: Polar
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 85°C
Applications: General Purpose
Lead Spacing: 0.394" (10.00mm)
ESR (Equivalent Series Resistance): 820mOhm @ 100Hz
Lifetime @ Temp.: 5000 Hrs @ 85°C
Height - Seated (Max): 1.457" (37.00mm)
Part Status: Active
Capacitance: 220 µF
Voltage - Rated: 400 V
Impedance: 670 mOhms
Ripple Current @ Low Frequency: 1.42 A @ 100 Hz
Ripple Current @ High Frequency: 1.988 A @ 10 kHz
Description: CAP ALUM 220UF 20% 400V SNAP TH
Tolerance: ±20%
Packaging: Box
Package / Case: Radial, Can - Snap-In
Size / Dimension: 0.984" Dia (25.00mm)
Polarization: Polar
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 85°C
Applications: General Purpose
Lead Spacing: 0.394" (10.00mm)
ESR (Equivalent Series Resistance): 820mOhm @ 100Hz
Lifetime @ Temp.: 5000 Hrs @ 85°C
Height - Seated (Max): 1.457" (37.00mm)
Part Status: Active
Capacitance: 220 µF
Voltage - Rated: 400 V
Impedance: 670 mOhms
Ripple Current @ Low Frequency: 1.42 A @ 100 Hz
Ripple Current @ High Frequency: 1.988 A @ 10 kHz
auf Bestellung 685 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 17.53 EUR |
| 10+ | 12.5 EUR |
| 50+ | 10.42 EUR |
| 100+ | 9.77 EUR |
| 500+ | 8.64 EUR |
| MAL225746221E3 |
|
Hersteller: VISHAY
Category: SNAP-IN electrolytic capacitors
Description: Capacitor: electrolytic; SNAP-IN; 220uF; 400VDC; Ø25x35mm; ±20%
Mounting: SNAP-IN
Tolerance: ±20%
Operating voltage: 400V DC
Body dimensions: Ø25x35mm
Diameter: 25mm
Terminal pitch: 10mm
Service life: 5000h
Operating temperature: -40...85°C
Type of capacitor: electrolytic
Capacitance: 220µF
Height: 35mm
Category: SNAP-IN electrolytic capacitors
Description: Capacitor: electrolytic; SNAP-IN; 220uF; 400VDC; Ø25x35mm; ±20%
Mounting: SNAP-IN
Tolerance: ±20%
Operating voltage: 400V DC
Body dimensions: Ø25x35mm
Diameter: 25mm
Terminal pitch: 10mm
Service life: 5000h
Operating temperature: -40...85°C
Type of capacitor: electrolytic
Capacitance: 220µF
Height: 35mm
auf Bestellung 178 Stücke:
Lieferzeit 14-21 Tag (e)
