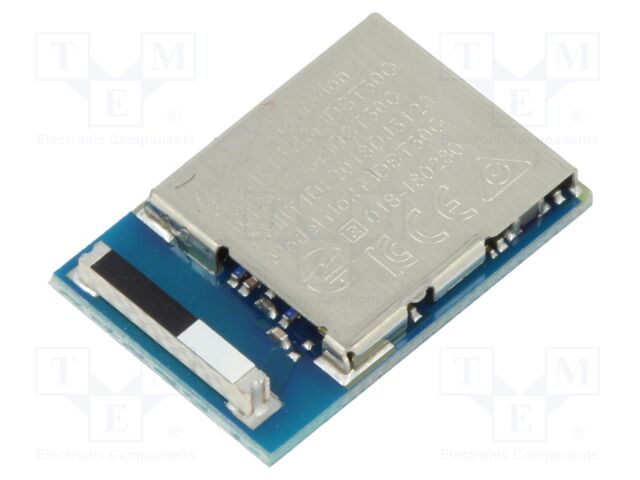

MDBT50Q-1MV2 RAYTAC
Hersteller: RAYTAC
Category: IoT (WiFi/Bluetooth) modules
Description: Module: Bluetooth Low Energy; Bluetooth: 5.0,5.1,5.2,5.4; 8dBm
Type of communications module: Bluetooth Low Energy
Bluetooth version: 5.1; 5.2; 5.4; 5.0
Transmitter output power: 8dBm
Supply voltage: 1.7...5.5V DC
Interface: GPIO; I2C; I2S; NFC; PMD; PWM; SPI; UART; USB
Receiver sensitivity: -103dBm
Mounting: SMD
Dimensions: 15.5x10.5x2.05mm
Components: nRF52840
Operating temperature: -40...85°C
Kind of architecture: Cortex M4
Ciphering: AES128
Memory: 256kB RAM; 1MB FLASH
Kind of antenna: Chip
Communictions protocol: ANT+; IEEE 802.15.4; Thread; ZigBee
Band: 2.4GHz
Additional functions: NFC
Range: 550m
Number of A/D channels: 8
Number of inputs/outputs: 48
Data transfer rate: 2Mbps
| Anzahl | Privatkunde |
|---|---|
| 7+ | 12.82 EUR |
| 8+ | 11.8 EUR |
| 10+ | 10.67 EUR |
| 25+ | 10.25 EUR |
| 88+ | 9.66 EUR |
| 176+ | 9.39 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MDBT50Q-1MV2 RAYTAC
Category: IoT (WiFi/Bluetooth) modules, Description: Module: Bluetooth Low Energy; Bluetooth: 5.0,5.1,5.2,5.4; 8dBm, Type of communications module: Bluetooth Low Energy, Bluetooth version: 5.1; 5.2; 5.4; 5.0, Transmitter output power: 8dBm, Supply voltage: 1.7...5.5V DC, Interface: GPIO; I2C; I2S; NFC; PMD; PWM; SPI; UART; USB, Receiver sensitivity: -103dBm, Mounting: SMD, Dimensions: 15.5x10.5x2.05mm, Components: nRF52840, Operating temperature: -40...85°C, Kind of architecture: Cortex M4, Ciphering: AES128, Memory: 256kB RAM; 1MB FLASH, Kind of antenna: Chip, Communictions protocol: ANT+; IEEE 802.15.4; Thread; ZigBee, Band: 2.4GHz, Additional functions: NFC, Range: 550m, Number of A/D channels: 8, Number of inputs/outputs: 48, Data transfer rate: 2Mbps.
Weitere Produktangebote MDBT50Q-1MV2 nach Preis ab 15.32 EUR bis 16.28 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MDBT50Q-1MV2 | Raytac |
Description: RF TXRX MOD BT CHIP SMD NORDIC Packaging: Bag Package / Case: 61-SMD Module Sensitivity: -103dBm Mounting Type: Surface Mount Frequency: 2.36GHz ~ 2.5GHz Memory Size: 1MB Flash, 256kB RAM Operating Temperature: -40°C ~ 85°C (TA) Voltage - Supply: 1.7V ~ 5.5V Power - Output: 8dBm Data Rate: 2Mbps Protocol: Bluetooth v5.2, Zigbee® Current - Receiving: 3.7mA ~ 11.1mA Current - Transmitting: 2.7mA ~ 32.7mA Antenna Type: Integrated, Chip Utilized IC / Part: nRF52840 RF Family/Standard: 802.15.4, Bluetooth Serial Interfaces: ADC, GPIO, I2C, I2S, SPI, PDM, PWM, UART, USB Part Status: Active DigiKey Programmable: Not Verified |
auf Bestellung 106 Stücke: Lieferzeit 10-14 Tag (e) |
|
| MDBT50Q-1MV2 |
|
Hersteller: Raytac
Description: RF TXRX MOD BT CHIP SMD NORDIC
Packaging: Bag
Package / Case: 61-SMD Module
Sensitivity: -103dBm
Mounting Type: Surface Mount
Frequency: 2.36GHz ~ 2.5GHz
Memory Size: 1MB Flash, 256kB RAM
Operating Temperature: -40°C ~ 85°C (TA)
Voltage - Supply: 1.7V ~ 5.5V
Power - Output: 8dBm
Data Rate: 2Mbps
Protocol: Bluetooth v5.2, Zigbee®
Current - Receiving: 3.7mA ~ 11.1mA
Current - Transmitting: 2.7mA ~ 32.7mA
Antenna Type: Integrated, Chip
Utilized IC / Part: nRF52840
RF Family/Standard: 802.15.4, Bluetooth
Serial Interfaces: ADC, GPIO, I2C, I2S, SPI, PDM, PWM, UART, USB
Part Status: Active
DigiKey Programmable: Not Verified
Description: RF TXRX MOD BT CHIP SMD NORDIC
Packaging: Bag
Package / Case: 61-SMD Module
Sensitivity: -103dBm
Mounting Type: Surface Mount
Frequency: 2.36GHz ~ 2.5GHz
Memory Size: 1MB Flash, 256kB RAM
Operating Temperature: -40°C ~ 85°C (TA)
Voltage - Supply: 1.7V ~ 5.5V
Power - Output: 8dBm
Data Rate: 2Mbps
Protocol: Bluetooth v5.2, Zigbee®
Current - Receiving: 3.7mA ~ 11.1mA
Current - Transmitting: 2.7mA ~ 32.7mA
Antenna Type: Integrated, Chip
Utilized IC / Part: nRF52840
RF Family/Standard: 802.15.4, Bluetooth
Serial Interfaces: ADC, GPIO, I2C, I2S, SPI, PDM, PWM, UART, USB
Part Status: Active
DigiKey Programmable: Not Verified
auf Bestellung 106 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 16.28 EUR |
| 20+ | 15.89 EUR |
| 50+ | 15.32 EUR |
