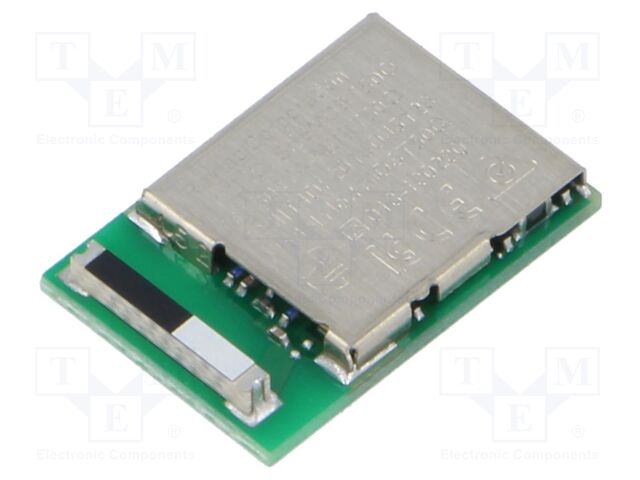

MDBT50Q-512K RAYTAC
Hersteller: RAYTAC
Category: IoT (WiFi/Bluetooth) modules
Description: Module: Bluetooth Low Energy; Bluetooth: 5.0,5.1,5.2,5.4; 8dBm
Bluetooth version: 5.1; 5.2; 5.4; 5.0
Components: nRF52833
Interface: GPIO; I2C; I2S; NFC; PMD; PWM; SPI; UART; USB
Communictions protocol: ANT+; IEEE 802.15.4; Thread; ZigBee
Kind of architecture: Cortex M4
Ciphering: AES128
Memory: 128kB RAM; 512kB FLASH
Dimensions: 15.5x10.5x2.05mm
Kind of antenna: Chip
Band: 2.4GHz
Receiver sensitivity: -103dBm
Additional functions: NFC
Transmitter output power: 8dBm
Range: 550m
Mounting: SMD
Supply voltage: 1.7...5.5V DC
Number of A/D channels: 8
Number of inputs/outputs: 42
Data transfer rate: 2Mbps
Type of communications module: Bluetooth Low Energy
Operating temperature: -40...105°C
| Anzahl | Privatkunde |
|---|---|
| 8+ | 10.73 EUR |
| 10+ | 10.08 EUR |
| 25+ | 9.54 EUR |
| 88+ | 9 EUR |
| 176+ | 8.76 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MDBT50Q-512K RAYTAC
Category: IoT (WiFi/Bluetooth) modules, Description: Module: Bluetooth Low Energy; Bluetooth: 5.0,5.1,5.2,5.4; 8dBm, Bluetooth version: 5.1; 5.2; 5.4; 5.0, Components: nRF52833, Interface: GPIO; I2C; I2S; NFC; PMD; PWM; SPI; UART; USB, Communictions protocol: ANT+; IEEE 802.15.4; Thread; ZigBee, Kind of architecture: Cortex M4, Ciphering: AES128, Memory: 128kB RAM; 512kB FLASH, Dimensions: 15.5x10.5x2.05mm, Kind of antenna: Chip, Band: 2.4GHz, Receiver sensitivity: -103dBm, Additional functions: NFC, Transmitter output power: 8dBm, Range: 550m, Mounting: SMD, Supply voltage: 1.7...5.5V DC, Number of A/D channels: 8, Number of inputs/outputs: 42, Data transfer rate: 2Mbps, Type of communications module: Bluetooth Low Energy, Operating temperature: -40...105°C.
Weitere Produktangebote MDBT50Q-512K nach Preis ab 13.16 EUR bis 13.92 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MDBT50Q-512K | Raytac |
Description: RF TXRX MOD 802.15.4 BT CHIP SMD Current - Transmitting: 2.3mA ~ 30.4mA Current - Receiving: 3.4mA ~ 10.7mA Protocol: Bluetooth v5.4, Zigbee® Data Rate: 2Mbps Power - Output: 8dBm Voltage - Supply: 1.7V ~ 5.5V Operating Temperature: -40°C ~ 105°C (TA) Memory Size: 512kB Flash, 128kB RAM Frequency: 2.36GHz ~ 2.5GHz Mounting Type: Surface Mount Sensitivity: -103dBm Package / Case: 61-SMD Module Packaging: Bag DigiKey Programmable: Not Verified Part Status: Active Serial Interfaces: ADC, GPIO, I2C, I2S, SPI, PDM, PWM, UART, USB RF Family/Standard: 802.15.4, Bluetooth Utilized IC / Part: nRF52833 Antenna Type: Integrated, Chip |
auf Bestellung 195 Stücke: Lieferzeit 10-14 Tag (e) |
|
| MDBT50Q-512K |
|
Hersteller: Raytac
Description: RF TXRX MOD 802.15.4 BT CHIP SMD
Current - Transmitting: 2.3mA ~ 30.4mA
Current - Receiving: 3.4mA ~ 10.7mA
Protocol: Bluetooth v5.4, Zigbee®
Data Rate: 2Mbps
Power - Output: 8dBm
Voltage - Supply: 1.7V ~ 5.5V
Operating Temperature: -40°C ~ 105°C (TA)
Memory Size: 512kB Flash, 128kB RAM
Frequency: 2.36GHz ~ 2.5GHz
Mounting Type: Surface Mount
Sensitivity: -103dBm
Package / Case: 61-SMD Module
Packaging: Bag
DigiKey Programmable: Not Verified
Part Status: Active
Serial Interfaces: ADC, GPIO, I2C, I2S, SPI, PDM, PWM, UART, USB
RF Family/Standard: 802.15.4, Bluetooth
Utilized IC / Part: nRF52833
Antenna Type: Integrated, Chip
Description: RF TXRX MOD 802.15.4 BT CHIP SMD
Current - Transmitting: 2.3mA ~ 30.4mA
Current - Receiving: 3.4mA ~ 10.7mA
Protocol: Bluetooth v5.4, Zigbee®
Data Rate: 2Mbps
Power - Output: 8dBm
Voltage - Supply: 1.7V ~ 5.5V
Operating Temperature: -40°C ~ 105°C (TA)
Memory Size: 512kB Flash, 128kB RAM
Frequency: 2.36GHz ~ 2.5GHz
Mounting Type: Surface Mount
Sensitivity: -103dBm
Package / Case: 61-SMD Module
Packaging: Bag
DigiKey Programmable: Not Verified
Part Status: Active
Serial Interfaces: ADC, GPIO, I2C, I2S, SPI, PDM, PWM, UART, USB
RF Family/Standard: 802.15.4, Bluetooth
Utilized IC / Part: nRF52833
Antenna Type: Integrated, Chip
auf Bestellung 195 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 13.92 EUR |
| 20+ | 13.57 EUR |
| 50+ | 13.16 EUR |
