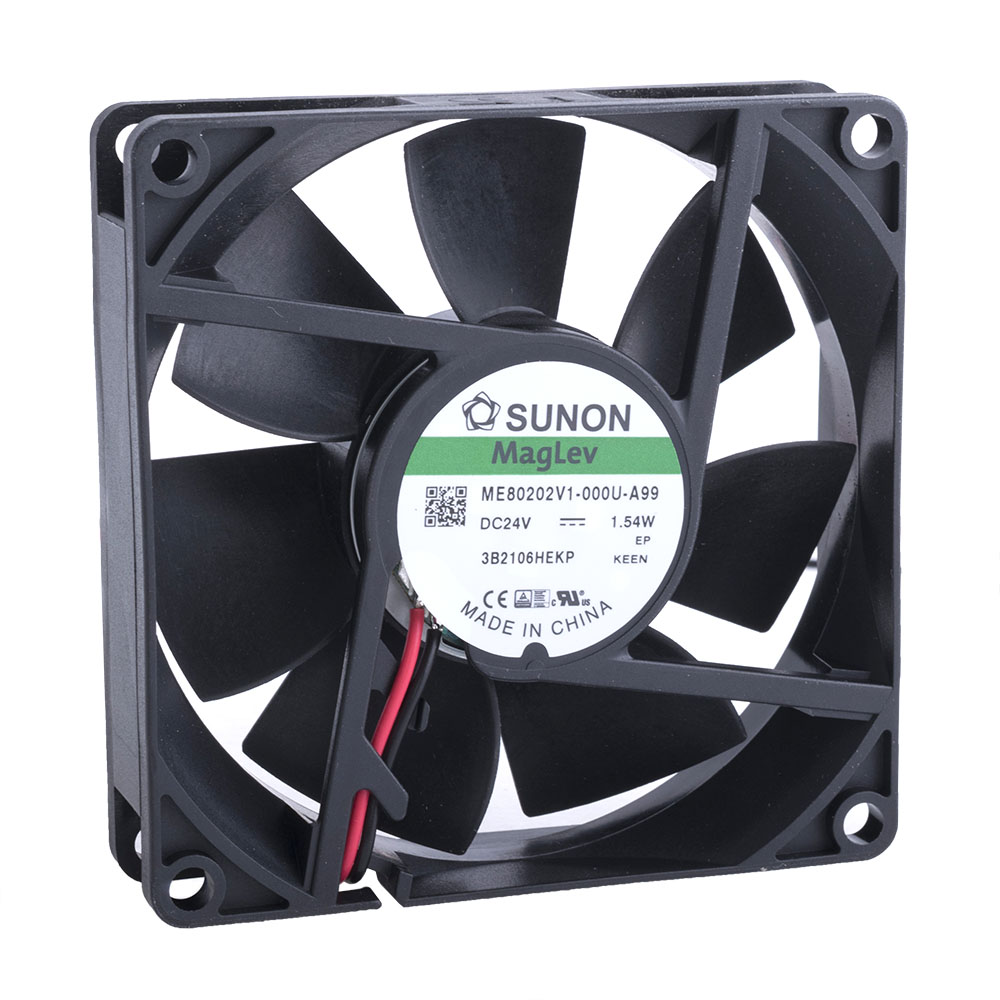

ME80202V1-000U-A99 SUNON
Hersteller: SUNON
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 80x80x20mm; 61.16m3/h; 38dBA; Vapo; Len: 300mm
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Type of fan: DC
Fan dimensions: 80x80x20mm
Fan motor: brushless DC
Impeller material: thermoplastic
Insulation class: A
Kind of Bearing: Vapo
Fan efficiency: 61.16m3/h
Static pressure: 4.57mm H2O
Noise level: 38dBA
Rotational rate/speed: 3300 (±10%)rpm
Current and power consumption tolerance: ±15%
Power consumption: 1.54W
Wire size: 24AWG
Cable length: 0.3m
Additional functions: autorestart
Kind of fan: axial
Min. insulation resistance: 10MΩ
Enclosure material: thermoplastic
Current rating: 64mA
Supply voltage: 24V DC
Leads: lead x2
Operating voltage: 8...27.6V
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 80x80x20mm; 61.16m3/h; 38dBA; Vapo; Len: 300mm
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Type of fan: DC
Fan dimensions: 80x80x20mm
Fan motor: brushless DC
Impeller material: thermoplastic
Insulation class: A
Kind of Bearing: Vapo
Fan efficiency: 61.16m3/h
Static pressure: 4.57mm H2O
Noise level: 38dBA
Rotational rate/speed: 3300 (±10%)rpm
Current and power consumption tolerance: ±15%
Power consumption: 1.54W
Wire size: 24AWG
Cable length: 0.3m
Additional functions: autorestart
Kind of fan: axial
Min. insulation resistance: 10MΩ
Enclosure material: thermoplastic
Current rating: 64mA
Supply voltage: 24V DC
Leads: lead x2
Operating voltage: 8...27.6V
auf Bestellung 286 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
12+ | 6.11 EUR |
14+ | 5.16 EUR |
50+ | 4.49 EUR |
200+ | 4.28 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details ME80202V1-000U-A99 SUNON
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 80x80x20mm; 61.16m3/h; 38dBA; Vapo; Len: 300mm, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Type of fan: DC, Fan dimensions: 80x80x20mm, Fan motor: brushless DC, Impeller material: thermoplastic, Insulation class: A, Kind of Bearing: Vapo, Fan efficiency: 61.16m3/h, Static pressure: 4.57mm H2O, Noise level: 38dBA, Rotational rate/speed: 3300 (±10%)rpm, Current and power consumption tolerance: ±15%, Power consumption: 1.54W, Wire size: 24AWG, Cable length: 0.3m, Additional functions: autorestart, Kind of fan: axial, Min. insulation resistance: 10MΩ, Enclosure material: thermoplastic, Current rating: 64mA, Supply voltage: 24V DC, Leads: lead x2, Operating voltage: 8...27.6V, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote ME80202V1-000U-A99 nach Preis ab 4.28 EUR bis 33.92 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ME80202V1-000U-A99 | Hersteller : SUNON |
Category: DC24V Fans Description: Fan: DC; axial; 24VDC; 80x80x20mm; 61.16m3/h; 38dBA; Vapo; Len: 300mm Operating temperature: -10...70°C Flammability rating: UL94V-0 Type of fan: DC Fan dimensions: 80x80x20mm Fan motor: brushless DC Impeller material: thermoplastic Insulation class: A Kind of Bearing: Vapo Fan efficiency: 61.16m3/h Static pressure: 4.57mm H2O Noise level: 38dBA Rotational rate/speed: 3300 (±10%)rpm Current and power consumption tolerance: ±15% Power consumption: 1.54W Wire size: 24AWG Cable length: 0.3m Additional functions: autorestart Kind of fan: axial Min. insulation resistance: 10MΩ Enclosure material: thermoplastic Current rating: 64mA Supply voltage: 24V DC Leads: lead x2 Operating voltage: 8...27.6V Anzahl je Verpackung: 1 Stücke |
auf Bestellung 286 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||||
ME80202V1-000U-A99 | Hersteller : Sunon | DC Fans Axial Fan, 80x80x20mm, 24VDC, 36CFM, 0.18"H2O, Vapo, Wire, Auto Restart |
auf Bestellung 200 Stücke: Lieferzeit 14-28 Tag (e) |
|
|||||||||||||||
ME80202V1-000U-A99 | Hersteller : Sunon | ME80202V1-000U-A99 |
auf Bestellung 286 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||
ME80202V1-000U-A99 | Hersteller : Sunon | ME80202V1-000U-A99 |
auf Bestellung 25 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||
ME80202V1-A99 (ME80202V1-000U-A99) Produktcode: 177175 |
Hersteller : Sunon |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Abmessungen, mm: 80x80x20 mm Spannung, V: 24 DC Luftvolumen, m3/Stunde: 61,16 м³/год. Leistung, Watt: 1,54 Вт Lärm, dB: 38 дБ Rotationsgeschwindigkeit, r/min: 3300 об/хв Beschreibung: Підшипник Vapo (магнітна підвіска) |
Produkt ist nicht verfügbar
|
||||||||||||||||
ME80202V1-000U-A99 | Hersteller : Sunon Fans |
Description: FAN AXIAL 80X20MM 24VDC WIRE Packaging: Bulk Features: Auto Restart Voltage - Rated: 24VDC Size / Dimension: Square - 80mm L x 80mm H Bearing Type: Vapo-Bearing™ RPM: 3300 RPM Air Flow: 36.0 CFM (1.01m³/min) Width: 20.00mm Weight: 0.146 lb (66.22 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 38.0dB(A) Static Pressure: 0.180 in H2O (44.8 Pa) Power (Watts): 1.54 W |
Produkt ist nicht verfügbar |
