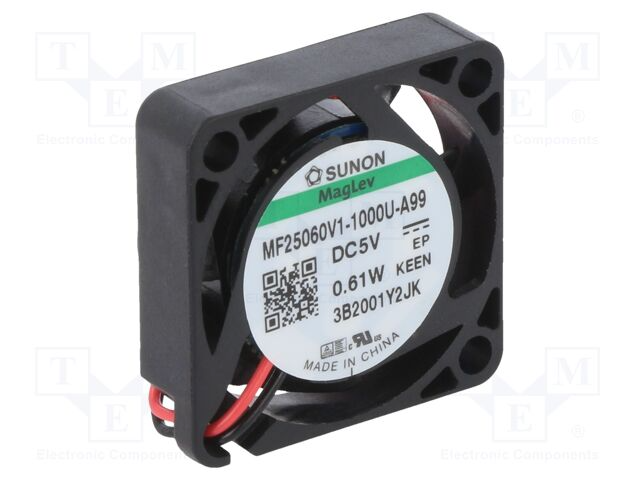

MF25060V1-1000U-A99 Sunon
Hersteller: Sunon
DC Fans DC Axial Fan, 25x25x6.5mm, 5VDC, 0.23"H2O, Vapo, 2xWire/Housing, Auto Restart
| Anzahl | Privatkunde |
|---|---|
| 1+ | 13.78 EUR |
| 10+ | 11.22 EUR |
| 25+ | 11 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MF25060V1-1000U-A99 Sunon
Category: DC5V Fans, Description: Fan: DC; axial; 5VDC; 25x25x6mm; 5.1m3/h; 24.8dBA; Vapo; 13000rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 5V DC, Operating voltage: 2.8...6V DC, Fan dimensions: 25x25x6mm, Current rating: 0.115A, Fan efficiency: 5.1m3/h, Noise level: 24.8dBA, Kind of Bearing: Vapo, Rotational rate/speed: 13000rpm, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x2, Lead length: 0.15m, Operating temperature: -10...70°C, Additional functions: autorestart, Power consumption: 0.58W, Fan motor: brushless DC, Current and power consumption tolerance: ±15%, Insulation class: A, Flammability rating: UL94V-0, Min. insulation resistance: 10MΩ.
Weitere Produktangebote MF25060V1-1000U-A99 nach Preis ab 7.33 EUR bis 13.72 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF25060V1-1000U-A99 | SUNON |
Category: DC5V Fans Description: Fan: DC; axial; 5VDC; 25x25x6mm; 5.1m3/h; 24.8dBA; Vapo; 13000rpm Type of fan: DC Kind of fan: axial Supply voltage: 5V DC Operating voltage: 2.8...6V DC Fan dimensions: 25x25x6mm Current rating: 0.115A Fan efficiency: 5.1m3/h Noise level: 24.8dBA Kind of Bearing: Vapo Rotational rate/speed: 13000rpm Impeller material: thermoplastic Enclosure material: thermoplastic Leads: leads x2 Lead length: 0.15m Operating temperature: -10...70°C Additional functions: autorestart Power consumption: 0.58W Fan motor: brushless DC Current and power consumption tolerance: ±15% Insulation class: A Flammability rating: UL94V-0 Min. insulation resistance: 10MΩ |
auf Bestellung 941 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
 |
MF25060V1-1000U-A99 | Sunon Fans |
Description: FAN AXIAL 25X6.5MM 5VDC WIRE Packaging: Bulk Features: Auto Restart Voltage - Rated: 5VDC Size / Dimension: Square - 25mm L x 25mm H Bearing Type: Vapo-Bearing™ RPM: 13000 RPM Air Flow: 3.0 CFM (0.084m³/min) Width: 6.50mm Weight: 0.012 lb (5.44 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: cURus, TUV Fan Type: Tubeaxial Noise: 24.8dB(A) Static Pressure: 0.230 in H2O (57.3 Pa) Part Status: Active Power (Watts): 580 mW |
auf Bestellung 3520 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
MF25060V1-1000U-A99 | SUNON |
Description: SUNON - MF25060V1-1000U-A99 - DC FAN, VAPO, 25MM, 13000RPM, 5VDC tariffCode: 0 euEccn: NLR Stromanschluss: 2 Lead Wires rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: YES Art des Lagers: Vapo Bearing Nennleistung: 580mW isCanonical: Y IP-Schutzart: - Luftstrom - m3/min: - Nennstrom: 115mA Außentiefe: 6mm Geräuschentwicklung: 24.8dBA Luftstrom - CFM: 3cu.ft/min SVHC: No SVHC (27-Jun-2024) Lüfterrahmen: Square Produktpalette: DC Brushless M Series productTraceability: No Rahmengröße: 25mm usEccn: EAR99 Versorgungsspannung, V DC: 5V Nenndrehzahl: 13000rpm directShipCharge: 25 |
auf Bestellung 2 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH | ||||||||||||
| MF25060V1-1000U-A99 | Sunon |
Motor Fan 25x25x6mm |
auf Bestellung 2340 Stücke: Lieferzeit 14-21 Tag (e) |
|
| MF25060V1-1000U-A99 |
|
Hersteller: SUNON
Category: DC5V Fans
Description: Fan: DC; axial; 5VDC; 25x25x6mm; 5.1m3/h; 24.8dBA; Vapo; 13000rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 5V DC
Operating voltage: 2.8...6V DC
Fan dimensions: 25x25x6mm
Current rating: 0.115A
Fan efficiency: 5.1m3/h
Noise level: 24.8dBA
Kind of Bearing: Vapo
Rotational rate/speed: 13000rpm
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x2
Lead length: 0.15m
Operating temperature: -10...70°C
Additional functions: autorestart
Power consumption: 0.58W
Fan motor: brushless DC
Current and power consumption tolerance: ±15%
Insulation class: A
Flammability rating: UL94V-0
Min. insulation resistance: 10MΩ
Category: DC5V Fans
Description: Fan: DC; axial; 5VDC; 25x25x6mm; 5.1m3/h; 24.8dBA; Vapo; 13000rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 5V DC
Operating voltage: 2.8...6V DC
Fan dimensions: 25x25x6mm
Current rating: 0.115A
Fan efficiency: 5.1m3/h
Noise level: 24.8dBA
Kind of Bearing: Vapo
Rotational rate/speed: 13000rpm
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x2
Lead length: 0.15m
Operating temperature: -10...70°C
Additional functions: autorestart
Power consumption: 0.58W
Fan motor: brushless DC
Current and power consumption tolerance: ±15%
Insulation class: A
Flammability rating: UL94V-0
Min. insulation resistance: 10MΩ
auf Bestellung 941 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 11+ | 8.2 EUR |
| 50+ | 7.44 EUR |
| 100+ | 7.33 EUR |
| MF25060V1-1000U-A99 |
|
Hersteller: Sunon Fans
Description: FAN AXIAL 25X6.5MM 5VDC WIRE
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 5VDC
Size / Dimension: Square - 25mm L x 25mm H
Bearing Type: Vapo-Bearing™
RPM: 13000 RPM
Air Flow: 3.0 CFM (0.084m³/min)
Width: 6.50mm
Weight: 0.012 lb (5.44 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: cURus, TUV
Fan Type: Tubeaxial
Noise: 24.8dB(A)
Static Pressure: 0.230 in H2O (57.3 Pa)
Part Status: Active
Power (Watts): 580 mW
Description: FAN AXIAL 25X6.5MM 5VDC WIRE
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 5VDC
Size / Dimension: Square - 25mm L x 25mm H
Bearing Type: Vapo-Bearing™
RPM: 13000 RPM
Air Flow: 3.0 CFM (0.084m³/min)
Width: 6.50mm
Weight: 0.012 lb (5.44 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: cURus, TUV
Fan Type: Tubeaxial
Noise: 24.8dB(A)
Static Pressure: 0.230 in H2O (57.3 Pa)
Part Status: Active
Power (Watts): 580 mW
auf Bestellung 3520 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 13.72 EUR |
| 10+ | 11.17 EUR |
| 25+ | 10.2 EUR |
| 50+ | 9.51 EUR |
| 100+ | 8.84 EUR |
| 250+ | 8.43 EUR |
| MF25060V1-1000U-A99 |
|
Hersteller: SUNON
Description: SUNON - MF25060V1-1000U-A99 - DC FAN, VAPO, 25MM, 13000RPM, 5VDC
tariffCode: 0
euEccn: NLR
Stromanschluss: 2 Lead Wires
rohsCompliant: YES
hazardous: false
rohsPhthalatesCompliant: YES
Art des Lagers: Vapo Bearing
Nennleistung: 580mW
isCanonical: Y
IP-Schutzart: -
Luftstrom - m3/min: -
Nennstrom: 115mA
Außentiefe: 6mm
Geräuschentwicklung: 24.8dBA
Luftstrom - CFM: 3cu.ft/min
SVHC: No SVHC (27-Jun-2024)
Lüfterrahmen: Square
Produktpalette: DC Brushless M Series
productTraceability: No
Rahmengröße: 25mm
usEccn: EAR99
Versorgungsspannung, V DC: 5V
Nenndrehzahl: 13000rpm
directShipCharge: 25
Description: SUNON - MF25060V1-1000U-A99 - DC FAN, VAPO, 25MM, 13000RPM, 5VDC
tariffCode: 0
euEccn: NLR
Stromanschluss: 2 Lead Wires
rohsCompliant: YES
hazardous: false
rohsPhthalatesCompliant: YES
Art des Lagers: Vapo Bearing
Nennleistung: 580mW
isCanonical: Y
IP-Schutzart: -
Luftstrom - m3/min: -
Nennstrom: 115mA
Außentiefe: 6mm
Geräuschentwicklung: 24.8dBA
Luftstrom - CFM: 3cu.ft/min
SVHC: No SVHC (27-Jun-2024)
Lüfterrahmen: Square
Produktpalette: DC Brushless M Series
productTraceability: No
Rahmengröße: 25mm
usEccn: EAR99
Versorgungsspannung, V DC: 5V
Nenndrehzahl: 13000rpm
directShipCharge: 25
auf Bestellung 2 Stücke:
Lieferzeit 14-21 Tag (e)
| MF25060V1-1000U-A99 |
|
Hersteller: Sunon
Motor Fan 25x25x6mm
Motor Fan 25x25x6mm
auf Bestellung 2340 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 30+ | 13.33 EUR |
| 60+ | 12.59 EUR |
| 120+ | 11.76 EUR |
| 270+ | 10.98 EUR |
| 510+ | 10.61 EUR |
