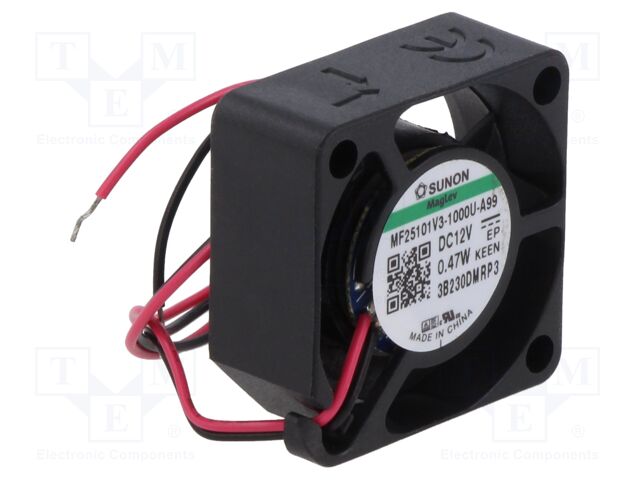

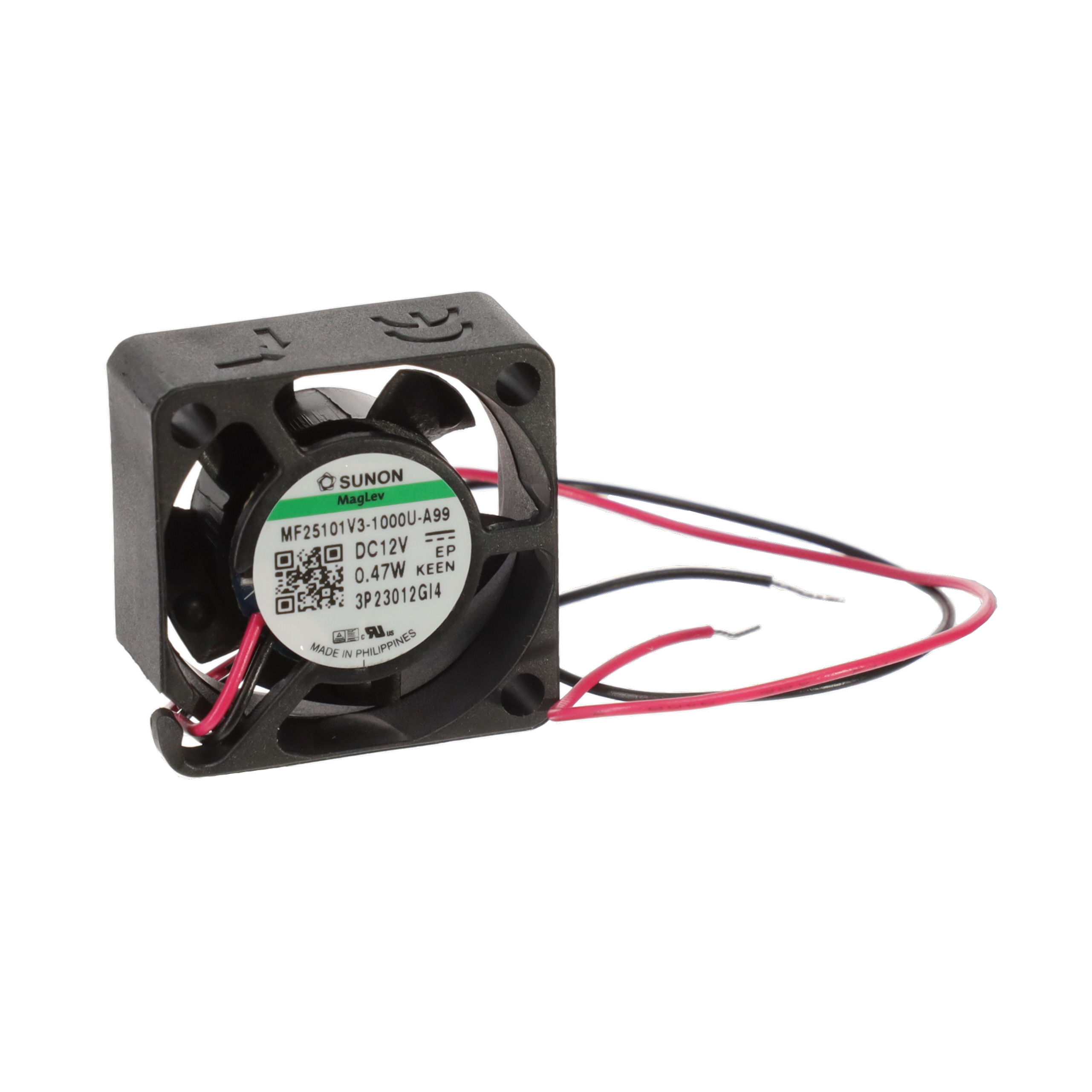

MF25101V3-1000U-A99 SUNON
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 25x25x10mm; 2.04m3/h; 24.8dBA; Vapo; 28AWG
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 8...13.8V
Fan dimensions: 25x25x10mm
Power consumption: 0.27W
Current rating: 22mA
Fan efficiency: 2.04m3/h
Noise level: 24.8dBA
Kind of Bearing: Vapo
Rotational rate/speed: 6000 (±20%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 1.5m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 1.27mm H2O
Wire size: 28AWG
Anzahl je Verpackung: 1 Stücke
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 25x25x10mm; 2.04m3/h; 24.8dBA; Vapo; 28AWG
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 8...13.8V
Fan dimensions: 25x25x10mm
Power consumption: 0.27W
Current rating: 22mA
Fan efficiency: 2.04m3/h
Noise level: 24.8dBA
Kind of Bearing: Vapo
Rotational rate/speed: 6000 (±20%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 1.5m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 1.27mm H2O
Wire size: 28AWG
Anzahl je Verpackung: 1 Stücke
auf Bestellung 996 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 10+ | 7.84 EUR |
| 11+ | 7.09 EUR |
| 50+ | 6.91 EUR |
| 100+ | 6.51 EUR |
| 200+ | 6.12 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MF25101V3-1000U-A99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 25x25x10mm; 2.04m3/h; 24.8dBA; Vapo; 28AWG, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 8...13.8V, Fan dimensions: 25x25x10mm, Power consumption: 0.27W, Current rating: 22mA, Fan efficiency: 2.04m3/h, Noise level: 24.8dBA, Kind of Bearing: Vapo, Rotational rate/speed: 6000 (±20%)rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: lead x2, Operating temperature: -10...70°C, Cable length: 1.5m, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 1.27mm H2O, Wire size: 28AWG, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote MF25101V3-1000U-A99 nach Preis ab 6.12 EUR bis 36.3 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MF25101V3-1000U-A99 | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 25x25x10mm; 2.04m3/h; 24.8dBA; Vapo; 28AWG Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 8...13.8V Fan dimensions: 25x25x10mm Power consumption: 0.27W Current rating: 22mA Fan efficiency: 2.04m3/h Noise level: 24.8dBA Kind of Bearing: Vapo Rotational rate/speed: 6000 (±20%)rpm Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x2 Operating temperature: -10...70°C Cable length: 1.5m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 1.27mm H2O Wire size: 28AWG |
auf Bestellung 996 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
MF25101V3-1000U-A99 | Hersteller : Sunon |
 DC Fans Axial Fan, 25x25x10mm, 12VDC, 1.2CFM, 0.05"H2O, Vapo, Wire, Auto Restart |
auf Bestellung 363 Stücke: Lieferzeit 14-28 Tag (e) |
|
||||||||||||||||
| MF25101V3-1000U-A99 | Hersteller : Sunon | MF25101V3-1000U-A99 |
auf Bestellung 996 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
| MF25101V3-1000U-A99 | Hersteller : Sunon Fans |
Description: Thermal Products Packaging: Bulk Features: Auto Restart Voltage - Rated: 12VDC Size / Dimension: Square - 25mm L x 25mm H Bearing Type: Vapo-Bearing™ RPM: 6000 RPM Air Flow: 1.2 CFM (0.034m³/min) Width: 10.00mm Termination: 2 Wire Leads Approval Agency: CE, cURus, TUV Fan Type: Tubeaxial Noise: 4.8dB(A) Static Pressure: 0.050 in H2O (12.4 Pa) Power (Watts): 210 mW |
auf Bestellung 180 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||||
| MF25101V3-1000U-A99 | Hersteller : Sunon | MF25101V3-1000U-A99 |
auf Bestellung 350 Stücke: Lieferzeit 14-21 Tag (e) |
|
