Produkte > SUNON > MF30101V1-1000U-A99

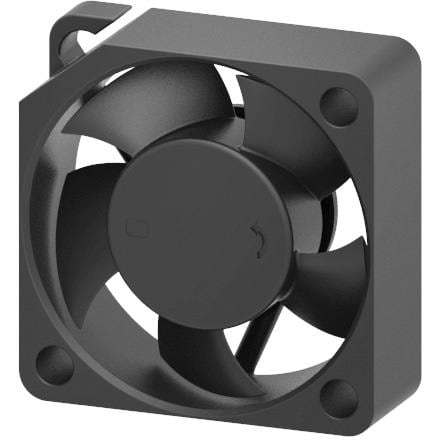

MF30101V1-1000U-A99

MF30101V1-1000U-A99 SUNON


pVersion=0046&contRep=ZT&docId=005056AB82531ED9A285EA515FC0D820&compId=MF30101V1-A99-A.pdf?ci_sign=4d2f9b29c4f9426c9c9a31535f92a04a5cf9386e Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 30x30x10mm; 9.3m3/h; 23dBA; Vapo; 11500rpm
Operating temperature: -10...70°C
Leads: leads x2
Operating voltage: 6...13.8V DC
Type of fan: DC
Fan dimensions: 30x30x10mm
Fan motor: brushless DC
Impeller material: thermoplastic
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: Vapo
Fan efficiency: 9.3m3/h
Static pressure: 6.35mm H2O
Noise level: 23dBA
Rotational rate/speed: 11500rpm
Power consumption: 0.66W
Wire size: 28AWG
Lead length: 0.145m
Additional functions: autorestart
Kind of fan: axial
Min. insulation resistance: 10MΩ
Enclosure material: thermoplastic
Current rating: 55mA
Supply voltage: 12V DC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2634 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
10+7.46 EUR
11+6.66 EUR
40+6.12 EUR
200+5.31 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details MF30101V1-1000U-A99 SUNON

Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 30x30x10mm; 9.3m3/h; 23dBA; Vapo; 11500rpm, Operating temperature: -10...70°C, Leads: leads x2, Operating voltage: 6...13.8V DC, Type of fan: DC, Fan dimensions: 30x30x10mm, Fan motor: brushless DC, Impeller material: thermoplastic, Flammability rating: UL94V-0, Insulation class: A, Kind of Bearing: Vapo, Fan efficiency: 9.3m3/h, Static pressure: 6.35mm H2O, Noise level: 23dBA, Rotational rate/speed: 11500rpm, Power consumption: 0.66W, Wire size: 28AWG, Lead length: 0.145m, Additional functions: autorestart, Kind of fan: axial, Min. insulation resistance: 10MΩ, Enclosure material: thermoplastic, Current rating: 55mA, Supply voltage: 12V DC, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote MF30101V1-1000U-A99 nach Preis ab 5.31 EUR bis 17.62 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
MF30101V1-1000U-A99 MF30101V1-1000U-A99 Hersteller : SUNON pVersion=0046&contRep=ZT&docId=005056AB82531ED9A285EA515FC0D820&compId=MF30101V1-A99-A.pdf?ci_sign=4d2f9b29c4f9426c9c9a31535f92a04a5cf9386e Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 30x30x10mm; 9.3m3/h; 23dBA; Vapo; 11500rpm
Operating temperature: -10...70°C
Leads: leads x2
Operating voltage: 6...13.8V DC
Type of fan: DC
Fan dimensions: 30x30x10mm
Fan motor: brushless DC
Impeller material: thermoplastic
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: Vapo
Fan efficiency: 9.3m3/h
Static pressure: 6.35mm H2O
Noise level: 23dBA
Rotational rate/speed: 11500rpm
Power consumption: 0.66W
Wire size: 28AWG
Lead length: 0.145m
Additional functions: autorestart
Kind of fan: axial
Min. insulation resistance: 10MΩ
Enclosure material: thermoplastic
Current rating: 55mA
Supply voltage: 12V DC
auf Bestellung 2634 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
10+7.46 EUR
11+6.66 EUR
40+6.12 EUR
200+5.31 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
MF30101V1-1000U-A99 MF30101V1-1000U-A99 Hersteller : Sunon (D03033580G-01)-1.pdf DC Fans Axial Fan, 30x30x10mm, 12VDC, 5.5CFM, 0.25"H2O, Vapo, Wire, Auto Restart
auf Bestellung 558 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+14.27 EUR
10+13.22 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MF30101V1-1000U-A99 MF30101V1-1000U-A99 Hersteller : Sunon Fans (D03033580G-01)-1.pdf Description: FAN AXIAL 30X10MM 12VDC WIRE
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 12VDC
Size / Dimension: Square - 30mm L x 30mm H
Bearing Type: Vapo-Bearing™
RPM: 11500 RPM
Air Flow: 5.5 CFM (0.154m³/min)
Width: 10.00mm
Weight: 0.018 lb (8.16 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: cURus, TUV
Fan Type: Tubeaxial
Noise: 23.0dB(A)
Static Pressure: 0.250 in H2O (62.3 Pa)
Part Status: Active
Power (Watts): 660 mW
auf Bestellung 3239 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+17.62 EUR
10+14.52 EUR
25+13.33 EUR
50+12.47 EUR
100+11.76 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MF30101V1-1000U-A99 Hersteller : Sunon (D03033580G-01)-1.pdf DC Fan Axial Vapo Bearing 12V 6V to 13.8V 5.5CFM 23dB 30 X 30 X 10mm High Speed
auf Bestellung 2634 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
12+12.38 EUR
14+10.62 EUR
40+9.27 EUR
200+7.49 EUR
Mindestbestellmenge: 12
Im Einkaufswagen  Stück im Wert von  UAH
MF30101V1-1000U-A99
Produktcode: 178598
zu Favoriten hinzufügen Lieblingsprodukt

(D03033580G-01)-1.pdf Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Produkt ist nicht verfügbar
